8K60 HDMI Audio De-embedder
MCVT-MC01
8K60 HDMI Audio De-embedder (MCVT-MC01) is a MEGRA MATRIX converter that adapts one video or audio format so mixed equipment can connect.
It is for rooms that mix HDMI with ARC, eARC, SDI, or USB capture.
Key facts from this model: Converter; 8K; HDMI 2.1; Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit.
- HDMI 2.1 and HDCP 2.3 compliant
- Support 48Gbps FRL and 18Gbps TMDS video bandwidth
- Support video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
- HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported
- HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
- LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS |
| Video Resolution | Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8-bit，10-bit, 12-bit |
| Audio Formats | HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD AUDIO BREAKOUT: OPTICAL OUT: PCM 2.0CH, Dolby, DTS 5.1CH L/R OUT: PCM 2.0CH |
| HDR | HDR, HDR 10, HDR 10+, Dolby Vision, HLG |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |

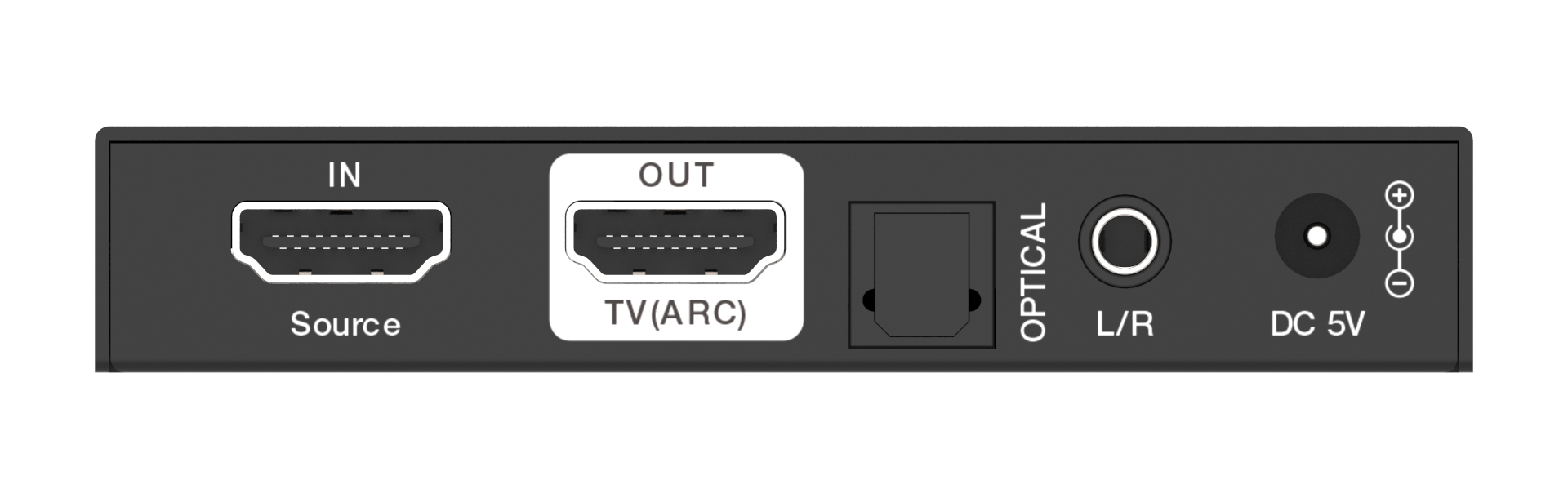

| Connection | |
| Inpu | 1 × Source IN [HDMI Type A, 19-pin female] |
| Output | 1 × TV(ARC) OUT [HDMI Type A, 19-pin female] 1 × L/R [3.5mm Stereo mini-jack] 1 × OPTICAL [S/PDIF, female] |
| Control | 1 × SERVICE [USB Type C, Update port |
| Mechanical | |
| Housing | Metal Enclosure |
| Colo | Black |
| Dimension | 95mm [W] × 68mm [D] × 18mm [H] |
| Weight | 178g |
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified） |
| Power Consumptio | 4W（Max） |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage Temperatur | -4°F - 140°F / -20°C - 60°C |
| Relative Humidit | 20 - 90% RH (non-condensing) |
Questions about this model
What job is 8K60 HDMI Audio De-embedder for?
8K60 HDMI Audio De-embedder is a MEGRA MATRIX converter. It adapts one video or audio format so mixed equipment can connect.
What are the key facts and limits of MCVT-MC01?
MCVT-MC01 is listed with: Converter; 8K; HDMI 2.1; Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit. Full connections are in the specification table on this page.
When should I choose a converter instead of a matrix, switcher, or extender?
Choose a converter only when connectors or formats do not match — HDMI with ARC/eARC, SDI, or USB capture. It is a format bridge. It does not replace a matrix (any-to-any), a switcher (source select), a splitter (one-to-many), or an extender (distance). Buy this family for the in/out pair; buy the other family for the room job.
What should I send for a correct quote on MCVT-MC01?
WhatsApp MEGRA with model MCVT-MC01, the client name, and the location. Add room type and I/O or run length if you already know them.
What still needs confirming for MCVT-MC01?
Send the source type and the destination type on WhatsApp, plus the model code, so the format match can be checked against this sheet.
