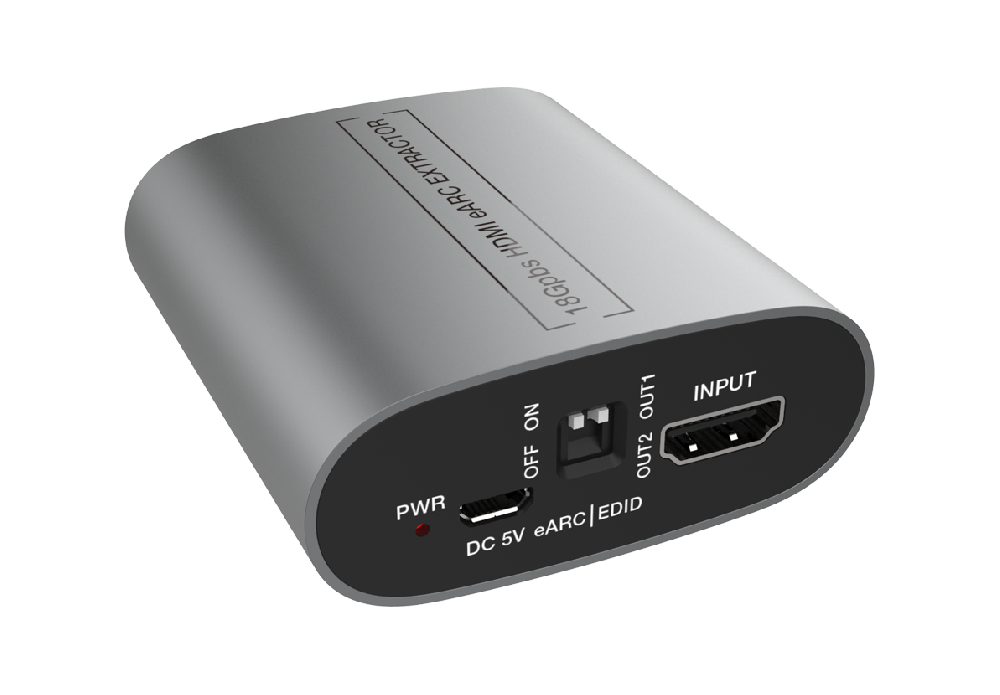

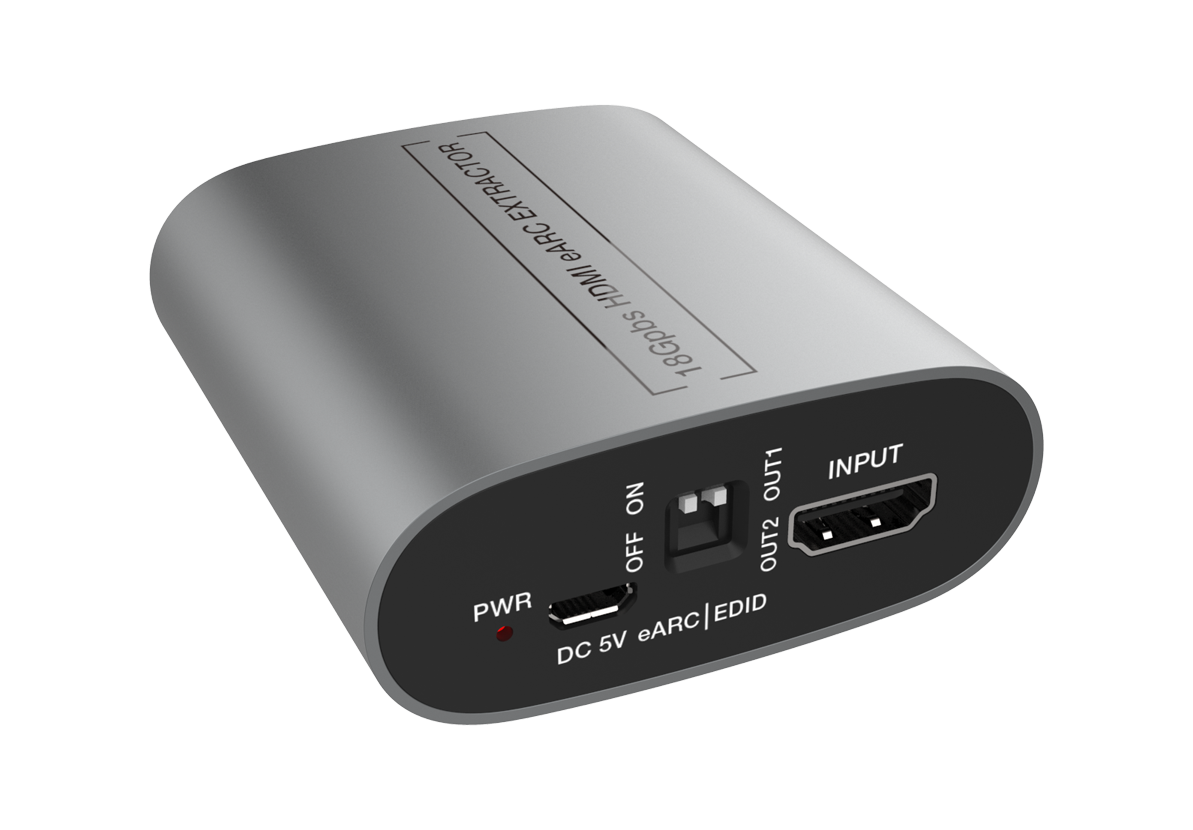

HDMI eARC Audio Extractor
MCVT-MB08
HDMI eARC Audio Extractor (MCVT-MB08) is a MEGRA MATRIX converter that adapts one video or audio format so mixed equipment can connect.
It is for rooms that mix HDMI with ARC, eARC, SDI, or USB capture.
Key facts from this model: 1 in / 2 out; 4K; HDMI 2.0b; Up to 4k2k@60Hz 4:4:4.
- HDMI 2.0b and HDCP 2.3 / 1.x compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4
- Support VESA format up to QSXGA@60Hz
- HDR, HDR10, HDR10+, Dolby Vision pass-through
- Support PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby digital plus, Dolby True-HD, DolbyAtmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.3 / 1.x |
| Video Bandwidth | 18 Gbps |
| Video Resolution | Up to 4k2k@60Hz 4:4:4 |
| Color Depth | 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0) |
| Color Space | RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 |
| HDMI Audio Formats | PCM 2.0, LPCM 5.1 / 7.1,Dolby Digital, Dolby Digital plus,Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA,DTS HD Master, DTS:X |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connections | |
| Input | 1x HDMI Type A [19-pin female] |

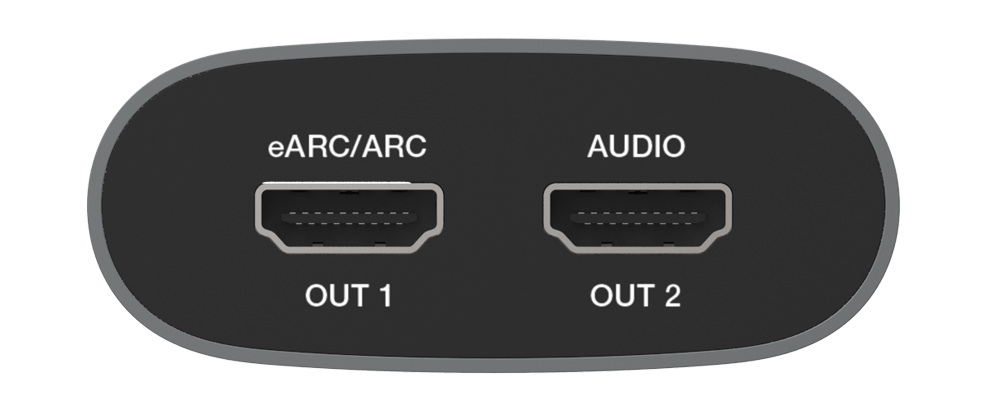

| Output | 2x HDMI Type A [19-pin female] |
| Mechanical | |
| Housing | Aluminium Enclosure |
| Color | Silver |
| Dimensions | 65mm[W] x 70mm[D] x 27mm[H] |
| Weight | 83g |
| Power Supply | USB 5V / 500mA |
| Power Consumption | 1.75W (Max) |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is HDMI eARC Audio Extractor for?
HDMI eARC Audio Extractor is a MEGRA MATRIX converter. It adapts one video or audio format so mixed equipment can connect.
What are the key facts and limits of MCVT-MB08?
MCVT-MB08 is listed with: 1 in / 2 out; 4K; HDMI 2.0b; Up to 4k2k@60Hz 4:4:4. Full connections are in the specification table on this page.
When should I choose a converter instead of a matrix, switcher, or extender?
Choose a converter only when connectors or formats do not match — HDMI with ARC/eARC, SDI, or USB capture. It is a format bridge. It does not replace a matrix (any-to-any), a switcher (source select), a splitter (one-to-many), or an extender (distance). Buy this family for the in/out pair; buy the other family for the room job.
What should I send for a correct quote on MCVT-MB08?
WhatsApp MEGRA with model MCVT-MB08, the client name, and the location. Add room type and I/O or run length if you already know them.
What still needs confirming for MCVT-MB08?
Send the source type and the destination type on WhatsApp, plus the model code, so the format match can be checked against this sheet.
