HDMI ARC Audio Decoder/Bridge
MCVT-MB06S
HDMI ARC Audio Decoder/Bridge (MCVT-MB06S) is a MEGRA MATRIX converter that adapts one video or audio format so mixed equipment can connect.
It is for rooms that mix HDMI with ARC, eARC, SDI, or USB capture.
Key facts from this model: 1 in / 1 out.
- Input: HDMI x 1; Output: 3.5mm L/R x 1, HDMI x 1
- ARC Enabled: Extract audio signal from ARC enabled HDTV to 2-channel analog stereo audio output or HDMI digital audio output (soundbar)
- Support Dolby 5.1/DTS 5.1 audio down-mixingto 2-channel stereo audio output
- Support CEC function (TV remote can control the output volume)
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Audio Formats | PCM 2.0, Dolby 5.1, DTS 5.1 |
| L/R Audio Formats | Analog Stereo 2CH |
| Connections | |

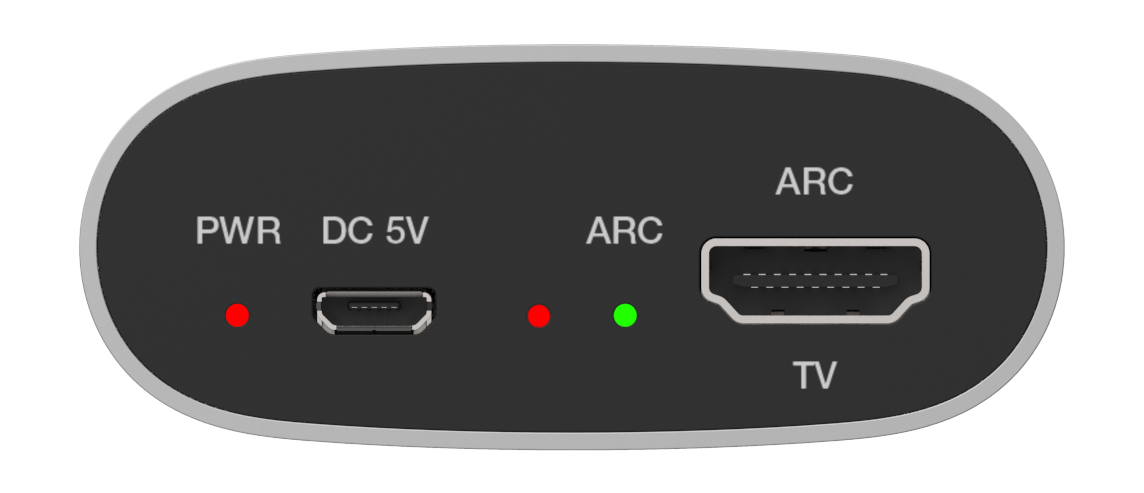

| Input | 1x HDMI IN [Type A 19-pin female] |

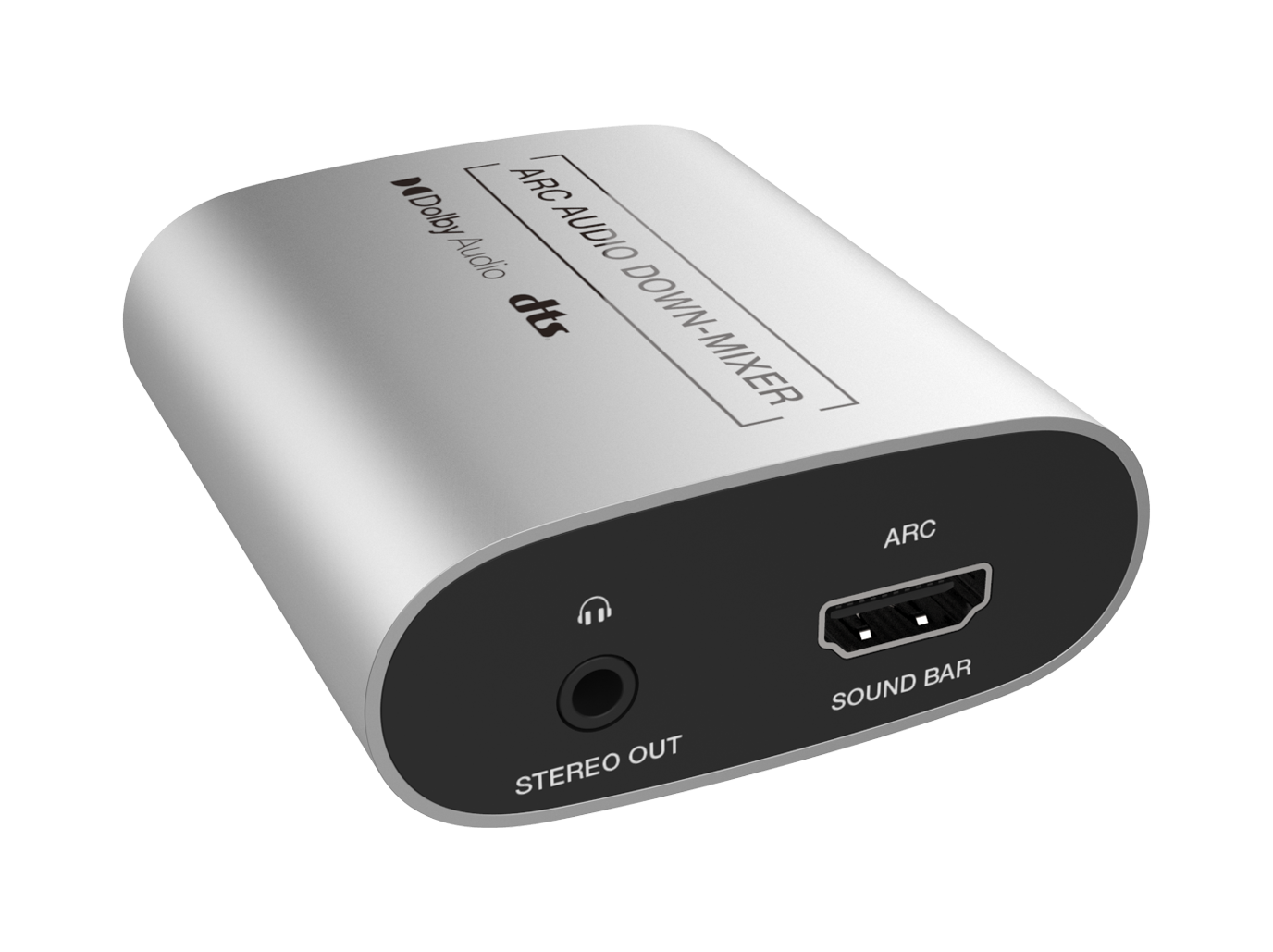

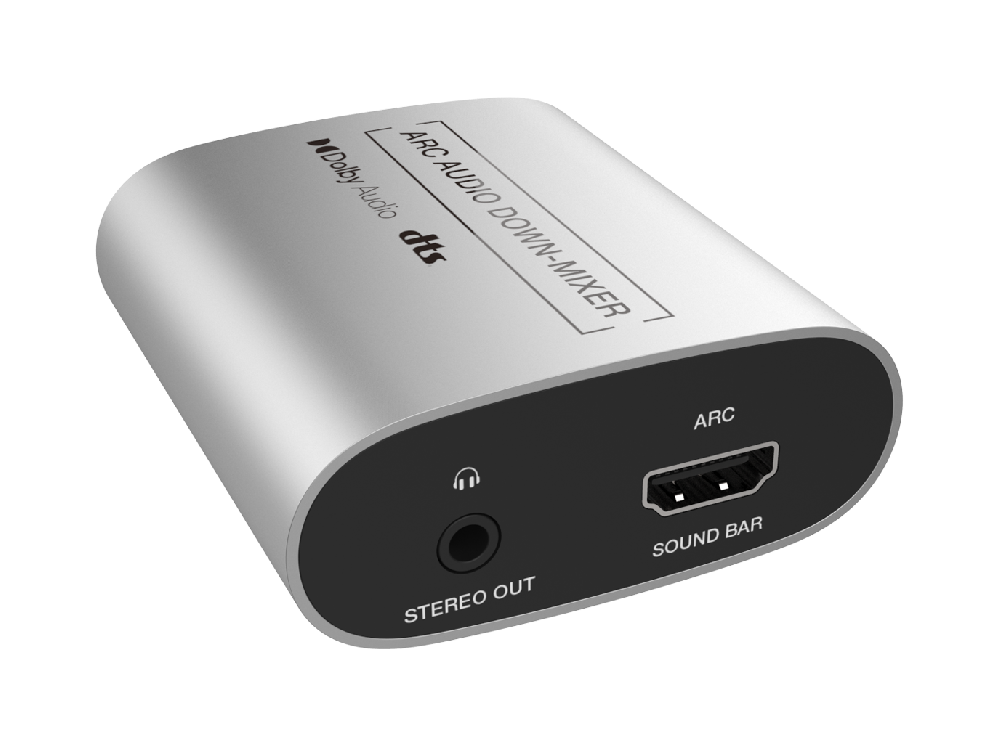

| Outputs | 1x HDMI OUT [Type A 19-pin female] 1x STEREO OUT [3.5mm L/R female] |
| Mechanical | |
| Housing | Plastic Enclosure |
| Color | Silver |
| Dimensions | 70mm[W] x 65mm[D] x 27mm[H] |
| Weight | 80g |
| Power Supply | USB 5V/1A |
| Power Consumption | 1.56W (Max) |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is HDMI ARC Audio Decoder/Bridge for?
HDMI ARC Audio Decoder/Bridge is a MEGRA MATRIX converter. It adapts one video or audio format so mixed equipment can connect.
What are the key facts and limits of MCVT-MB06S?
MCVT-MB06S is listed with: 1 in / 1 out. Full connections are in the specification table on this page.
When should I choose a converter instead of a matrix, switcher, or extender?
Choose a converter only when connectors or formats do not match — HDMI with ARC/eARC, SDI, or USB capture. It is a format bridge. It does not replace a matrix (any-to-any), a switcher (source select), a splitter (one-to-many), or an extender (distance). Buy this family for the in/out pair; buy the other family for the room job.
What should I send for a correct quote on MCVT-MB06S?
WhatsApp MEGRA with model MCVT-MB06S, the client name, and the location. Add room type and I/O or run length if you already know them.
What still needs confirming for MCVT-MB06S?
Send the source type and the destination type on WhatsApp, plus the model code, so the format match can be checked against this sheet.
