4K60 HDMI Audio Inserter
MCVT-MB03
4K60 HDMI Audio Inserter (MCVT-MB03) is a MEGRA MATRIX converter that adapts one video or audio format so mixed equipment can connect.
It is for rooms that mix HDMI with ARC, eARC, SDI, or USB capture.
Key facts from this model: 1 in / 1 out; 4K60; HDMI 2.0b.
- Embeds multi-channel optical (SPDIF) or Line analog audio to HDMI output
- Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
- Analog audio supports PCM2.0
- HDMI 2.0b (18Gbps), HDCP 2.2 and DVI 1.0 compliant
- Video resolutions up to 4K2K@50/60Hz (YUV444)
- Supports HDMI High Bit Rate(HBR) audio pass through
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolution | up to 4K2K@50/60Hz(YUV4:4:4), 4K2K@30Hz, 1080P@120Hz and 1080P3D@60Hz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:0 |
| Color Depth | 10-bit, 12-bit |
| HDMI Audio Formats | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Optical Audio Formats | LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH |
| L/R Audio Formats | Analog Stereo 2CH |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |

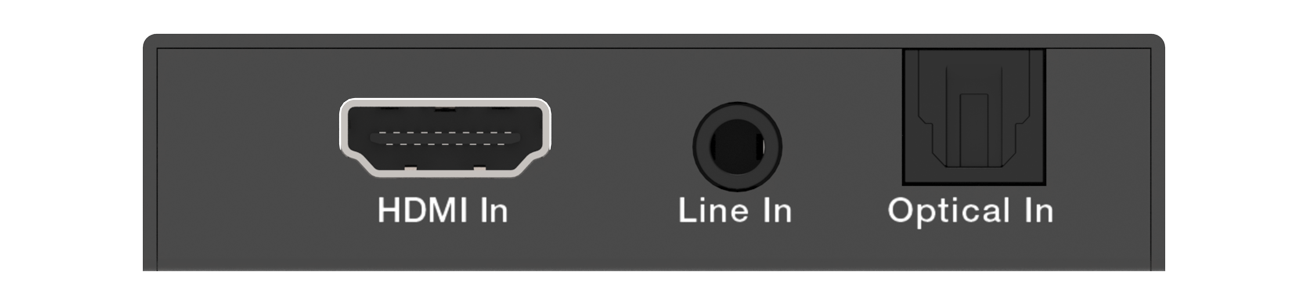

| Input | 1x HDMI Type A [19-pin female] 1x Line In [3.5mm Stereo Mini-jack] 1x Optical In [S/PDIF] |

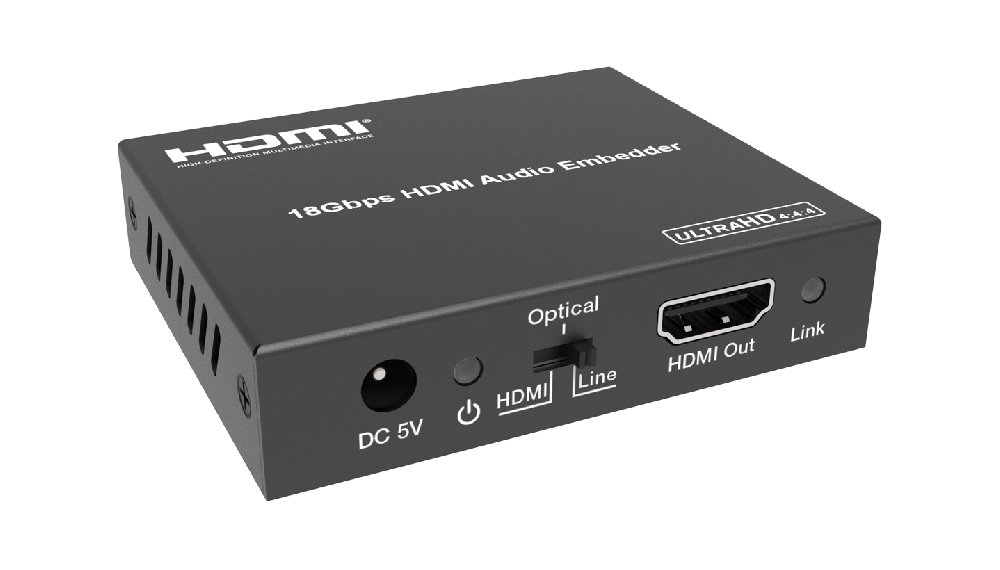

| Output | 1x HDMI Type A [19-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 73.5mm [W] x 60.7mm [D] x 17mm [H] |
| Weight | 122g |
| Power Supply | Input: AC100 - 240V 50/60Hz Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 1.25W |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 4K60 HDMI Audio Inserter for?
4K60 HDMI Audio Inserter is a MEGRA MATRIX converter. It adapts one video or audio format so mixed equipment can connect.
What are the key facts and limits of MCVT-MB03?
MCVT-MB03 is listed with: 1 in / 1 out; 4K60; HDMI 2.0b. Full connections are in the specification table on this page.
When should I choose a converter instead of a matrix, switcher, or extender?
Choose a converter only when connectors or formats do not match — HDMI with ARC/eARC, SDI, or USB capture. It is a format bridge. It does not replace a matrix (any-to-any), a switcher (source select), a splitter (one-to-many), or an extender (distance). Buy this family for the in/out pair; buy the other family for the room job.
What should I send for a correct quote on MCVT-MB03?
WhatsApp MEGRA with model MCVT-MB03, the client name, and the location. Add room type and I/O or run length if you already know them.
What still needs confirming for MCVT-MB03?
Send the source type and the destination type on WhatsApp, plus the model code, so the format match can be checked against this sheet.
