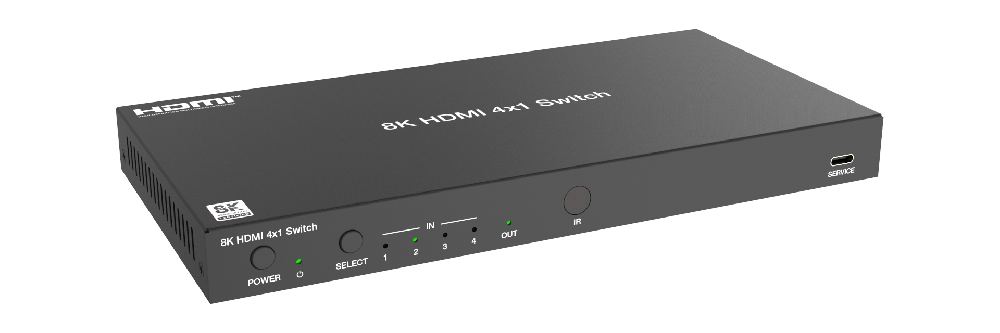

8K HDMI 4x1 Switcher
MSPX-SWC41AP
8K HDMI 4x1 Switcher (MSPX-SWC41AP) is a MEGRA MATRIX switcher that selects one of several sources for a single display.
It is for rooms that share one display among several sources — podiums, huddle rooms, reception desks, and lecture lecterns.
Key facts from this model: 4 in / 1 out; 8K; HDMI 2.1.
- Video resolution up to 8K60 YCbCr 4:2:0 12bit, 8K30 RGB/YCbCr 4:4:4 12bit or 4K120 RGB/YCbCr 4:4:4 12bit, as specified in HDMI 2.1
- HDCP 2.3 compliant
- HDR, HDR10, HDR10+, Dolby Vision, ALLM/VRR pass-through
- HDMI audio formats pass-through: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- Digital and analog audio de-embedding (analog audio output with gain control)
- Auto or manual switching mode
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 48Gbps |
| Audio Latency | No Latency |
| Video Latency | No Latency |
| Video Resolution | Up to 8K60 YCbCr 4:2:0 12bit, 8K30 RGB/YCbCr 4:4:4 12bit or 4K120 RGB/YCbCr 4:4:4 12bit |
| Color Depth | 8/10/12-bit |
| Color Space | RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| IR Level | 12Vp-p |
| IR Frequency | Wideband 20K-60KHz |
| Audio Formats | HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Audio de-embedding output: Optical: Up to LPCM/Dolby/DTS 5.1CH Analog: Only LPCM 2CH |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connections | |

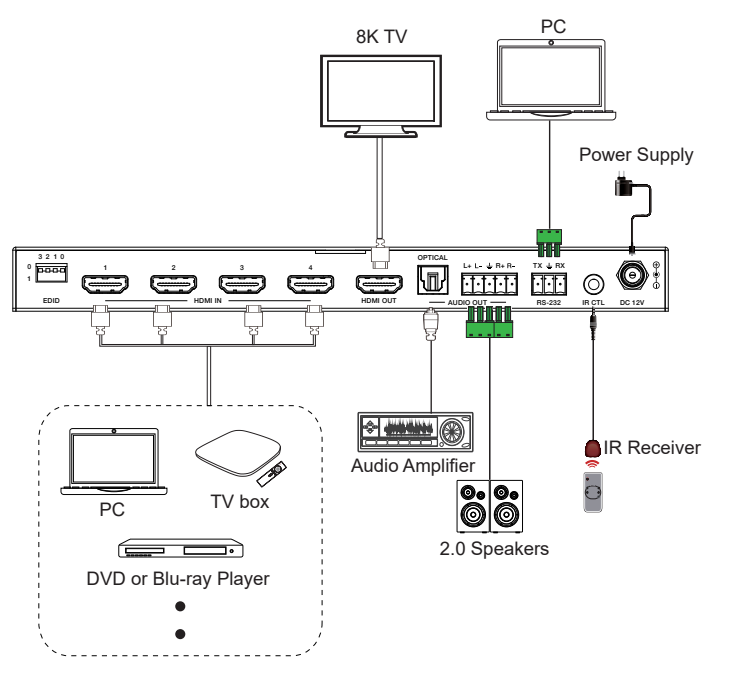

| Input Port | 4x HDMI IN [Type A, 19-pin female] |
| Output Ports | 1x HDMI OUT [Type A, 19-pin female] 1x OPTICAL AUDIO OUT [S/PDIF, female] 1x L/R AUDIO OUT [5pin-3.5mm Phoenix connector] |
| Control | 1x RS-232 [3pin-3.5mm Phoenix connector] 1x IR CTL [3.5mm stereo mini-jack] 1x SERVICE [USB Type C, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Silkscreen Color | Black |
| Dimensions | 220mm [W] × 110mm [D] × 21.5mm [H] |
| Weight | 595g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 5.4W (Max） |
| Operation Temperature | -10°C ~ 45°C / 14°F ~ 113°F |
| Storage temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 - 90% RH (no condensation) |
| Recommended HDMI Cable | |
| Video Resolution | 8K / 4K60 / 1080P |
| HDMI Cable Type | Ultra HDMI 2.1 / HDMI 2.0 / HDMI 1.4 |
| HDMI Cable Length (HDMI IN / OUT) | 2m/6.6ft / 8m/26ft / 15m/49ft |
Questions about this model
What job is 8K HDMI 4x1 Switcher for?
8K HDMI 4x1 Switcher is a MEGRA MATRIX switcher. It selects one of several sources for a single display.
What are the key facts and limits of MSPX-SWC41AP?
MSPX-SWC41AP is listed with: 4 in / 1 out; 8K; HDMI 2.1. Full connections are in the specification table on this page.
When should I choose a switcher instead of a matrix or splitter?
Choose a switcher when several sources share one display. A matrix is for several screens that need different sources at the same time. A splitter is the opposite job: one source copied to many screens. An extender only lengthens one path. A converter does not select among sources.
What should I send for a correct quote on MSPX-SWC41AP?
WhatsApp MEGRA with model MSPX-SWC41AP, the client name, and the location. Add room type and I/O or run length if you already know them.
Will this switcher feed several displays with different sources?
No. A switcher sends the selected source to one output path. Independent pictures on several screens need a matrix.
