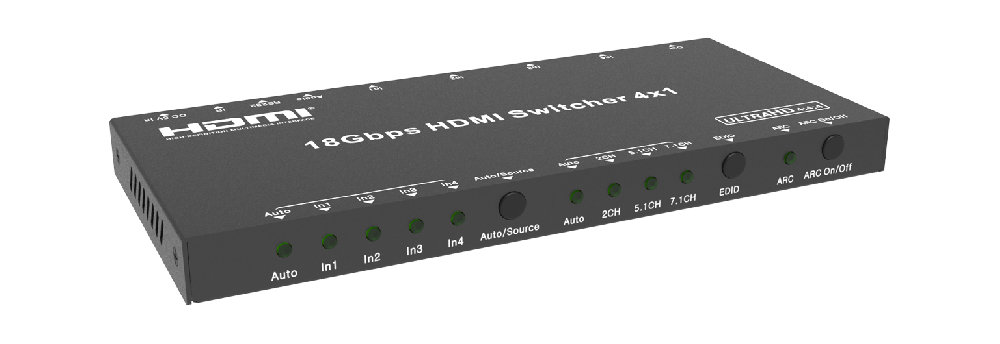

4x1 4K60 HDMI Switcher
MSPX-B41A
4x1 4K60 HDMI Switcher (MSPX-B41A) is a MEGRA MATRIX switcher that selects one of several sources for a single display.
It is for rooms that share one display among several sources — podiums, huddle rooms, reception desks, and lecture lecterns.
Key facts from this model: 4 in / 1 out; 4K60.
- Compliant with HDMI 2.0a, DVI 1.0 standards.
- HDCP 2.2 and HDCP 1.4 compliant.
- Video formats up to 4Kx2K@60 and all HDMI 3D video formats.
- Support PCM, Dolby TrueHD, DTS-HD Master Audio up to 7.1CH
- Digital and analog audio output
- Support smart EDID management(Auto/2CH/5.1CH/7.1CH selectable)
For quote: model + client name + location
Specifications
| Technical | |
| Frequency Bandwidth | 18Gbps |

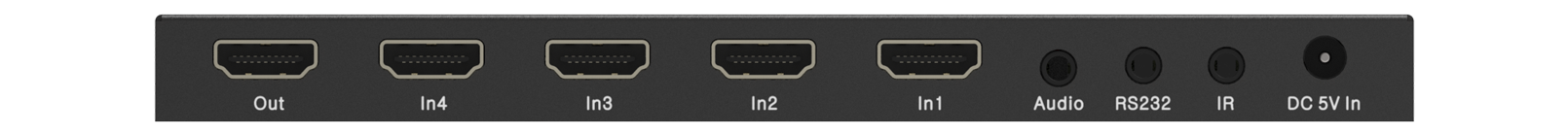

| Input Ports | 4 HDMI Female ports, 1 IR Receive port and 1 RS232 port |
| Output port | 1 HDMI Female port and 1 L/R & Optical port |
| HDMI Audio Output | PCM2.1/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby-TrueHD, DTS-HD |
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Dimensions | 180 (D) x 85 (W) x 11.6 (H) |
| Weight | 300g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | Max 2.5W |
| Operation Temperature | 14°F - 122°F / -10°C - 50°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
Questions about this model
What job is 4x1 4K60 HDMI Switcher for?
4x1 4K60 HDMI Switcher is a MEGRA MATRIX switcher. It selects one of several sources for a single display.
What are the key facts and limits of MSPX-B41A?
MSPX-B41A is listed with: 4 in / 1 out; 4K60. Full connections are in the specification table on this page.
When should I choose a switcher instead of a matrix or splitter?
Choose a switcher when several sources share one display. A matrix is for several screens that need different sources at the same time. A splitter is the opposite job: one source copied to many screens. An extender only lengthens one path. A converter does not select among sources.
What should I send for a correct quote on MSPX-B41A?
WhatsApp MEGRA with model MSPX-B41A, the client name, and the location. Add room type and I/O or run length if you already know them.
Will this switcher feed several displays with different sources?
No. A switcher sends the selected source to one output path. Independent pictures on several screens need a matrix.
