4x1 8K HDMI Switcher (Audio Breakout)
MSPX-SWC41A
4x1 8K HDMI Switcher (Audio Breakout) (MSPX-SWC41A) is a MEGRA MATRIX switcher that selects one of several sources for a single display.
It is for rooms that share one display among several sources — podiums, huddle rooms, reception desks, and lecture lecterns.
Key facts from this model: 4 in / 1 out; 8K; HDMI 2.1.
- HDMI 2.1 and HDCP 2.3 compliant
- Support 40Gbps video bandwidth
- Support video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
- VRR, FVA, ALLM supported
- Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
- Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 40Gbps |
| Video Resolution | Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit |
| Color Space | RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
| Color Depth | 8/10/12-bit |
| Audio Formats | HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos,DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Auido de-embedding output: Optical: LPCM/Dolby/DTS 5.1CH Analog: LPCM 2CH |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |

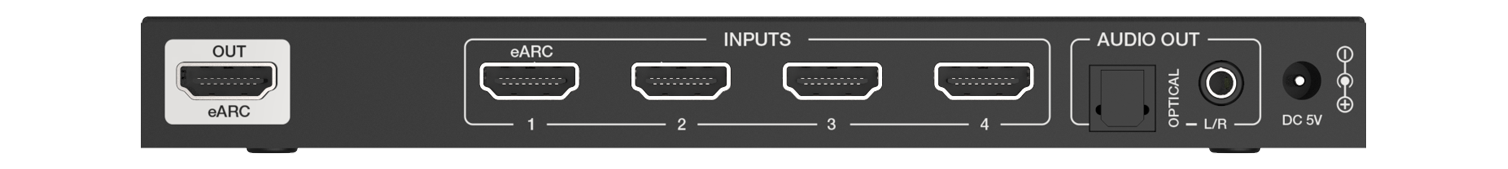

| Connections | |
| Input | 4x HDMI IN [Type A, 19-pin female] |
| Output | 1x HDMI OUT [Type A, 19-pin female] 1x OPTICAL [S/PDIF] 1x L/R [3.5mm Stereo Mini-jack] |
| Control | 1x SERVICE [Micro USB, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Silkscreen Color | Black |
| Dimensions | 200mm (W) x 85mm (D) x 20mm (H) |
| Weight | 407g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 1.5W (Max) |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 4x1 8K HDMI Switcher (Audio Breakout) for?
4x1 8K HDMI Switcher (Audio Breakout) is a MEGRA MATRIX switcher. It selects one of several sources for a single display.
What are the key facts and limits of MSPX-SWC41A?
MSPX-SWC41A is listed with: 4 in / 1 out; 8K; HDMI 2.1. Full connections are in the specification table on this page.
When should I choose a switcher instead of a matrix or splitter?
Choose a switcher when several sources share one display. A matrix is for several screens that need different sources at the same time. A splitter is the opposite job: one source copied to many screens. An extender only lengthens one path. A converter does not select among sources.
What should I send for a correct quote on MSPX-SWC41A?
WhatsApp MEGRA with model MSPX-SWC41A, the client name, and the location. Add room type and I/O or run length if you already know them.
Will this switcher feed several displays with different sources?
No. A switcher sends the selected source to one output path. Independent pictures on several screens need a matrix.
