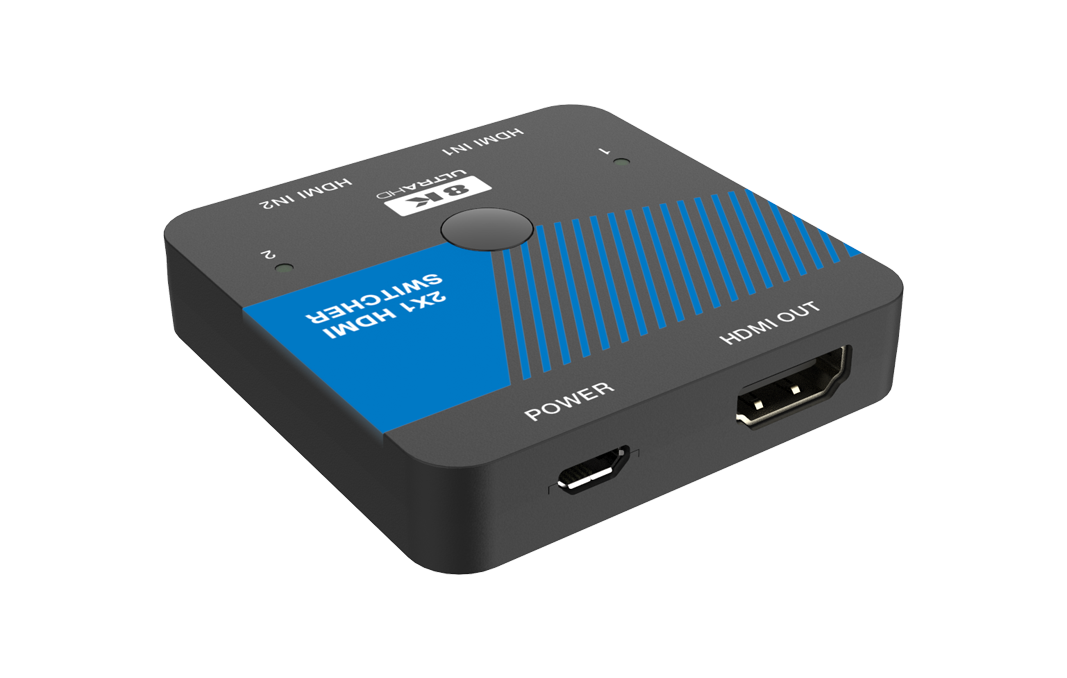

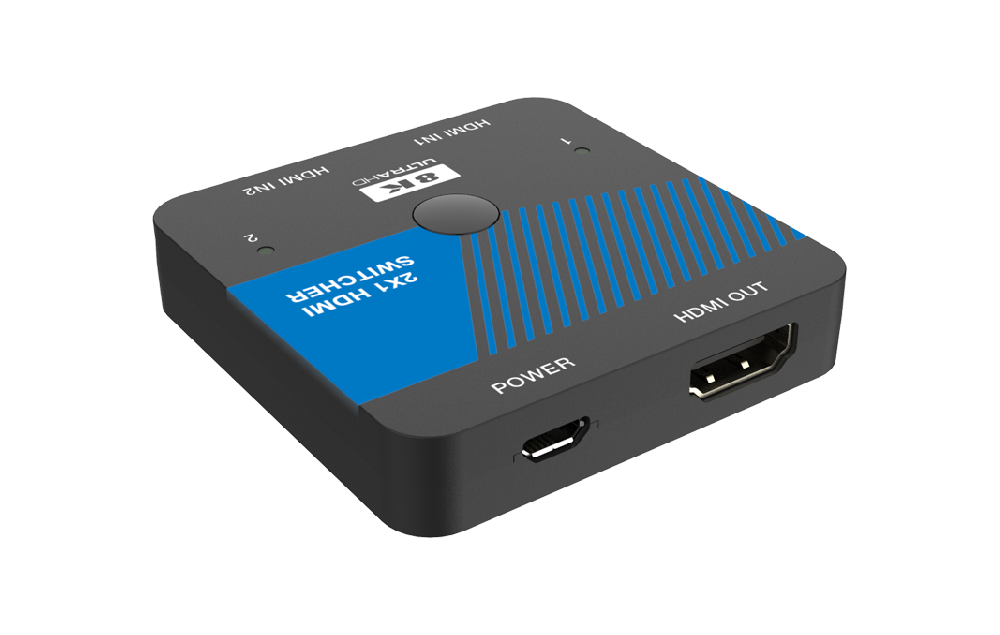

2x1 8K HDMI Switcher
MSPX-SWC21
2x1 8K HDMI Switcher (MSPX-SWC21) is a MEGRA MATRIX switcher that selects one of several sources for a single display.
It is for rooms that share one display among several sources — podiums, huddle rooms, reception desks, and lecture lecterns.
Key facts from this model: 2 in / 1 out; 8K; HDMI 2.1.
- HDMI 2.1 and HDCP 2.3 compliant
- Support 48Gbps video bandwidth
- 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit video support
- Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
- VRR,FVA,ALLM support
- Support HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 48Gbps |
| Video Resolution | Up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Color Depth | 8-bit,10-bit,12-bit |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Connections | |

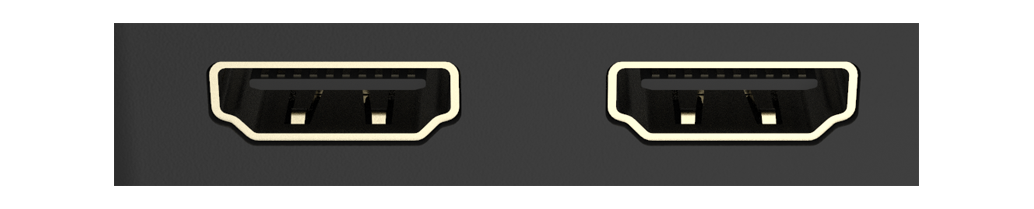

| Input ports | 2x HDMI IN [Type A, 19-pin female] |
| Output ports | 1x HDMI OUT [Type A, 19-pin female] |
| Mechanical | |
| Housing | Plastic Enclosure |
| Silkscreen Color | Black |
| Dimensions | 60mm (W) x 60mm (D) x 12mm (H) |
| Weight | 31g |
| Power Supply | USB 5V |
| Power Consumption | 1.25W (Max) |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 2x1 8K HDMI Switcher for?
2x1 8K HDMI Switcher is a MEGRA MATRIX switcher. It selects one of several sources for a single display.
What are the key facts and limits of MSPX-SWC21?
MSPX-SWC21 is listed with: 2 in / 1 out; 8K; HDMI 2.1. Full connections are in the specification table on this page.
When should I choose a switcher instead of a matrix or splitter?
Choose a switcher when several sources share one display. A matrix is for several screens that need different sources at the same time. A splitter is the opposite job: one source copied to many screens. An extender only lengthens one path. A converter does not select among sources.
What should I send for a correct quote on MSPX-SWC21?
WhatsApp MEGRA with model MSPX-SWC21, the client name, and the location. Add room type and I/O or run length if you already know them.
Will this switcher feed several displays with different sources?
No. A switcher sends the selected source to one output path. Independent pictures on several screens need a matrix.
