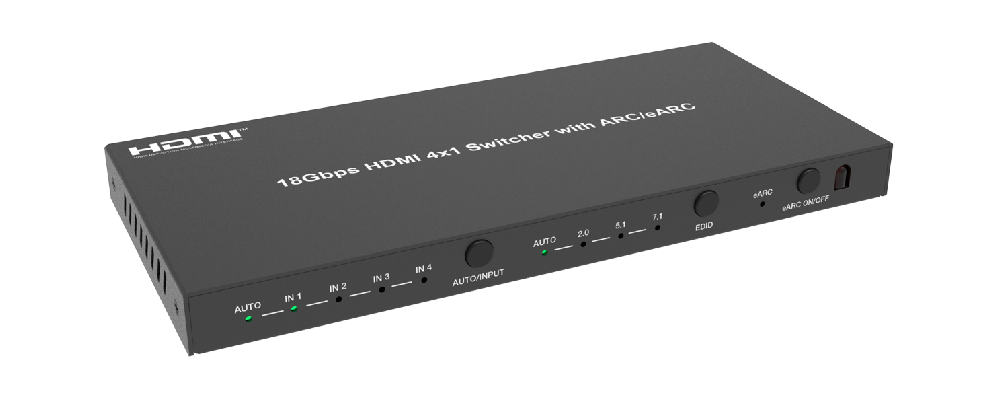

4x1 4K60 HDMI Switcher (ARC/eARC)
MSPX-SWB41AEU
4x1 4K60 HDMI Switcher (ARC/eARC) (MSPX-SWB41AEU) is a MEGRA MATRIX switcher that selects one of several sources for a single display.
It is for rooms that share one display among several sources — podiums, huddle rooms, reception desks, and lecture lecterns.
Key facts from this model: 4 in / 1 out; 4K60; HDMI 2.0; 4Kx2K@24/30Hz, 4K2K@60Hz.
- HDMI 2.0b, HDCP 2.2 / 1.x and DVI 1.0 compliant
- Video resolution up to 4K2K@60Hz RGB/YCbCr 4:4:4
- Support 18Gbps video bandwidth
- Support 3D, HDR, HDR10, HDR10+, Dolby Vision pass-through
- Supported audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

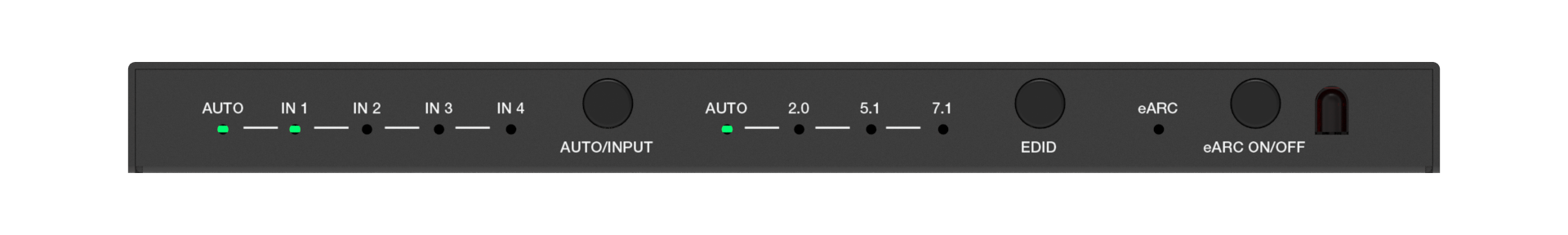

- Support auto/manual switching mode for input source
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 / 1.x |
| Video Bandwidth | 18 Gbps |
| Video Resolution | 4Kx2K@24/30Hz, 4K2K@60Hz |
| Color Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0) |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| HDR | Support HDR, HDR 10, HDR 10+ and Dolby vision |
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) |

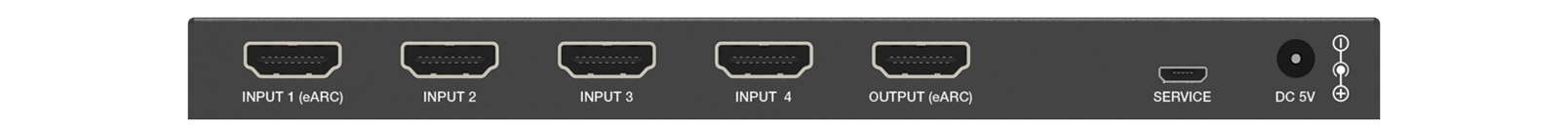

| Connections | |
| Input | 4x HDMI IN [Type A 19-pin female] |
| Output | 1x HDMI OUT [Type A 19-pin female] |
| Control | 1x SERVICE [Micro USB port] |
| Mechanical | |
| Housing | Plastic Enclosure |
| Color | Black |
| Dimensions | 182mm(W) x 84mm(D) x 15.5mm(H) |
| Weight | 370g |
| Power Supply | Input: AC100~240V 50/60Hz Output: DC 5V/1A |
| Power Consumption | 2W (Max) |
| Operation Temperature | 14°F - 122°F / -10°C - 50°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 4x1 4K60 HDMI Switcher (ARC/eARC) for?
4x1 4K60 HDMI Switcher (ARC/eARC) is a MEGRA MATRIX switcher. It selects one of several sources for a single display.
What are the key facts and limits of MSPX-SWB41AEU?
MSPX-SWB41AEU is listed with: 4 in / 1 out; 4K60; HDMI 2.0; 4Kx2K@24/30Hz, 4K2K@60Hz. Full connections are in the specification table on this page.
When should I choose a switcher instead of a matrix or splitter?
Choose a switcher when several sources share one display. A matrix is for several screens that need different sources at the same time. A splitter is the opposite job: one source copied to many screens. An extender only lengthens one path. A converter does not select among sources.
What should I send for a correct quote on MSPX-SWB41AEU?
WhatsApp MEGRA with model MSPX-SWB41AEU, the client name, and the location. Add room type and I/O or run length if you already know them.
Will this switcher feed several displays with different sources?
No. A switcher sends the selected source to one output path. Independent pictures on several screens need a matrix.
