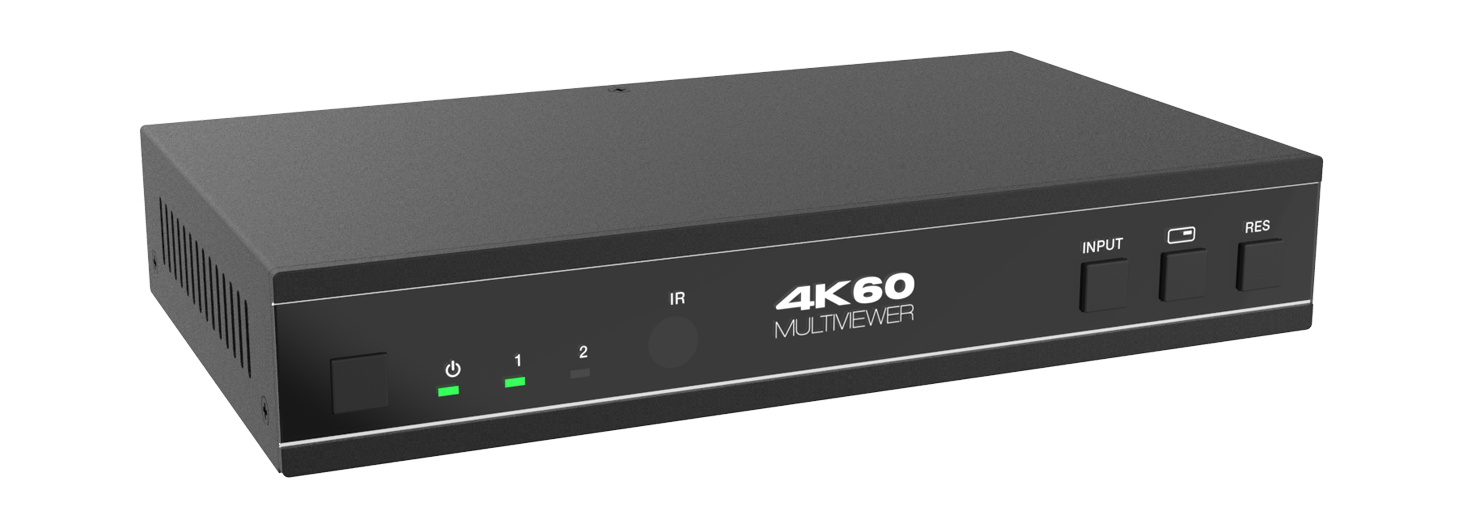

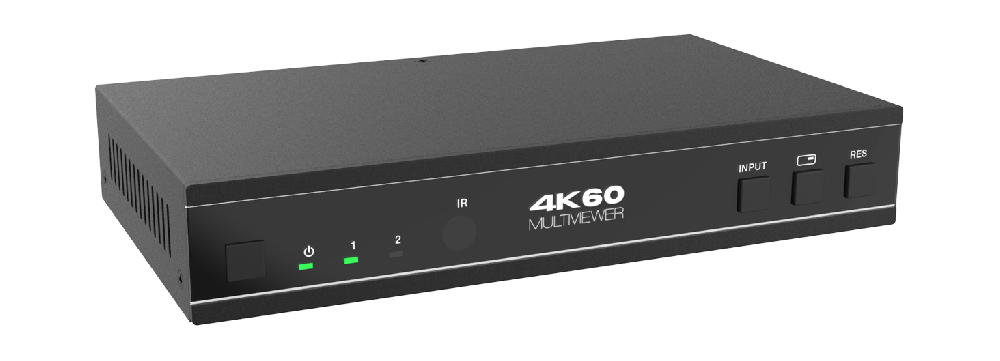

2x1 4K60 HDMI Multiview Switcher
MSPX-SWB21MV
2x1 4K60 HDMI Multiview Switcher (MSPX-SWB21MV) is a MEGRA MATRIX switcher that selects one of several sources for a single display.
It is for rooms that share one display among several sources — podiums, huddle rooms, reception desks, and lecture lecterns.
Key facts from this model: 2 in / 1 out; 4K60; HDMI 2.0b; Up to 4K2K@60 4:4:4.
- HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
- Support 18Gbps video bandwidth
- Input and output resolutions support up to 4K2K@60 4:4:4
- Support LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel
- Seamless switching between input channels and combined multiple images on single UHD monitor
- Up to 4 display modes: SINGLE, PIP, PBP (1), PBP (2)
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2/1.x |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@60 4:4:4 |
| IR Level | 5Vp-p |
| IR Frequency | 38KHz |
| Color Depth | 8bit |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Audio Formats | HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res Analog audio [3.5mm L/R]: PCM2.0; SPDIF (OPTICAL): Dolby Digital, DTS 5.1, PCM2.0. Note: It does not support HBR audio. |
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) |

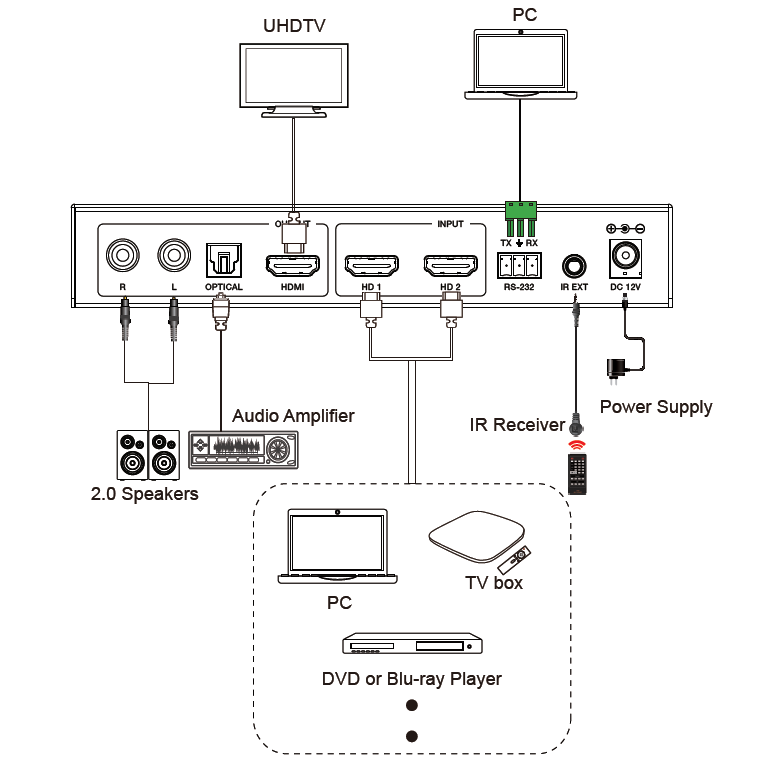

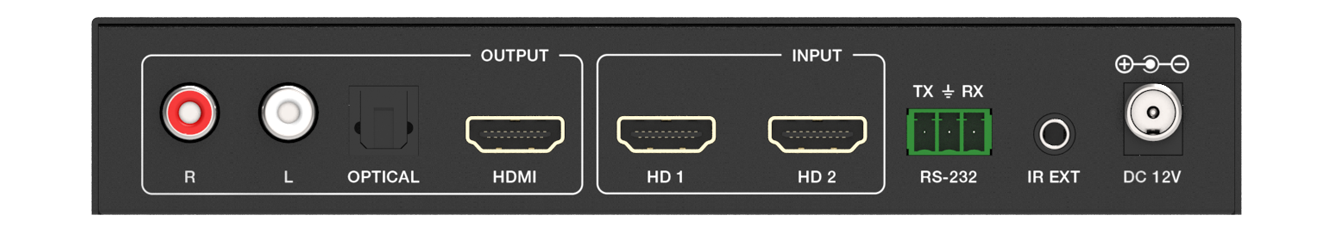

| Connections | |
| Input ports | 2x HDMI IN [Type A, 19-pin female] |
| Output ports | 1x HDMI OUT [Type A, 19-pin female] 1x L/R OUTPUT [RCA] 1x OPTICAL OUTPUT [S/PDIF] |
| Control ports | 1x RS-232 [3pin-3.81mm phoenix connector] 1x IR EXT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 175mm [W] x 100mm [D] x 30mm [H] |
| Weight | 497g |
| Power Supply | Input: AC 100 - 240V 50/60Hz Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | 4.56W (Max) |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 2x1 4K60 HDMI Multiview Switcher for?
2x1 4K60 HDMI Multiview Switcher is a MEGRA MATRIX switcher. It selects one of several sources for a single display.
What are the key facts and limits of MSPX-SWB21MV?
MSPX-SWB21MV is listed with: 2 in / 1 out; 4K60; HDMI 2.0b; Up to 4K2K@60 4:4:4. Full connections are in the specification table on this page.
When should I choose a switcher instead of a matrix or splitter?
Choose a switcher when several sources share one display. A matrix is for several screens that need different sources at the same time. A splitter is the opposite job: one source copied to many screens. An extender only lengthens one path. A converter does not select among sources.
What should I send for a correct quote on MSPX-SWB21MV?
WhatsApp MEGRA with model MSPX-SWB21MV, the client name, and the location. Add room type and I/O or run length if you already know them.
Does this switcher show more than one source at once?
MSPX-SWB21MV is listed with a multi-view function in the title. The specification table on this page is the limit — confirm the layout you need on WhatsApp.
