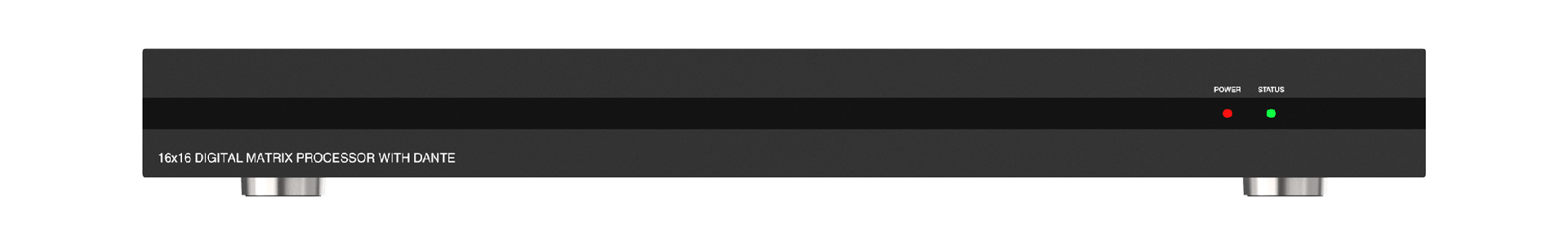

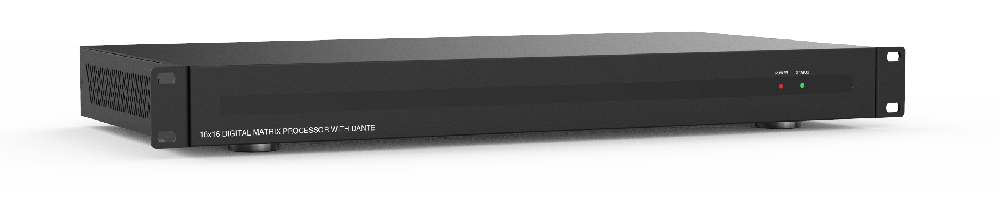

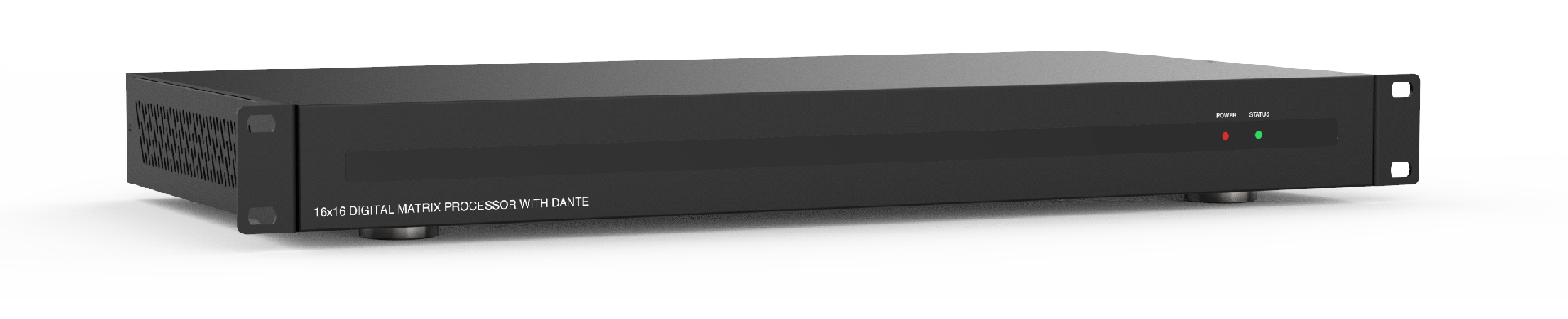

16x16 Audio Processor (Dante 4x4)
MAUD-AUM1616D
16x16 Audio Processor (Dante 4x4) (MAUD-AUM1616D) is a MEGRA MATRIX audio product that processes or routes professional audio, not HDMI video.
It is for racks that need an audio processor or Dante amplification next to the video path.
Key facts from this model: 16 in / 16 out; 2 × Dante [RJ45].
- Provide 12-ch balanced MIC/linear inputs and 12-ch balanced linear outputs
- Provide two standard DANTE network audio interfaces
- Support adaptive feedback suppression function
- Support the full-band adaptive acoustic echo cancellation technology
- Dynamic adaptive noise reduction technology is provided to reduce noise with signal levelup to 18dB
- Auto Mixer function is provided to set the order of priority when multiple microphones are input at one time
For quote: model + client name + location
Specifications
| Technical | |
| Amplitude-frequency (20Hz~20KHZ@+4dBu) | ±0.2dB |
| THD+N (1KHZ@+4dBu) | ≤ 0.01% |
| SNR (linear input) | ≥ 90dB |
| Dynamic Range | ≥ 100dB |
| Channel Level Difference | ±0.5dB |
| Channel Isolation | ≥ 80dB |
| Max Input Level | 20dBu |
| Max MIC Gain | 40dB |
| Input Impedence | 20KΩ |
| Output Impedence | 300Ω |
| Sampling Frequency | 48KHZ |
| A/D and D/A Conversion | 24Bit |
| Phantom Power | +48 VDC |
| Connections | |
| Input ports | 12 × Balanced MIC/LINE [3-pin phoenix connector] or 6 × Stereo Audio [3-pin phoenix connector] |
| Output ports | 12 × Balanced LINE [3-pin phoenix connector] or 6 × Stereo audio [3-pin phoenix connector] |
| Digital Audio Interfaces | 2 × Dante [RJ45] |
| Controls | 1 × LAN [RJ45] 1 × RS-232 [3-pin phoenix connector] 8 × GIPO [10-pin phoenix connector]] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 440mm (W)×250mm (D)×45mm (H) |
| Weight | 3.37kg |
| Power Supply | AC 100 - 240V 50/60Hz |
| Power Consumption (Max) | 11W (Max) |
| Operation Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 16x16 Audio Processor (Dante 4x4) for?
16x16 Audio Processor (Dante 4x4) is a MEGRA MATRIX audio product. It processes or routes professional audio next to the video rack — it does not route HDMI video.
What are the key facts and limits of MAUD-AUM1616D?
MAUD-AUM1616D is listed with: 16 in / 16 out; 2 × Dante [RJ45]. Full connections are in the specification table on this page.
When should I choose an audio processor instead of a matrix or converter?
Choose this family for mic/line processing or Dante amplification next to the video rack. A matrix, switcher, splitter, extender, or AV over IP unit is the video path — they do not mix speech. A converter may extract or embed audio at the format edge, but it is not a DSP. A control panel does not mix microphones.
What should I send for a correct quote on MAUD-AUM1616D?
WhatsApp MEGRA with model MAUD-AUM1616D, the client name, and the location. Add room type and I/O or run length if you already know them.
Does MAUD-AUM1616D route HDMI video?
No. MAUD-AUM1616D is an audio unit listed as 16 in / 16 out. Dante is listed on this model. HDMI routing still needs a matrix, switcher, or extender from this catalog.
