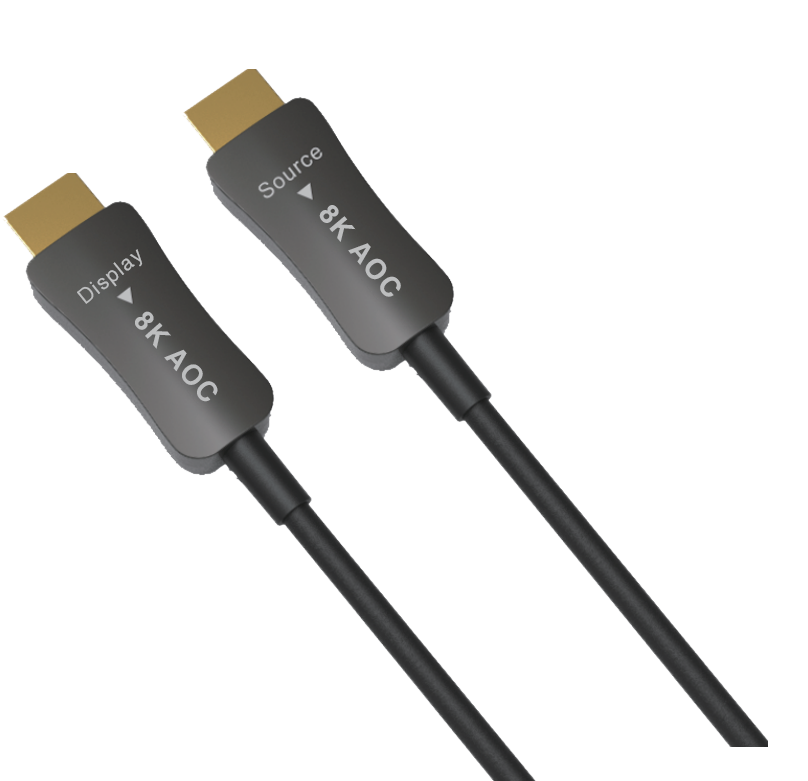

HDMI AOC Hybrid Fiber Optic Cable UHD 8K60, 5-100m
MAOC-HD21
HDMI AOC Hybrid Fiber Optic Cable UHD 8K60, 5-100m (MAOC-HD21) is a MEGRA MATRIX cable SKU for a fixed HDMI or optical run, not a matrix or extender.
It is for long, clean HDMI or USB-C runs where active optical cable is the simpler path.
Key facts from this model: Optical cable; 8K; 100m class.
- Compliant with HDCP 2.3 specifications
- Support video resolution up to 8K@60Hz YUV 4:4:4, 8K@30Hz, 4K@ 120Hz, as specified in HDMI 2.1
- Data transfer rates up to 48Gbps
- Support VRR, ALLM, QMS, QFT, SBTM
- HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
- Extend video and audio signals up to 5-100m (16-328ft)
For quote: model + client name + location
Specifications
| Technical Specifications | Technical |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | Up to 48Gbps |
| Video Resolution | Up to 8K@60Hz YUV 4:4:4, 8K@30Hz, 4K@120Hz |
| Color Space | YUV 4:4:4 |
| Color Depth | 8/10/12-bit |
| HDMI Auido Format | LPCM, Dolby TrueHD, DTS-HD Master Audio, DSD |
| Transmission Distance | 5m / 10m / 15m/ 20m / 25m / 30m / 35m / 40m / 50m / 60m / 70m / 80m / 90m / 100m |
| ESD Protection | IEC 61000-4-2: ±8kV (Air gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input | 1 × Source [HDMI Type A, 19-pin female] |
| Output | 1 ×Display [HDMI Type A, 19-pin female] |
| Mechanical | |
| Outer Diameter | 4.8mm |
| Cable Color | Black |
| Conductor | Optical Fiber +Tinned Copper |
| Chip | Optoelectrontic Conversion Chip |
| Jacket | PVC |
| Connector Casing | Metal Enclosure |
| Connector Color | Gold-plated |
| Power Supply | Non External Power Required |
| Applicable Devices | Camera、Computer、DVD Player、TV Box、HD TV、Projector、 Home Theater、Multimedia、Montior |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (Non-condensing) |
Questions about this model
What job is HDMI AOC Hybrid Fiber Optic Cable UHD 8K60, 5-100m for?
HDMI AOC Hybrid Fiber Optic Cable UHD 8K60, 5-100m is a MEGRA MATRIX cable SKU for a fixed install. It is not a matrix or an extender.
What are the key facts and limits of MAOC-HD21?
MAOC-HD21 is listed with: Optical cable; 8K; 100m class. Full connections are in the specification table on this page.
When should I choose an AOC cable instead of an extender or a matrix?
Choose an active optical cable for one long HDMI or USB-C run as a single cable. It is not a matrix, not a switcher, not a splitter, and not an extender kit — there are no TX/RX boxes. If you need any-to-any routing, source select, one-to-many copies, or a wall-plate pair, buy that family instead.
What should I send for a correct quote on MAOC-HD21?
WhatsApp MEGRA with model MAOC-HD21, the client name, and the location. Add room type and I/O or run length if you already know them.
Is MAOC-HD21 an extender or a matrix?
No. MAOC-HD21 is an active optical cable. Extender kits and matrix frames are separate families in this catalog. Confirm length and connector on WhatsApp.
