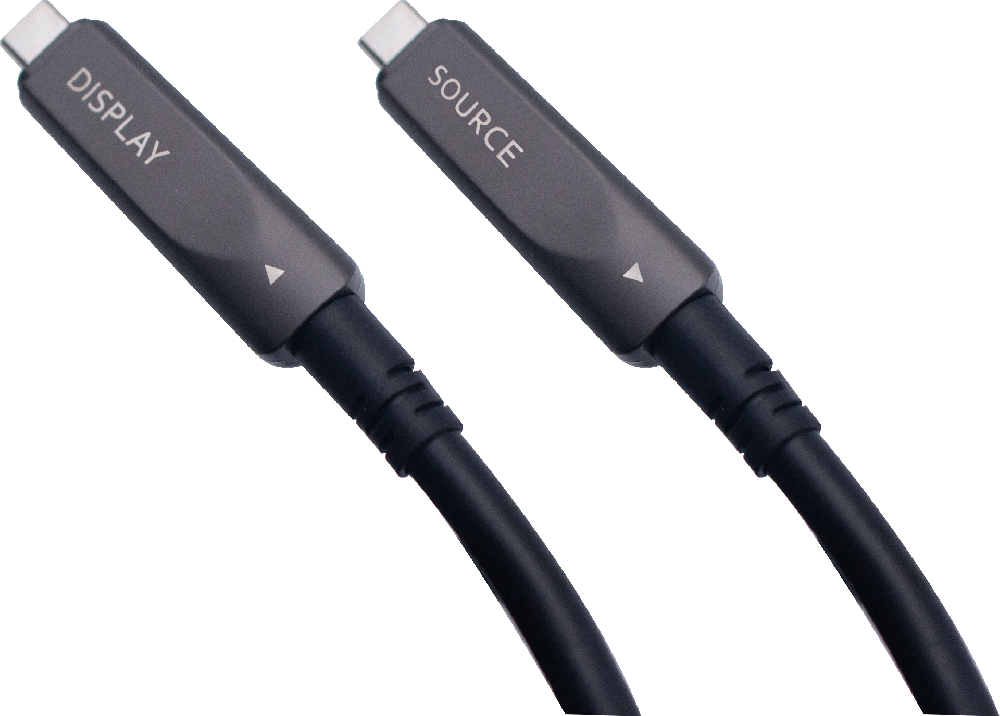

Full-featured Type-C Active Optical Cable Supports audio & video, data and charging functions,
MAOC-CCE
Full-featured Type-C Active Optical Cable Supports audio & video, data and charging functions, (MAOC-CCE) is a MEGRA MATRIX cable SKU for a fixed HDMI or optical run, not a matrix or extender.
It is for long, clean HDMI or USB-C runs where active optical cable is the simpler path.
Key facts from this model: Optical cable; 8K; 850nm.
- USB 3.2 Gen 2 Type-C male port
- USB 3.2 Gen 2 10Gbps, backward compatible with USB 2.0/1.1
- Full-featured Type-C mode: Supports up to 10Gbps transmission rate, ensuring fast and efficient data transmission. Automatic mode switching: It can seamlessly switch between 4-lane DP 2.1 + USB 2.0 and 2-lane
- High resolution support: Supports DP-Alt-Mode, achieving 4K@144Hz/120Hz and 8K@60Hz, providing clear and delicate visual effects, suitable for professional and entertainment purposes.
- Utilizes fiber optic + copper hybrid cable for long-distance lossless transmission.
- Power transmission (PD) support: 5-15m (16-49ft) cables can achieve 60W PD fast charging, meeting diverse power needs without affecting the performance.
For quote: model + client name + location
Specifications
| Technical Specifications | Technical |
| USB Transfer Rate | USB 3.2 Gen 2 10Gbps, backward compatible with USB 2.0/1.1 |
| DP Transfer Rate | Supports 4 lane DP 2.1 or 2 lane DP 1.4 |
| Video Resolution | 4 Lane DP 2.1 mode: 8K@60Hz, 4K@144Hz/120Hz 2 Lane DP 1.4 mode: 4K@60Hz |
| Wave Length | 850nm |
| Optional Cable Length | 5m (16ft)/10m (33ft)/15m (49ft) |
| ESD Protection | IEC 61000-4-2: ±8kV (Air gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input | 1 ×Source [USB Type C, male] |
| Output | 1 ×Display [USB Type C, male] |
| Mechanical | |
| Outer Diameter | 4.8mm |
| Cable Color | Black |
| Conductor | Optical Fiber +Tinned Copper |
| Chip | Optoelectrontic Conversion Chip |
| Jacket | PVC |
| Connector Casing | Metal Enclosure |
| Connector Color | Nickel-plated |
| Power Supply | Non External Power Required |
| Working Voltage | 5V±0.25 |
| Charge Power | Supports fast charging PD 3.0 60W (20V/3A) |
| Applicable Devices | Camera, Computer, Phone, Data Disk, Live Streaming Camera, Game Console, TV box, HDTV, Projector, VR Helmet, Home Theater, Multimedia, Monitor |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (Non-condensing) |
Questions about this model
What job is Full-featured Type-C Active Optical Cable Supports audio & video, data and charging functions, for?
Full-featured Type-C Active Optical Cable Supports audio & video, data and charging functions, is a MEGRA MATRIX cable SKU for a fixed install. It is not a matrix or an extender.
What are the key facts and limits of MAOC-CCE?
MAOC-CCE is listed with: Optical cable; 8K; 850nm. Full connections are in the specification table on this page.
When should I choose an AOC cable instead of an extender or a matrix?
Choose an active optical cable for one long HDMI or USB-C run as a single cable. It is not a matrix, not a switcher, not a splitter, and not an extender kit — there are no TX/RX boxes. If you need any-to-any routing, source select, one-to-many copies, or a wall-plate pair, buy that family instead.
What should I send for a correct quote on MAOC-CCE?
WhatsApp MEGRA with model MAOC-CCE, the client name, and the location. Add room type and I/O or run length if you already know them.
Is MAOC-CCE an extender or a matrix?
No. MAOC-CCE is an active optical cable. Extender kits and matrix frames are separate families in this catalog. Confirm length and connector on WhatsApp.
