SDVoE Transceiver Combo Box (Fiber Only)
MAIP-EB100ATF

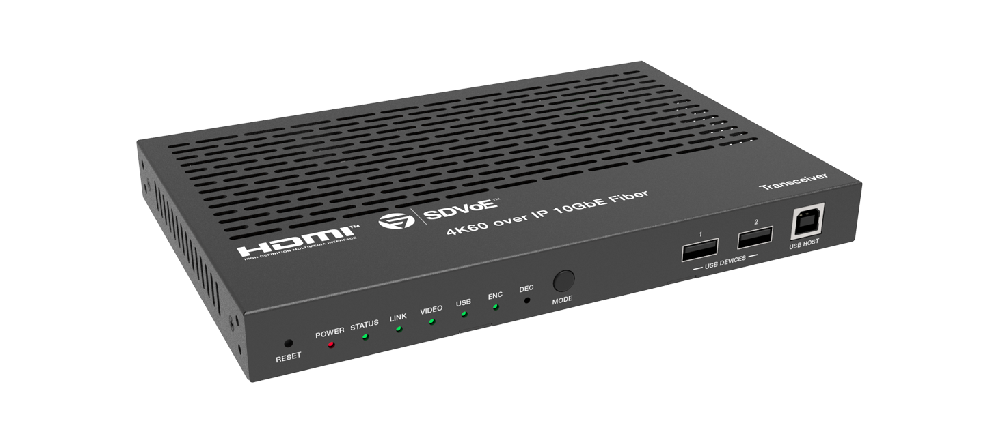

SDVoE Transceiver Combo Box (Fiber Only) (MAIP-EB100ATF) is a MEGRA MATRIX AV over IP unit that encodes or decodes video on a network.
It is for sites that encode and decode video on the network instead of a single copper run.
Key facts from this model: 1 in / 1 out; 4K; 100m class; HDMI 2.0b.
- HDMI 2.0b and HDCP 2.2 compliant
- Support video resolution up to 4K@60Hz 4:4:4, 18Gbps video bandwidth
- Flexible transceiver design (Encoder and Decoder within a single box)
- Encoder or Decoder mode can be set via Button or API
- Encoder supports HDMI Loop out
- Support HDR10, Dolby Vision, HLG, 3D as well
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Network Video Bandwidth | 10G |
| Video Resolution | Up to 4K@60Hz 4:4:4 |
| Color Space | RGB,YCbCr4:4:4/4:2:2/4:2:0 |
| Color Depth | Full Color-Depth |
| HDR | HDR, HDR 10,HDR 10+, Dolby Vision, HLG |
| HDMI Audio Formats | LPCM,Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD, DTS:X |
| Analog Audio Formats | Left and Right stereo analog audio |
| Transmission Distance | 100M(CAT6A/7) / 90M(CAT6) |
| ESD Protection | Human body model — ±8kV(air-gap discharge)&±4kV (contact discharge) |
| Connections | |

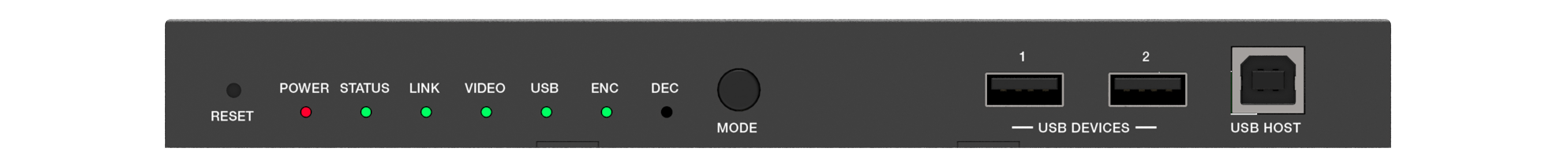

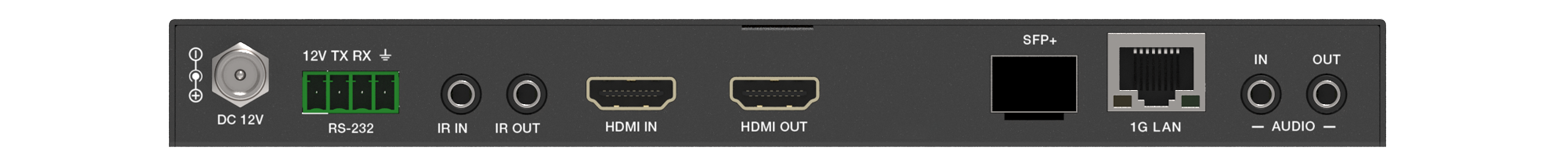

| Input ports | 1x HDMI IN [Type A, 19-pin female] 1x USB 2.0 HOST [Type B, 4-pin female] 1x IR IN [3.5mm Jack] 1x AUDIO IN [3.5mm Jack] 1x RS-232 [4-pin phoenix connector] |
| Output ports | 1x HDMI OUT [Type A, 19-pin female] 1x AUDIO OUT [3.5mm Jack] 1x IR OUT [3.mm Jack] 2x USB 2.0 DEVICE [Type-A, 4pin female] |
| Network ports | 1x 10G SFP+[Fiber slot] 1x 1G LAN [RJ45 jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 204mm[W] x 134mm[D] x 21.5mm[H] |
| Weight | 693g |
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption (Max) | 13.5W |
| Operation Temperature | 32-104°F/0-40°C |
| Storage Temperature | -4-140°F/-20-60°C |
| Relative Humidity | 20-90% RH (no condensation) |
Questions about this model
What job is SDVoE Transceiver Combo Box (Fiber Only) for?
SDVoE Transceiver Combo Box (Fiber Only) is a MEGRA MATRIX AV over IP unit. It encodes or decodes video on a network instead of a single copper matrix run.
What are the key facts and limits of MAIP-EB100ATF?
MAIP-EB100ATF is listed with: 1 in / 1 out; 4K; 100m class; HDMI 2.0b. Full connections are in the specification table on this page.
When should I choose AV over IP instead of a copper matrix or an extender?

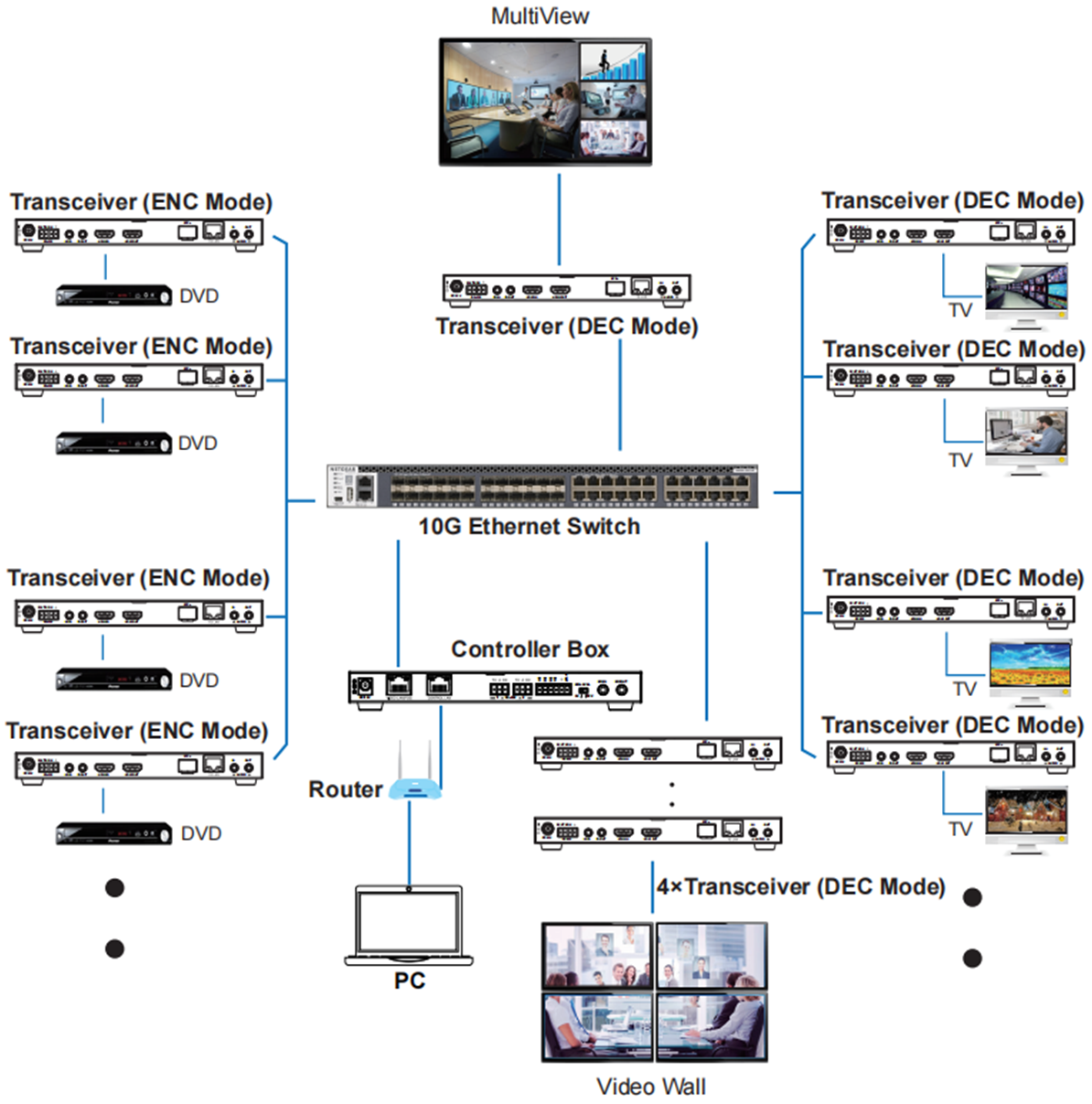

Choose AV over IP when sources and displays live on a managed network and endpoint count may grow. A copper matrix is a fixed I/O rack. An extender is one TX/RX pair, not a fabric. A splitter is not a network. A switcher still serves one local screen. Do not treat an encoder/decoder as a drop-in HDMI cable.
What should I send for a correct quote on MAIP-EB100ATF?
WhatsApp MEGRA with model MAIP-EB100ATF, the client name, and the location. Add room type and I/O or run length if you already know them.
Is MAIP-EB100ATF an encoder or a decoder?
This unit is listed as an encoder or decoder. SDVoE is named on this page. Encoders sit at the source; decoders sit at the display. Confirm endpoint counts on WhatsApp.
