SDVoE Control Box
MAIP-CTL100D
SDVoE Control Box (MAIP-CTL100D) is a MEGRA MATRIX AV over IP unit that encodes or decodes video on a network.
It is for sites that encode and decode video on the network instead of a single copper run.
Key facts from this model: AV over IP; 100m class.
- Easy to create project, control and manage the system
- HTTPS, SSH security compatible
- Built-in Web GUI control interface, supporting Drag & Drop operations
- Support image preview

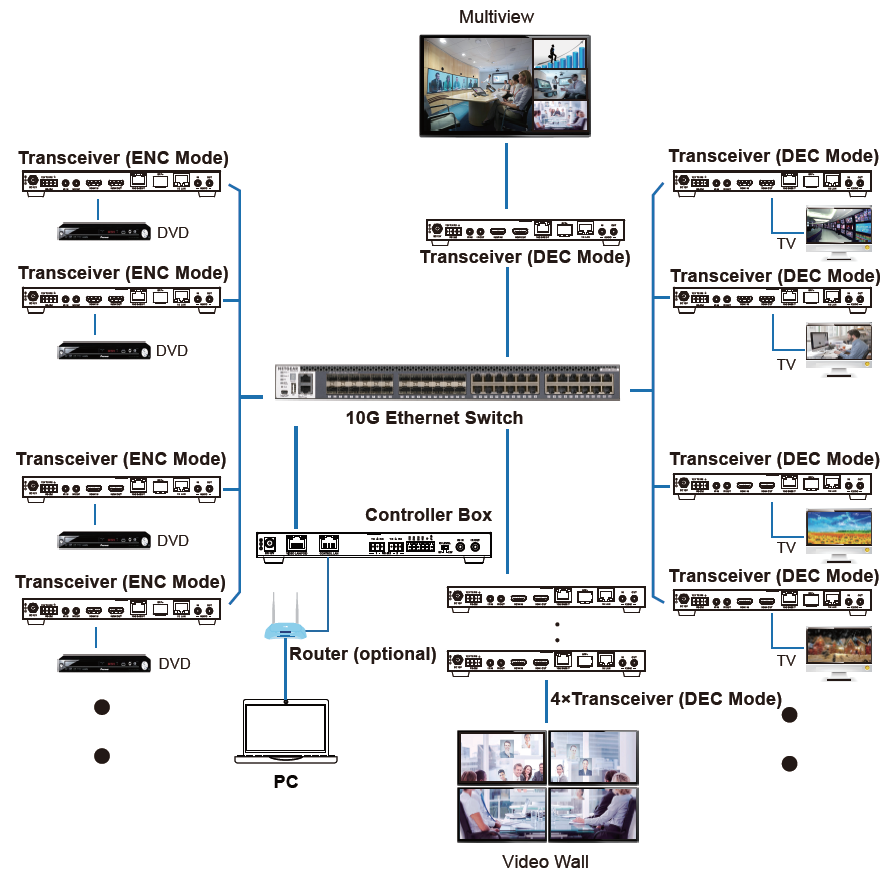

- Support video, audio, RS-232, IR, KVM control and management of the distributed system
- Dual network ports (VIDEO LAN port supports POE function) to isolate Controls and Multicast networks.
For quote: model + client name + location
Specifications
| Technical | |
| Network Bandwidth | 100M |
| Transmission Distance | 100m CAT 5E/6/6A/7 |
| Control Ports | 2x 1G LAN [RJ45 connector] [VIDEO LAN support POE] 1x IR IN [3.5mm audio jack, 12V level] 1x IR OUT [3.5mm audio jack] 1x DIGITAL I/O [6-pin 3.81mm phoenix connector] 2x RS-232 [3-pin 3.81mm phoenix connector] 1x USB Host [Micro USB, 5-pin female] |
| Dimensions | 204mm(W)×98.5mm(D)×21.5mm(H) |
| Housing | Metal Enclosure |
| Color | Black |
| Weight | 508g |
| Power Supply | 12V/1A |
| Power Consumption (Max) | 8.4W |
| Operation Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Storage temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is SDVoE Control Box for?
SDVoE Control Box is a MEGRA MATRIX AV over IP unit. It encodes or decodes video on a network instead of a single copper matrix run.
What are the key facts and limits of MAIP-CTL100D?
MAIP-CTL100D is listed with: AV over IP; 100m class. Full connections are in the specification table on this page.
When should I choose AV over IP instead of a copper matrix or an extender?
Choose AV over IP when sources and displays live on a managed network and endpoint count may grow. A copper matrix is a fixed I/O rack. An extender is one TX/RX pair, not a fabric. A splitter is not a network. A switcher still serves one local screen. Do not treat an encoder/decoder as a drop-in HDMI cable.
What should I send for a correct quote on MAIP-CTL100D?
WhatsApp MEGRA with model MAIP-CTL100D, the client name, and the location. Add room type and I/O or run length if you already know them.
Is MAIP-CTL100D an encoder or a decoder?
This unit is listed as an encoder or decoder. SDVoE is named on this page. Encoders sit at the source; decoders sit at the display. Confirm endpoint counts on WhatsApp.
