4K60 JPEG2000 AV over IP
MAIP-EA900

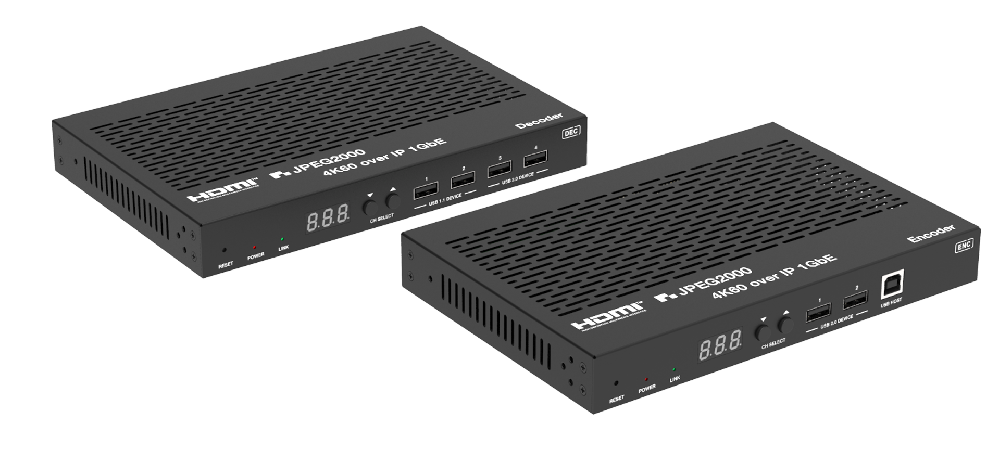

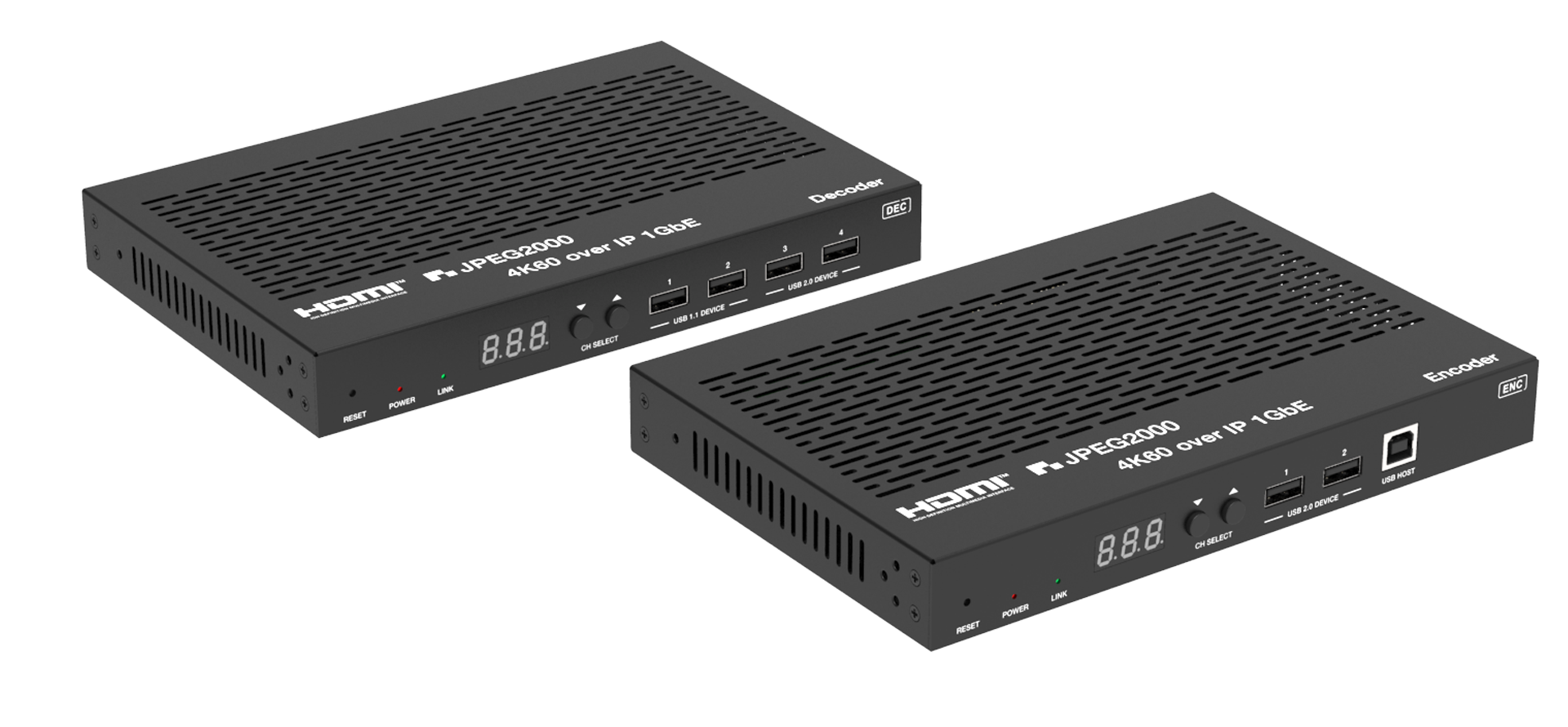

4K60 JPEG2000 AV over IP (MAIP-EA900) is a MEGRA MATRIX AV over IP unit that encodes or decodes video on a network.
It is for sites that encode and decode video on the network instead of a single copper run.
Key facts from this model: AV over IP; 4K60; 100m class; HDMI 2.0b.
- HDCP 2.2 compliant
- Support 18Gbps video bandwidth
- Input and output video resolution is up to 4K60 4:4:4, as specified in HDMI 2.0b
- Signal transmission distance can be extended up to 328ft / 100m via CAT5E/6/6A/7 cable
- Transmit video, analog/digital audio, IR , RS-232, CEC and USB over Ethernet
- Integrate Copper port and Fiber port within a single box
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Compression Standard | JPEG2000 |
| Network Video Bandwidth | 10G |
| Video Resolution | Up to 4K@60Hz 4:4:4 |
| Color Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Color Depth | Input: 8/10/12-bit Output: 8-bit |
| HDMI Audio Formats | LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master |
| Transmission Distance | 100M CAT5E/6/6A/7 |
| IR Level | Default 12V, optional 5V |
| IR Frequency | Wideband 20K - 60KHZ |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connections | |
| Encoder | Input: 1x HDMI IN [Type A, 19-pin male] 1x L/R AUDIO IN [3-pin 3.81mm Phoenix connector] Output: 1x HDMI OUT [Type A, 19-pin male] 1x L/R AUDIO OUT [3-pin 3.81mm Phoenix connector] 1x SPDIF OUT [Optical audio connector] Control: 1 x RS-232 [3-pin 3.81mm Phoenix connector] 1x LAN (POE) [RJ45 jack] 1x FIBER [Optical fiber slot] 1x USB 2.0 HOST [Type B, 4-pin female] 2x USB 2.0 DEVICE [Type-A, 4pin female] 2x RELAYS [3.81mm Phoenix connector] 2x DIGITAL IO [3.81mm Phoenix connector] 1x IR IN [3.5mm Audio Jack] 1x IR OUT [3.5mm Audio Jack] |

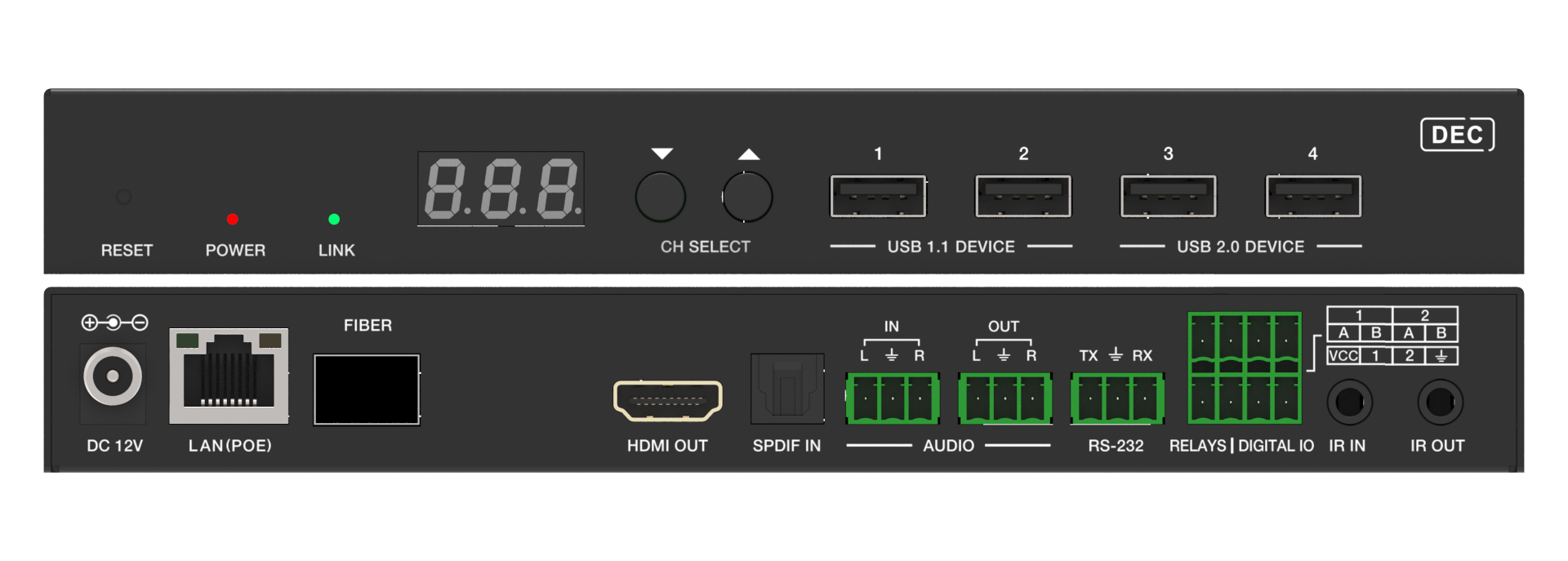

| Decoder | Input: 1x SPDIF IN [Optical audio connector] 1x L/R AUDIO IN [3-pin 3.81mm Phoenix connector] Output: 1x HDMI OUT [Type A, 19-pin male] 1x L/R AUDIO OUT [3-pin 3.81mm Phoenix connector] Control: 1x RS-232 [3.81mm Phoenix connector] 1x LAN (POE) [RJ45 jack] 1x FIBER [Optical fiber slot] 2x USB 1.1 DEVICE [Type-A, 4pin female] 2x USB 2.0 DEVICE [Type-A, 4pin female] 2x RELAYS [3.81mm Phoenix connector] 2x DIGITAL IO [3.81mm Phoenix connector] 1x IR IN [3.5mm Audio Jack] 1x IR OUT [3.5mm Audio Jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Encoder/Decoder: 204mm [W] x 136mm [D] x 25.5mm [H] |
| Weight | Encoder: 631g, Decoder: 626g |
| Power Supply | Input: AC100-240V 50/60Hz, Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption (Max) | Encoder: 8.52W, Decoder: 7.08W (Max.) |
| Operation Temperature | 32-104°F/0-40°C |
| Storage temperature | -4-140°F/-20-60°C |
| Relative Humidity | 20- 90% RH (no condensation) |
Questions about this model
What job is 4K60 JPEG2000 AV over IP for?
4K60 JPEG2000 AV over IP is a MEGRA MATRIX AV over IP unit. It encodes or decodes video on a network instead of a single copper matrix run.
What are the key facts and limits of MAIP-EA900?
MAIP-EA900 is listed with: AV over IP; 4K60; 100m class; HDMI 2.0b. Full connections are in the specification table on this page.

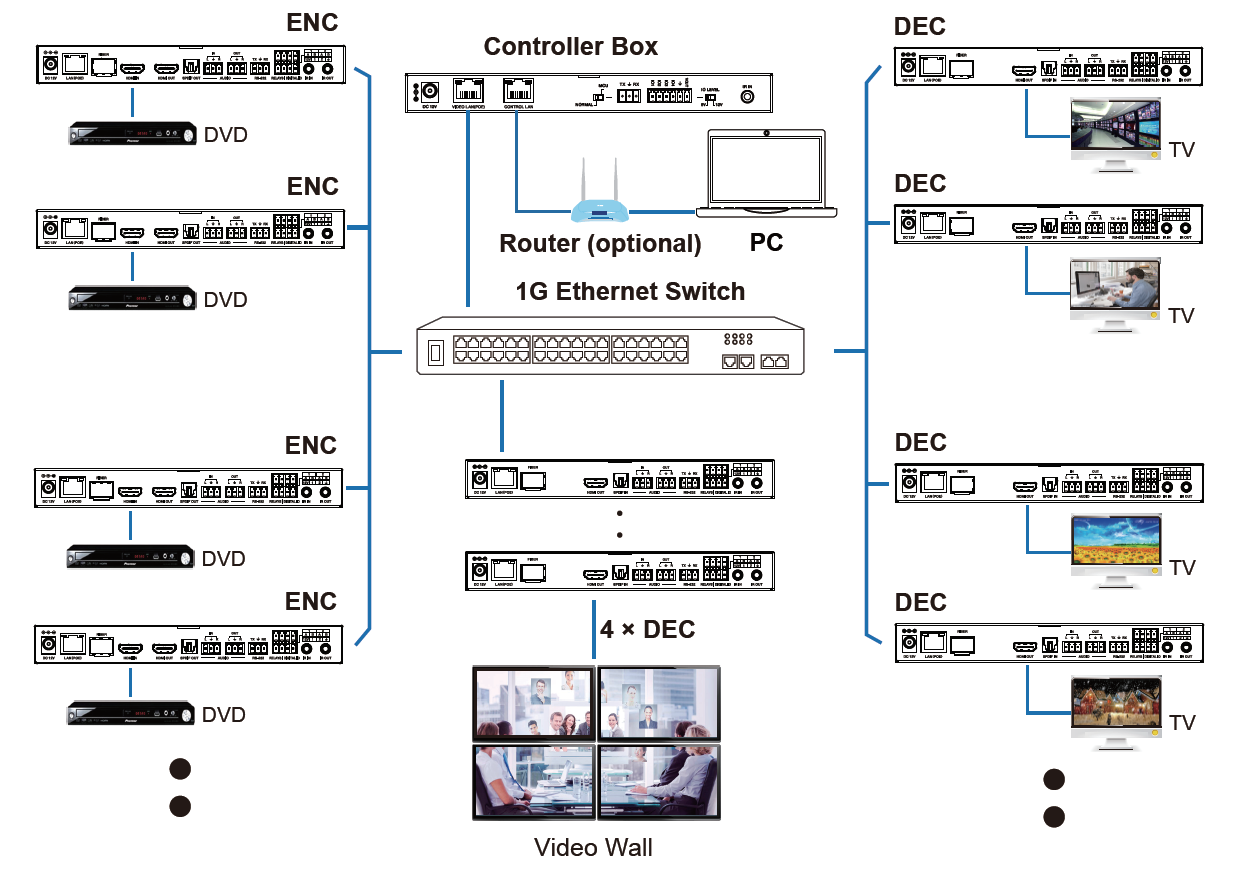

When should I choose AV over IP instead of a copper matrix or an extender?
Choose AV over IP when sources and displays live on a managed network and endpoint count may grow. A copper matrix is a fixed I/O rack. An extender is one TX/RX pair, not a fabric. A splitter is not a network. A switcher still serves one local screen. Do not treat an encoder/decoder as a drop-in HDMI cable.
What should I send for a correct quote on MAIP-EA900?
WhatsApp MEGRA with model MAIP-EA900, the client name, and the location. Add room type and I/O or run length if you already know them.
Is MAIP-EA900 an encoder or a decoder?
This unit is listed as an encoder or decoder. JPEG2000 is named on this page. Encoders sit at the source; decoders sit at the display. Confirm endpoint counts on WhatsApp.
