4K30 JPEG2000 AV over IP
MAIP-EA810

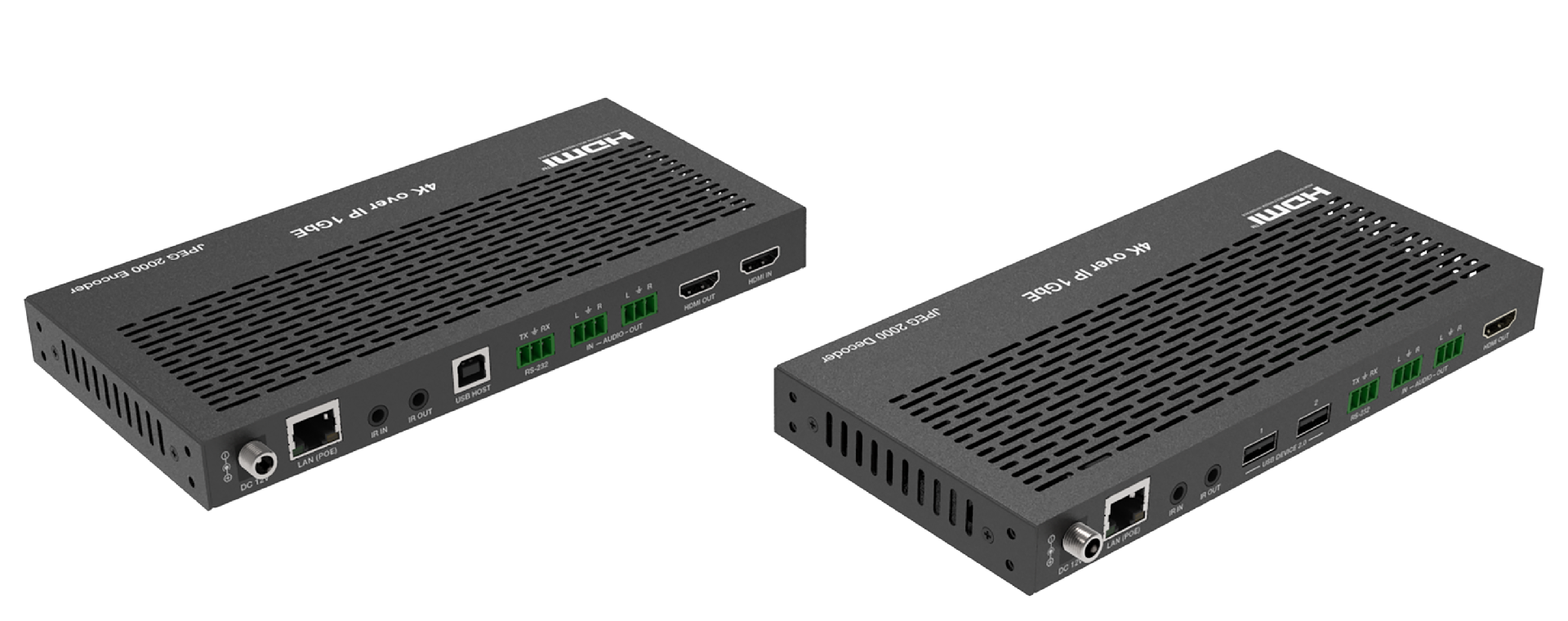

4K30 JPEG2000 AV over IP (MAIP-EA810) is a MEGRA MATRIX AV over IP unit that encodes or decodes video on a network.
It is for sites that encode and decode video on the network instead of a single copper run.
Key facts from this model: 1 in / 1 out; 4K; 100m class; HDMI 2.0b.
- HDMI 2.0b, HDCP 2.2 compliant
- Support 18Gbps video bandwidth
- Input supports up to 4K60 4:4:4, output supports 4K30 4:4:4
- Transmit video, audio, IR , RS-232, CEC and USB signals over Ethernet
- Support unicast and multicast functions
- Support point-to-point, video matrix and video wall functions (video wall supports up to 9x9)
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Compression Standard | JPEG2000 |
| Video Network Bandwidth | 1G |
| Video Resolution | 480i ~1080p@50/60Hz, 4K@24/30Hz, support 4K@50/60Hz input |
| Color Depth | 8/10/12-bit |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| HDMI Audio Formats | LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master, DTS:X |
| Transmission Distance | 100M CAT5E/6/6A/7 |
| IR Level | 12Vp-p |
| IR Frequency | Wideband 20K - 60KHZ |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connections | |
| Input ports | Input: 1 x HDMI IN [Type A, 19-pin male] 1x L/R AUDIO IN [3.81mm Phoenix connector] 1x IR IN [3.5mm Audio Jack] Output: 1 × HDMI OUT [Type A, 19-pin male] 1x L/R AUDIO OUT [3.81mm Phoenix connector] 1x IR OUT [3.5mm Audio Jack] Control: 1 x RS-232 [3.81mm Phoenix connector] 1x LAN [RJ45 jack] 1x USB [USB TypeB] |
| Output ports | Input: 1x IR IN [3.5mm Audio Jack] 1x MIC IN [3.81mm Phoenix connector] Output: 1 x HDMI OUT [Type A, 19-pin male] 1x IR OUT [3.5mm Audio Jack] 1x L/R AUDIO OUT [3.81mm Phoenix connector] Control: 1 x LAN [RJ45 jack] 2x USB1.1 [USB-A male] 2x USB2.0 [USB-A male] 1x RS-232 [3.81mm Phoenix connector] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 204mm [W] x 100mm [D] x 21.5mm [H] |
| Weight | TX:509g, RX:496g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption (Max) | Encoder: < 8W, Decoder: < 4W |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
| Resolution /Cable Length | 4K60 - Feet/ Meters / 4K30 - Feet / Meters / 1080P60 - Feet / Meters |
| HDMI IN / OUT | 16ft / 5M / 32ft / 10M / 50ft / 15M |
Questions about this model
What job is 4K30 JPEG2000 AV over IP for?
4K30 JPEG2000 AV over IP is a MEGRA MATRIX AV over IP unit. It encodes or decodes video on a network instead of a single copper matrix run.
What are the key facts and limits of MAIP-EA810?
MAIP-EA810 is listed with: 1 in / 1 out; 4K; 100m class; HDMI 2.0b. Full connections are in the specification table on this page.
When should I choose AV over IP instead of a copper matrix or an extender?
Choose AV over IP when sources and displays live on a managed network and endpoint count may grow. A copper matrix is a fixed I/O rack. An extender is one TX/RX pair, not a fabric. A splitter is not a network. A switcher still serves one local screen. Do not treat an encoder/decoder as a drop-in HDMI cable.
What should I send for a correct quote on MAIP-EA810?
WhatsApp MEGRA with model MAIP-EA810, the client name, and the location. Add room type and I/O or run length if you already know them.
Is MAIP-EA810 an encoder or a decoder?
This unit is listed as an encoder or decoder. JPEG2000 is named on this page. Encoders sit at the source; decoders sit at the display. Confirm endpoint counts on WhatsApp.
