1080P H.265 AV over IP (Full Feature)
MAIP-E5200M
1080P H.265 AV over IP (Full Feature) (MAIP-E5200M) is a MEGRA MATRIX AV over IP unit that encodes or decodes video on a network.
It is for sites that encode and decode video on the network instead of a single copper run.
Key facts from this model: AV over IP; 100m class; HDMI 1.3; Up to 1920x1200@60Hz 4:4:4.
- HDMI 1.3 and HDCP 1.4 compliant
- Video resolution up to 1920x1200@60Hz 4:4:4
- Support 4.95Gbps video bandwidth
- Signal transmission distance can be extended up to 328ft / 100m via CAT5E/6/6A/7 cable
- Support point-to-point signal extension
- Support signal distribution, multicast mode, distributed matrix and video wall (up to 9x9) functions over a 1G Network Switch
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 1.3 |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 4.95Gbps |
| Video Compression Standard | H.265/H.264 |
| Transmission Distance | 100m (CAT5E/6/6A/7) |
| IR Level | 12Vp-p |
| IR Frequency | Wideband 20K - 60KHZ |
| Video Resolution | Up to 1920x1200@60Hz 4:4:4 |
| Color Space | RGB4:4:4, YCbCr 4:4:4,YCbCr 4:2:2 |
| Color Depth | Input: 8-bit, 10-bit, 12-bit (1080p@60Hz); Output: 8-bit |
| Audio Formats | LPCM 2.0CH (32/44.1/48KHz) |
| Connections | |

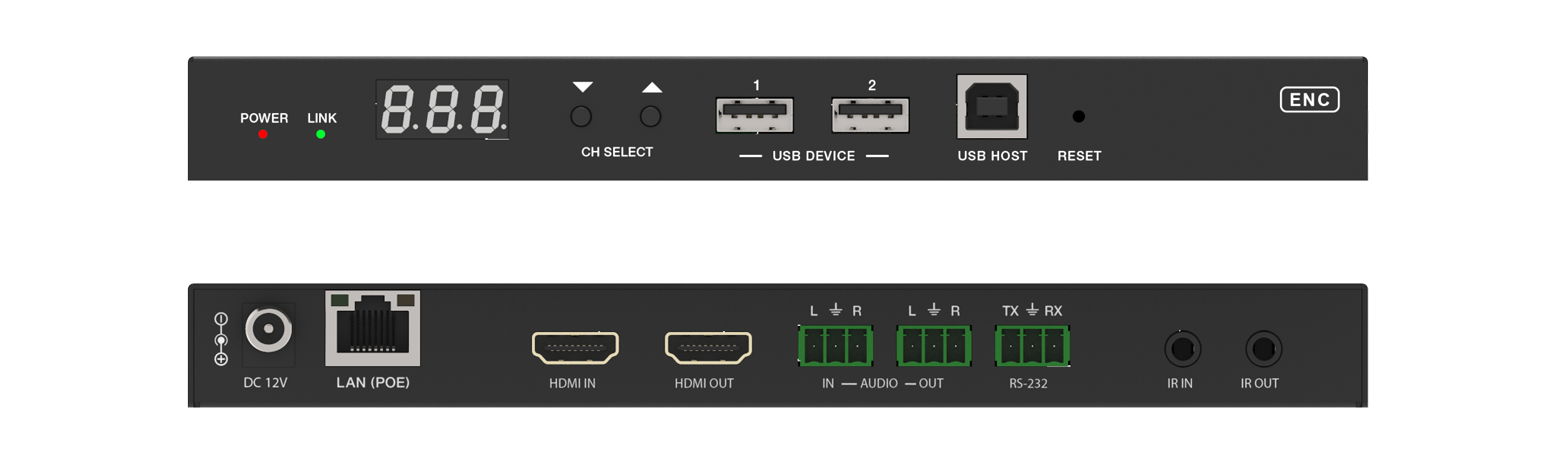

| Encoder | 1x HDMI IN [Type A, 19-pin female] 1x HDMI OUT [Type A, 19-pin female] 1x AUDIO IN [3-pin phoenix connector] 1x AUDIO OUT [3-pin phoenix connector] 1x RS-232 [3-pin phoenix connector] 1x LAN [RJ45 connector, POE] 1x IR IN [3.5mm audio jack, 12V IR] 1x IR OUT [3.5mm audio jack, 12V IR] 1x USB Host [Type B, 4-pin female] 2x USB Devices [Type A, 4-pin female] |
| Decoder | 1x HDMI OUT [Type A, 19-pin female] 1x LAN [RJ45 connector, POE] 1x AUDIO OUT [3-pin phoenix connector] 1x RS-232 [3-pin phoenix connector] 1x IR IN [3.5mm audio jack, 12V IR] 1x IR OUT [3.5mm audio jack, 12V IR] 2x USB Devices [Type A, 4-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Encoder / Decoder: 204mm [W] x 95mm [D] x 21.5mm [H] |
| Weight | Encoder: 472g, Decoder: 468g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A |
| Power Consumption (Max) | Encoder: 4.08W, Decoder: 2.76W |
| Operation Temperature | 14 - 113°F / -10 - 45°C |
| Storage temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 1080P H.265 AV over IP (Full Feature) for?
1080P H.265 AV over IP (Full Feature) is a MEGRA MATRIX AV over IP unit. It encodes or decodes video on a network instead of a single copper matrix run.
What are the key facts and limits of MAIP-E5200M?
MAIP-E5200M is listed with: AV over IP; 100m class; HDMI 1.3; Up to 1920x1200@60Hz 4:4:4. Full connections are in the specification table on this page.
When should I choose AV over IP instead of a copper matrix or an extender?
Choose AV over IP when sources and displays live on a managed network and endpoint count may grow. A copper matrix is a fixed I/O rack. An extender is one TX/RX pair, not a fabric. A splitter is not a network. A switcher still serves one local screen. Do not treat an encoder/decoder as a drop-in HDMI cable.
What should I send for a correct quote on MAIP-E5200M?
WhatsApp MEGRA with model MAIP-E5200M, the client name, and the location. Add room type and I/O or run length if you already know them.
Is MAIP-E5200M an encoder or a decoder?
This unit is listed as an encoder or decoder. H.264/H.265 is named on this page. Encoders sit at the source; decoders sit at the display. Confirm endpoint counts on WhatsApp.
