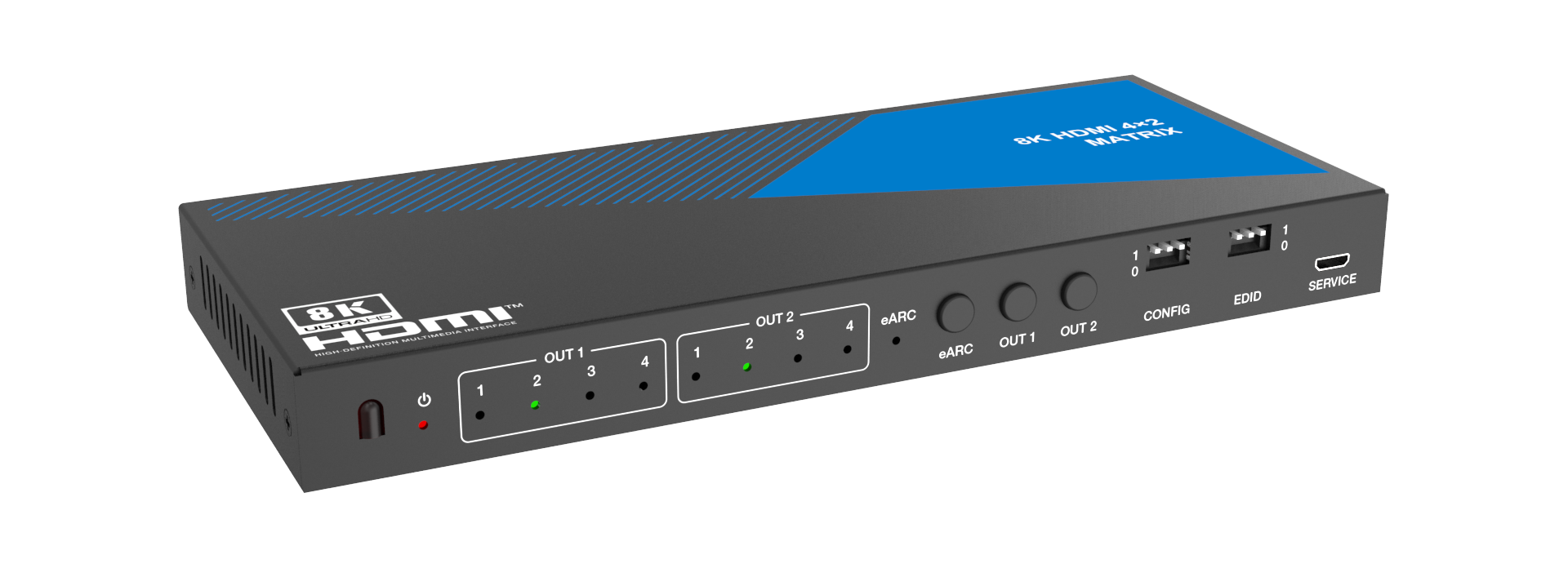

4x2 8K HDMI Matrix
MMPX-MXC42A

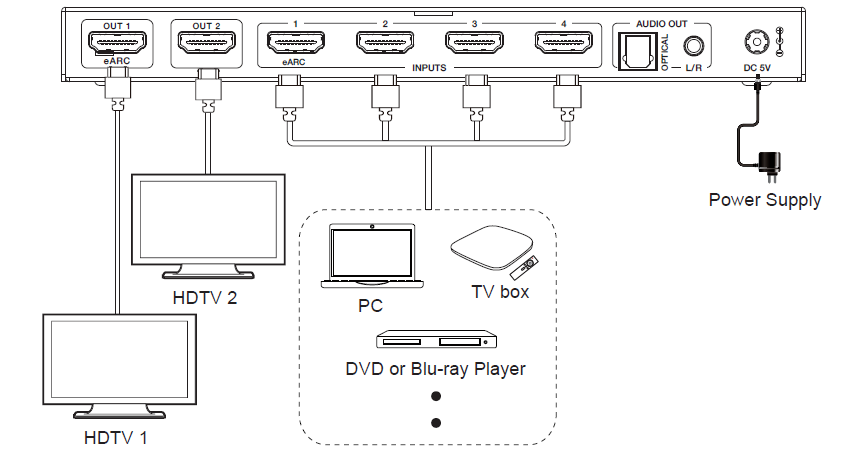

4x2 8K HDMI Matrix (MMPX-MXC42A) is a MEGRA MATRIX matrix switcher that routes any selected input to any selected output.
It is for integrators and facility owners who need any source on any display — meeting rooms, control rooms, lecture halls, and multi-display lobbies.
Key facts from this model: 4 in / 2 out; 8K; HDMI 2.1.
- HDMI 2.1 and HDCP 2.3 compliant
- Support 40Gbps video bandwidth
- Support video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
- VRR, FVA, ALLM supported
- Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
- Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 40Gbps |
| Video Resolution | Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit |
| Color Depth | 8/10/12-bit |
| Color Space | RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0 |
| Audio Formats | HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS,DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Audio de-embedding output: Optical: Up to LPCM/Dolby/DTS 5.1 CH Analog: LPCM 2.0 CH |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connections | |

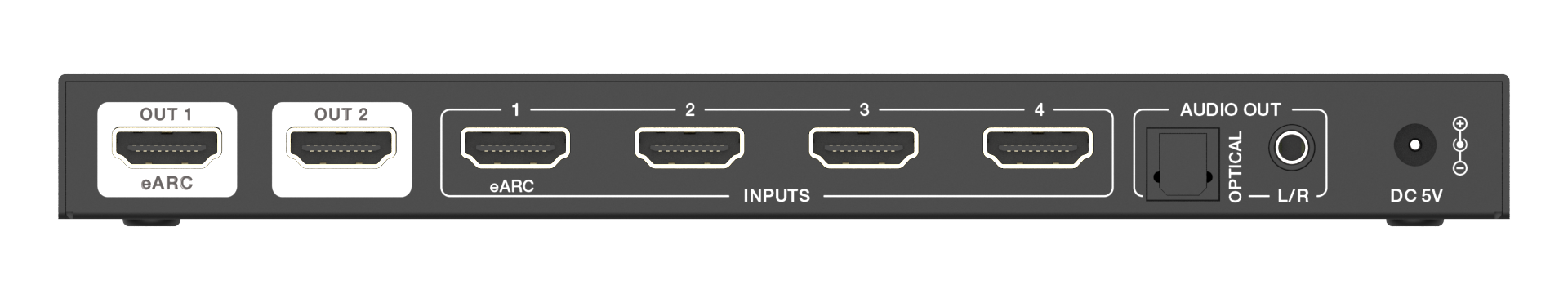

| Input Ports | 4x HDMI IN [Type A, 19-pin female] |
| Output Ports | 2x HDMI OUT [Type A, 19-pin female] 1x OPTICAL [S/PDIF] 1x L/R [3.5mm Stereo Mini-jack] |
| Control port | 1x SERVICE [Micro USB, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 200mm [W] × 85mm [D] × 21mm [H] |
| Weight | 411 g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption (Max) | 2.05 W (Max) |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
| Recommended HDMI Cable | |
| Video Resolution | 8K -Feet / Meters / 4K60-Feet/Meters / 4K24-Feet/Meters / 1080P60-Feet/Meters |
| HDMI IN / OUT | 3m/10ft / 8m/26ft / 12m/39ft / 50ft / 15M |
Questions about this model
What job is 4x2 8K HDMI Matrix for?
4x2 8K HDMI Matrix is a MEGRA MATRIX matrix switcher. It routes any selected input to any selected output so several sources can serve several displays at the same time.
What are the key facts and limits of MMPX-MXC42A?
MMPX-MXC42A is listed with: 4 in / 2 out; 8K; HDMI 2.1. Full connections are in the specification table on this page.
When should I choose a matrix instead of a switcher, splitter, or extender?
Choose a matrix when several sources must reach several displays independently — any input to any output. A switcher is several sources to one screen. A splitter copies the same picture to every screen. An extender is a transmitter/receiver pair for one distant display. A converter only changes format. AV over IP is for network endpoints, not a fixed-port rack frame.
What should I send for a correct quote on MMPX-MXC42A?
WhatsApp MEGRA with model MMPX-MXC42A, the client name, and the location. Add room type and I/O or run length if you already know them.
What I/O size is this matrix?
MMPX-MXC42A is listed as 4 in / 2 out. Confirm sources, displays, and whether you need HDBaseT or HDMI-only outputs.
