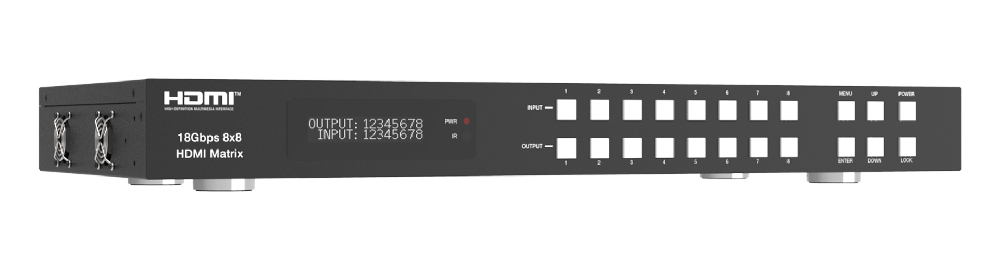

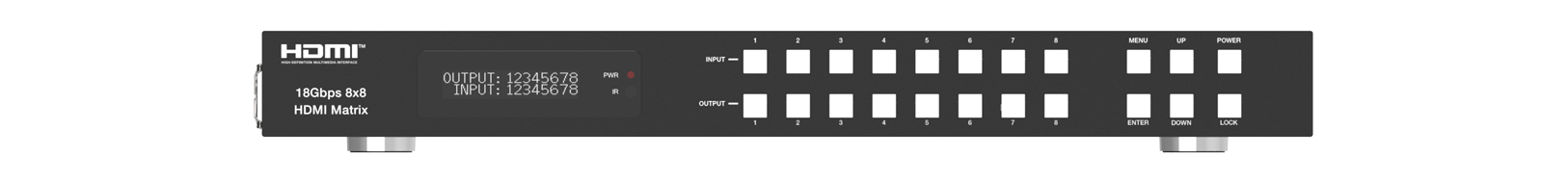

8x8 HDMI Matrix
MMPX-MXB88DA
8x8 HDMI Matrix (MMPX-MXB88DA) is a MEGRA MATRIX matrix switcher that routes any selected input to any selected output.
It is for integrators and facility owners who need any source on any display — meeting rooms, control rooms, lecture halls, and multi-display lobbies.
Key facts from this model: 8 in / 8 out; 4K; HDMI 2.0; Up to 4K2K@50/60Hz (4:4:4).
- HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
- Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports
- Support 18Gbps video bandwidth
- Dolby Vision, HDR10+ and HLG are supported.
- Support 4K->1080P Down Scaler for each output port
- HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@50/60Hz (4:4:4) |
| Color Space | RGB,YCbCr 4:4:4/4:2:2/4:2:0 |
| Color Depth | 8-bit,10-bit,12-bit |
| HDMI Audio Formats (Pass-through) | LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Coax Audio Formats | LPCM 2.0, Dolby Digital / Plus, DTS 5.1 |
| L/R Audio Formats | PCM2.0CH |
| HDR Support | HDR10, HDR10+. Dolby Vision, HLG |
| ESD Protection | Human body model: ±8kV (air-gap discharge) & ±4kV (contact discharge) |

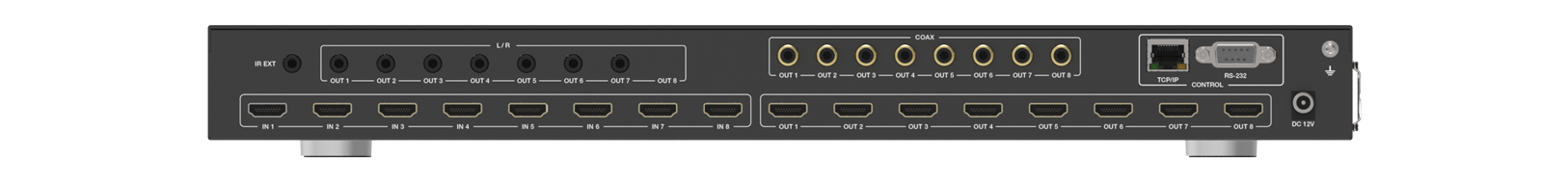

| Connections | |
| Input Ports | 8x HDMI Type A [19-pin female] 1x IR EXT [3.5mm Stereo Mini-jack] |
| Output Ports | 8x HDMI Type A [19-pin female] 8x Coax Audio (RCA) 8x L/R Audio [3.5mm Stereo Mini-jack] |
| Control port | 1x TCP/IP [RJ45] 1x RS-232 [D-Sub 9] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 440mm (W)x200mm (D)x44.5mm (H) |
| Weight | 2.8kg |
| Power Supply | Input: AC 100 - 240V 50/60Hz Output: DC 12V/5A (US/EU standard, CE/FCC/ULcertified) |
| Power Consumption (Max) | 43W |
| Operation Temperature | 14°F - 113°F / -10°C - 45°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
| Resolution / Cable length | 4K60 -Feet / Meters / 4K30-Feet / Meters / 1080P60 - Feet / Meters |
| HDMI IN / OUT | 16ft / 5M / 32ft / 10M / 50ft / 15M |
Questions about this model
What job is 8x8 HDMI Matrix for?
8x8 HDMI Matrix is a MEGRA MATRIX matrix switcher. It routes any selected input to any selected output so several sources can serve several displays at the same time.
What are the key facts and limits of MMPX-MXB88DA?
MMPX-MXB88DA is listed with: 8 in / 8 out; 4K; HDMI 2.0; Up to 4K2K@50/60Hz (4:4:4). Full connections are in the specification table on this page.
When should I choose a matrix instead of a switcher, splitter, or extender?
Choose a matrix when several sources must reach several displays independently — any input to any output. A switcher is several sources to one screen. A splitter copies the same picture to every screen. An extender is a transmitter/receiver pair for one distant display. A converter only changes format. AV over IP is for network endpoints, not a fixed-port rack frame.
What should I send for a correct quote on MMPX-MXB88DA?
WhatsApp MEGRA with model MMPX-MXB88DA, the client name, and the location. Add room type and I/O or run length if you already know them.
What I/O size is this matrix?
MMPX-MXB88DA is listed as 8 in / 8 out. Confirm sources, displays, and whether you need HDBaseT or HDMI-only outputs.
