4x4 HDMI Matrix (70m)
MMPX-MXB44D70M

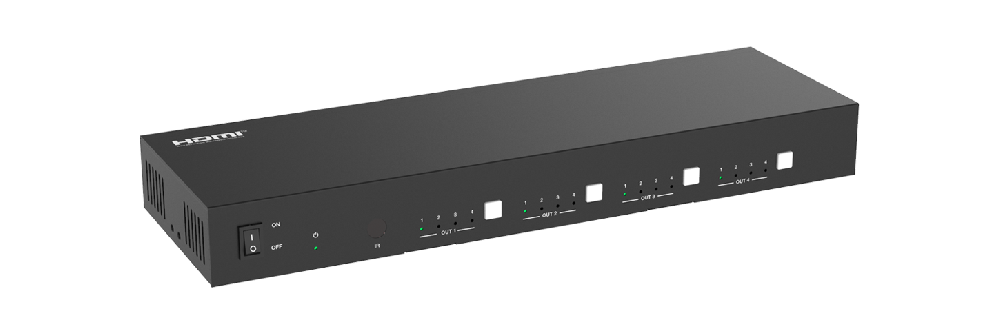

4x4 HDMI Matrix (70m) (MMPX-MXB44D70M) is a MEGRA MATRIX matrix switcher that routes any selected input to any selected output.
It is for integrators and facility owners who need any source on any display — meeting rooms, control rooms, lecture halls, and multi-display lobbies.
Key facts from this model: 4 in / 4 out; 4K; 70m class; HDMI 2.0.
- HDMI 2.0b and HDCP 2.2/1.x compliant
- Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & CAT ports
- 4 HDMI inputs, 4 HDMI & CAT mirrored outputs
- HDMI ports support 18Gbps lossless uncompressed video bandwidth
- Support 4K->1080P Down Scaler for each output port
- HDR, HDR10, HDR10+, Dolby Vision, HLG are supported
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2/1.x |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@50/60Hz (4:4:4) |
| Color Space | RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit，10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0） |
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| HDR | HDR10, HDR10+, Dolby Vision, HLG |
| Transmission Distance | 230ft/70m (via a single CAT6 cable) |
| ESD Protection | Human body model: ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connections | |

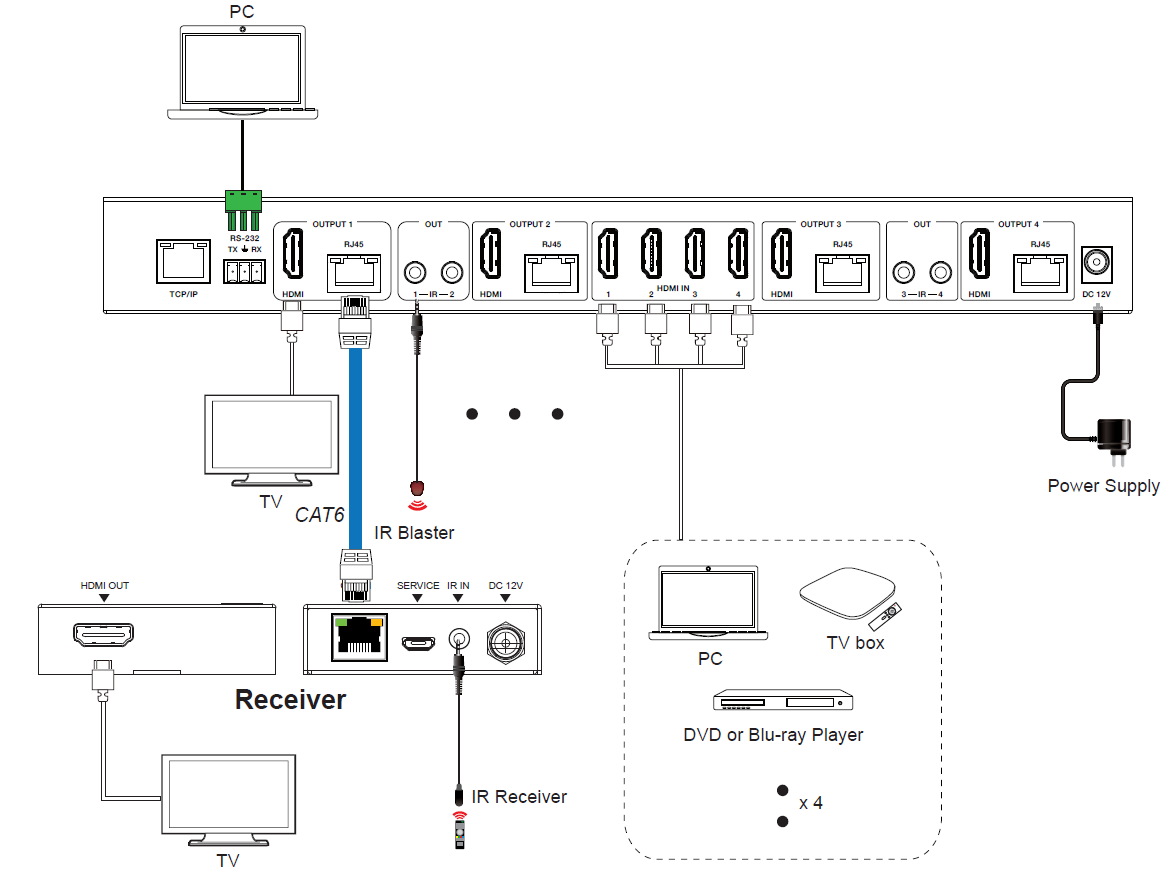

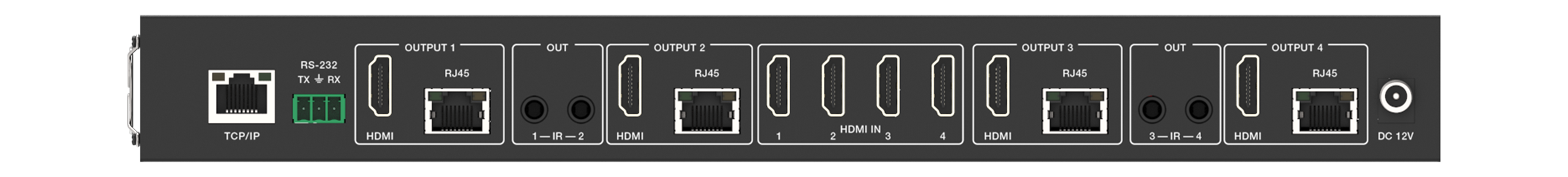

| Matrix | Inputs: 4x HDMI Type A [19-pin female] Outputs: 4x HDMI Type A [19-pin female] 4x CAT port [RJ45] 4x IR OUT [3.5mm Stereo Mini-jack] Controls: 1 x TCP/IP [RJ45] 1x RS-232 [3-pin phoenix connector] |
| CAT Receiver | Inputs: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT port [RJ45] Output: 1x HDMI Type A [19-pin female] Control: 1x SERVICE [Micro USB, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Matrix: 320mm [W] x 100mm [D]x 36mm [H] Receiver: 61mm [W] x 88mm [D] x 18mm [H] |
| Weight | Matrix: 915g, Receiver: 155g |
| Power Supply | Input: AC 90 - 260V 50/60Hz Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption (Max) | 19.68W (Max) |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20- 90% RH (no condensation) |
| Resolution / Cable length | 4K60 -Feet / Meters / 4K30-Feet / Meters / 1080P60 - Feet / Meters |
| HDMI IN / OUT | 16ft / 5M / 32ft / 10M / 50ft / 15M |
Questions about this model
What job is 4x4 HDMI Matrix (70m) for?
4x4 HDMI Matrix (70m) is a MEGRA MATRIX matrix switcher. It routes any selected input to any selected output so several sources can serve several displays at the same time.
What are the key facts and limits of MMPX-MXB44D70M?
MMPX-MXB44D70M is listed with: 4 in / 4 out; 4K; 70m class; HDMI 2.0. Full connections are in the specification table on this page.
When should I choose a matrix instead of a switcher, splitter, or extender?
Choose a matrix when several sources must reach several displays independently — any input to any output. A switcher is several sources to one screen. A splitter copies the same picture to every screen. An extender is a transmitter/receiver pair for one distant display. A converter only changes format. AV over IP is for network endpoints, not a fixed-port rack frame.
What should I send for a correct quote on MMPX-MXB44D70M?
WhatsApp MEGRA with model MMPX-MXB44D70M, the client name, and the location. Add room type and I/O or run length if you already know them.
What I/O size is this matrix?
MMPX-MXB44D70M is listed as 4 in / 4 out. Confirm sources, displays, and whether you need HDBaseT or HDMI-only outputs.
