4x2 4K60 HDMI Multiview Matrix Switcher
MMPX-MXB42MV
4x2 4K60 HDMI Multiview Matrix Switcher (MMPX-MXB42MV) is a MEGRA MATRIX matrix switcher that routes any selected input to any selected output.
It is for integrators and facility owners who need any source on any display — meeting rooms, control rooms, lecture halls, and multi-display lobbies.
Key facts from this model: 4 in / 2 out; 4K60; HDMI 2.0b; Up to 4K2K@60 4:4:4.
- HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
- 18Gbps uncompressed Bandwidth, input and output resolution up to 4K2K@60 4:4:4
- HDMI audio formats support LPCM, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through
- Seamless switching between input channels
- Combined multiple images independent layouts to display on two UHD TVs
- Up to 8 display modes: Single, PIP, PBP(1), PBP(2), Triple(1), Triple(2), Quad(1), Quad(2)
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2/1.x |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@60 4:4:4 |
| IR Level | 5Vp-p |
| IR Frequency | 38KHz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12-bit |
| Audio Formats | HDMI audio: PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio Analog audio [3.5mm L/R]: PCM2.0 Optical fiber audio: PCM2.0/5.1/7.1CH, Dolby Digital/plus, DTS 5.1 |
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) |

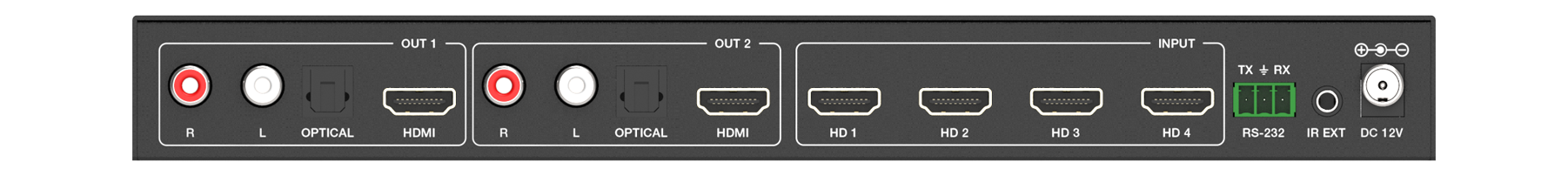

| Connections | |
| Input ports | 4x HDMI IN [Type A, 19-pin female] |
| Output ports | 2x HDMI OUT [Type A, 19-pin female] 2x L/R OUTPUT [RCA] 2x OPTICAL OUTPUT [S/PDIF] |
| Control ports | 1x RS-232 [3pin-3.81mm phoenix connector] 1x IR EXT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 270mm [W] x 130mm [D] x 30mm [H] |
| Weight | 906g |
| Power Supply | Input: AC 100 - 240V 50/60Hz Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | 15.72W (Max) |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 4x2 4K60 HDMI Multiview Matrix Switcher for?
4x2 4K60 HDMI Multiview Matrix Switcher is a MEGRA MATRIX matrix switcher. It routes any selected input to any selected output so several sources can serve several displays at the same time.
What are the key facts and limits of MMPX-MXB42MV?
MMPX-MXB42MV is listed with: 4 in / 2 out; 4K60; HDMI 2.0b; Up to 4K2K@60 4:4:4. Full connections are in the specification table on this page.
When should I choose a matrix instead of a switcher, splitter, or extender?
Choose a matrix when several sources must reach several displays independently — any input to any output. A switcher is several sources to one screen. A splitter copies the same picture to every screen. An extender is a transmitter/receiver pair for one distant display. A converter only changes format. AV over IP is for network endpoints, not a fixed-port rack frame.
What should I send for a correct quote on MMPX-MXB42MV?
WhatsApp MEGRA with model MMPX-MXB42MV, the client name, and the location. Add room type and I/O or run length if you already know them.
What I/O size is this matrix?
MMPX-MXB42MV is listed as 4 in / 2 out. Confirm sources, displays, and whether you need HDBaseT or HDMI-only outputs.
