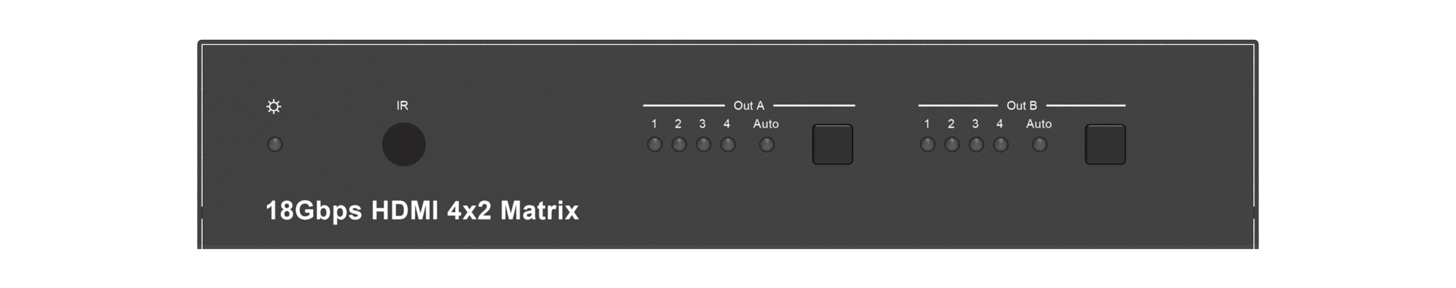

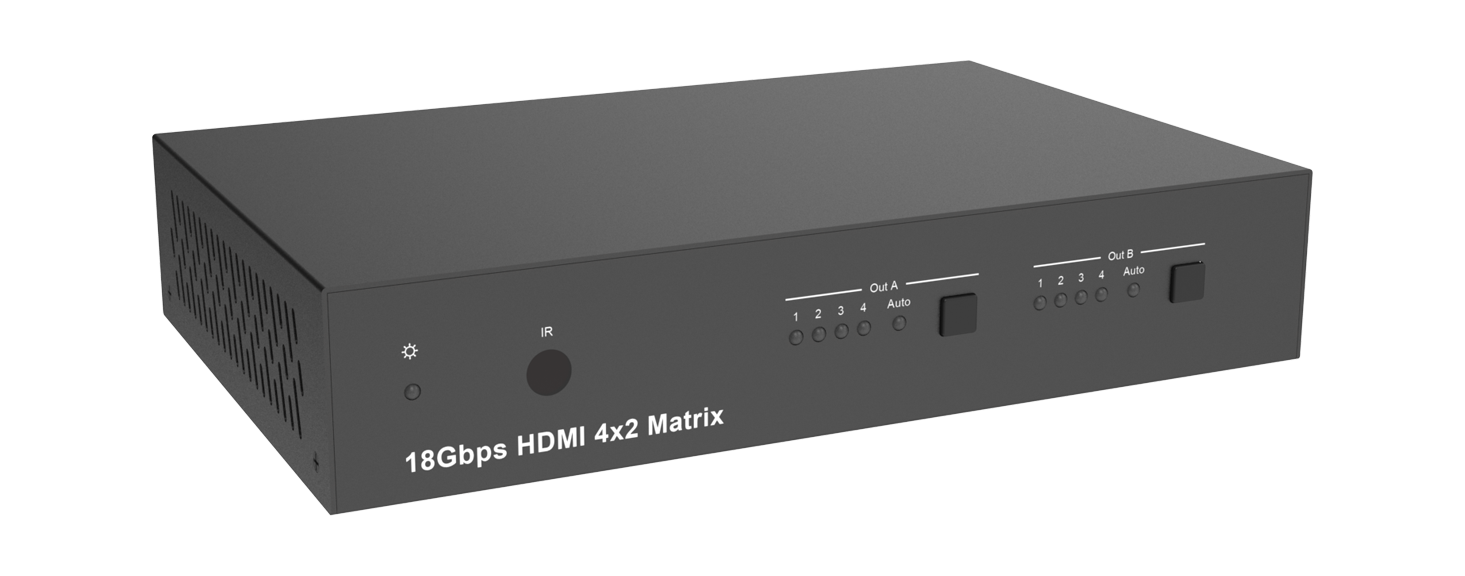

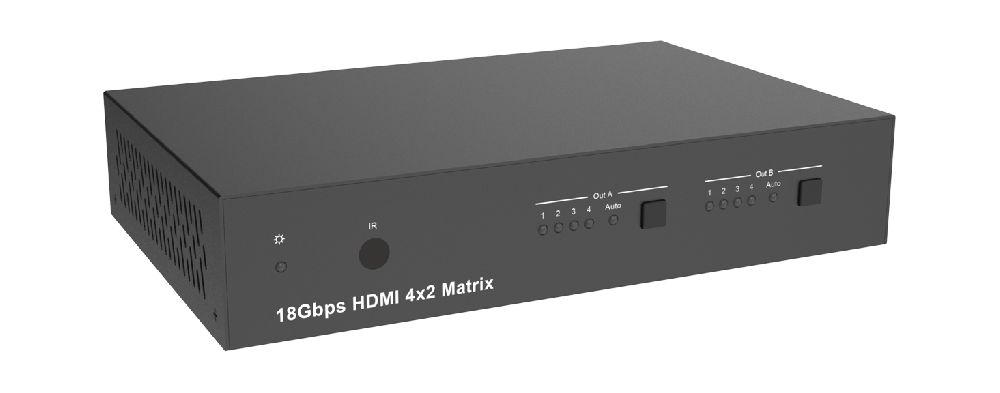

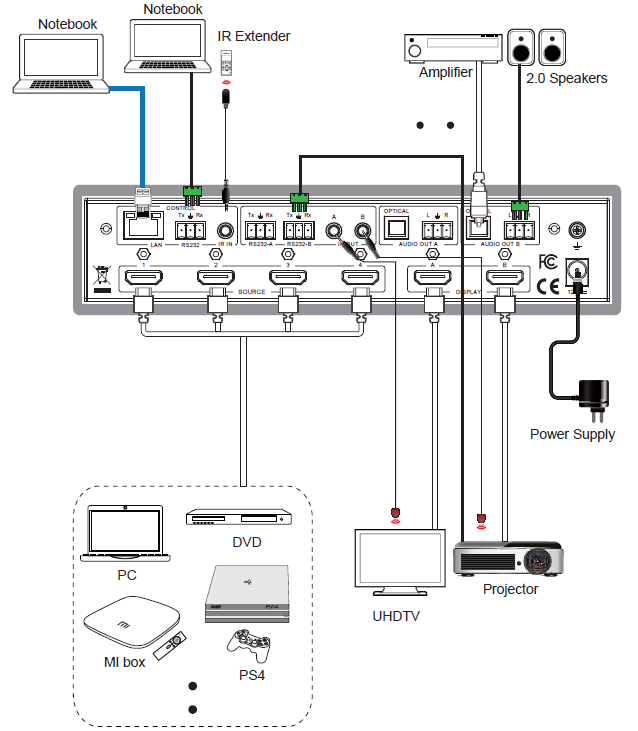

4x2 HDMI Matrix
MMPX-MXB42AP
4x2 HDMI Matrix (MMPX-MXB42AP) is a MEGRA MATRIX matrix switcher that routes any selected input to any selected output.
It is for integrators and facility owners who need any source on any display — meeting rooms, control rooms, lecture halls, and multi-display lobbies.
Key facts from this model: 4 in / 2 out; 4K; HDMI 2.0.
- HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Four 18G HDMI 2.0 video inputs supporting up to 4K60 444 resolution
- Two 18G HDMI 2.0 video outputs supporting up to 4K60 444 resolution
- Both outputs can be individually scaled for 4K→1080p or HDBaseT mode
- Automatic RS232, CEC and IR control of the display device power state
- Two sets of de-embedded audio analogue and TosLink outputs, for both outputs
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolution | 4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p,1080i,720p,720i,480p,480i All HDMI 3D TV formats All PC resolutions including 1920x1200 |
| 3D Support | Yes |
| Output Scaling | 4K to 1080p 4K to HDBaseT (Down-scale to no more than 10.2Gbps) |
| Color Space | RGB,YCbCr4:4:4,YCbCr4:2:2,YCbCr 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)] 8-bit [4K60Hz (YCbCr4:4:4)] |
| HDMI Audio Formats | PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| HDR formats | HDR10, HDR10+, Dolby Vision, HLG |
| L/R Audio Formats | PCM2.0CH (Note: If ARC function is turned on, the audio port will mute.) |
| Optical Audio Formats | PCM2.0, Dolby Digital / Plus, DTS |
| Audio Frequency Response | 20Hz to 20kHz, ±3dB |
| RS232 Control | 57600, No parity, 8 data bits, 1 stop bit, No handshaking |
| RS232-A and RS232-B | Configurable from 4800 to 115200 baud; 7 or 8 bits; none, odd or even parity and 1 or 2 stop bits. |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connections | |
| Input Ports | 4x HDMI Type A [19-pin female] |
| Output Ports | 2x HDMI Type A [19-pin female] 2x L/R audio out [3-pin phoenix connector] 2x OPTICAL audio out [S/PDIF] 2x RS232 A/B [3-pin phoenix connector] |
| Control port | 1x LAN [RJ45] 3x RS232 [3-pin phoenix connector] 1x IR IN [3.5mm Stereo Mini-jack] 2x IR OUT A/B [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 218mm[W]×140mm[D]×43mm[H] |
| Weight | 1050g |
| Power Supply | Input: AC100~240V 50/60Hz Output: DC12V/1A (Locking connector) |
| Power Consumption (Max) | 4.3W (max) |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
| Resolution / Cable length | 4K60 -Feet / Meters / 4K30-Feet / Meters / 1080P60 - Feet / Meters |
| HDMI IN / OUT | 16ft / 5M / 32ft / 10M / 50ft / 15M |
Questions about this model
What job is 4x2 HDMI Matrix for?
4x2 HDMI Matrix is a MEGRA MATRIX matrix switcher. It routes any selected input to any selected output so several sources can serve several displays at the same time.
What are the key facts and limits of MMPX-MXB42AP?
MMPX-MXB42AP is listed with: 4 in / 2 out; 4K; HDMI 2.0. Full connections are in the specification table on this page.
When should I choose a matrix instead of a switcher, splitter, or extender?
Choose a matrix when several sources must reach several displays independently — any input to any output. A switcher is several sources to one screen. A splitter copies the same picture to every screen. An extender is a transmitter/receiver pair for one distant display. A converter only changes format. AV over IP is for network endpoints, not a fixed-port rack frame.
What should I send for a correct quote on MMPX-MXB42AP?
WhatsApp MEGRA with model MMPX-MXB42AP, the client name, and the location. Add room type and I/O or run length if you already know them.
What I/O size is this matrix?
MMPX-MXB42AP is listed as 4 in / 2 out. Confirm sources, displays, and whether you need HDBaseT or HDMI-only outputs.
