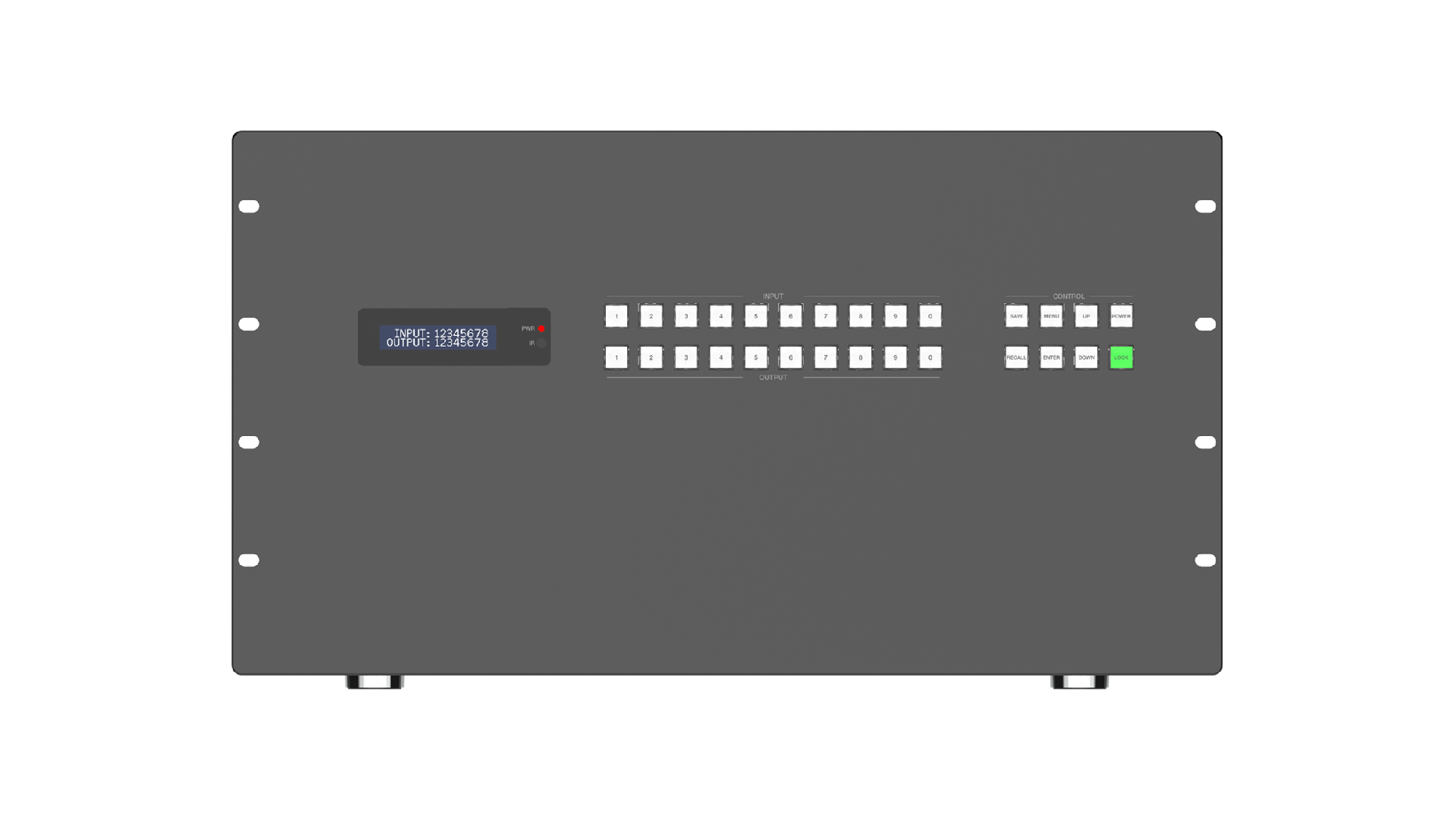

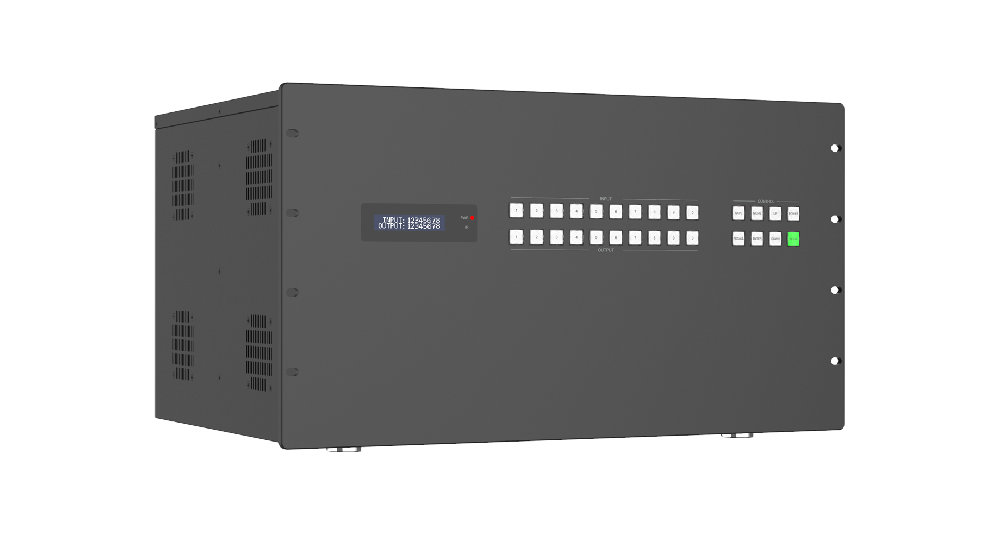

36x36 Seamless Modular Matrix
MMPX-MX93636M
36x36 Seamless Modular Matrix (MMPX-MX93636M) is a MEGRA MATRIX matrix switcher that routes any selected input to any selected output.
It is for integrators and facility owners who need any source on any display — meeting rooms, control rooms, lecture halls, and multi-display lobbies.
Key facts from this model: 36 in / 36 out; 4K; 15m class.
- HDMI 2.0b and HDCP 2.2 compliant
- HDMI 18Gbps video bandwidth, up to 4K60 YCbCr 4:4:4 24bit
- Pluggable card structure (One card with four channels)
- Support 8/16/36/72 channel video signal inputs and outputs
- Multiple input/output cards with HDMI, DVI-U (DVI/YPbPr/CVBS), VGA, 3G/HD/SD-SDI, HDBaseT and optical fiber
- Video resolution up to 1920×1200p60hz (2K series card), 3840x2160p60hz (4K series card)
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 1.4 (2K series card), HDMI 2.0b (4K series card) |
| HDCP Compliance | HDCP 1.4 (2K series card), HDCP2.2 (4K series card) |
| Video Bandwidth | 600MHz/18Gbps |
| Video Resolution | 1920x1200p60Hz (2K series card) 3840x2160p60Hz 4:4:4 (4K series card) |
| Color Space | RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 |
| Color Depth | 2K series card: 8/10/12-bit (1080P60Hz) 4K series card: 8/10/12-bit (4K30Hz); 8-bit (4K60Hz 4:4:4) |
| HDMI Audio Formats | HDMI audio: LPCM 2.0 / 5.1 / 7.1CH Analog audio: LPCM 2.0CH |
| Transmission Distance | HDMI: 1080P/15 meters, 4K30/10 meters, 4K60/5 meters HDBT: 1080P/70 meters/100 meters/150 meters; 4K/40 meters/70 meters/120 meter |
| ESD Protection | Human body model: ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connections | |

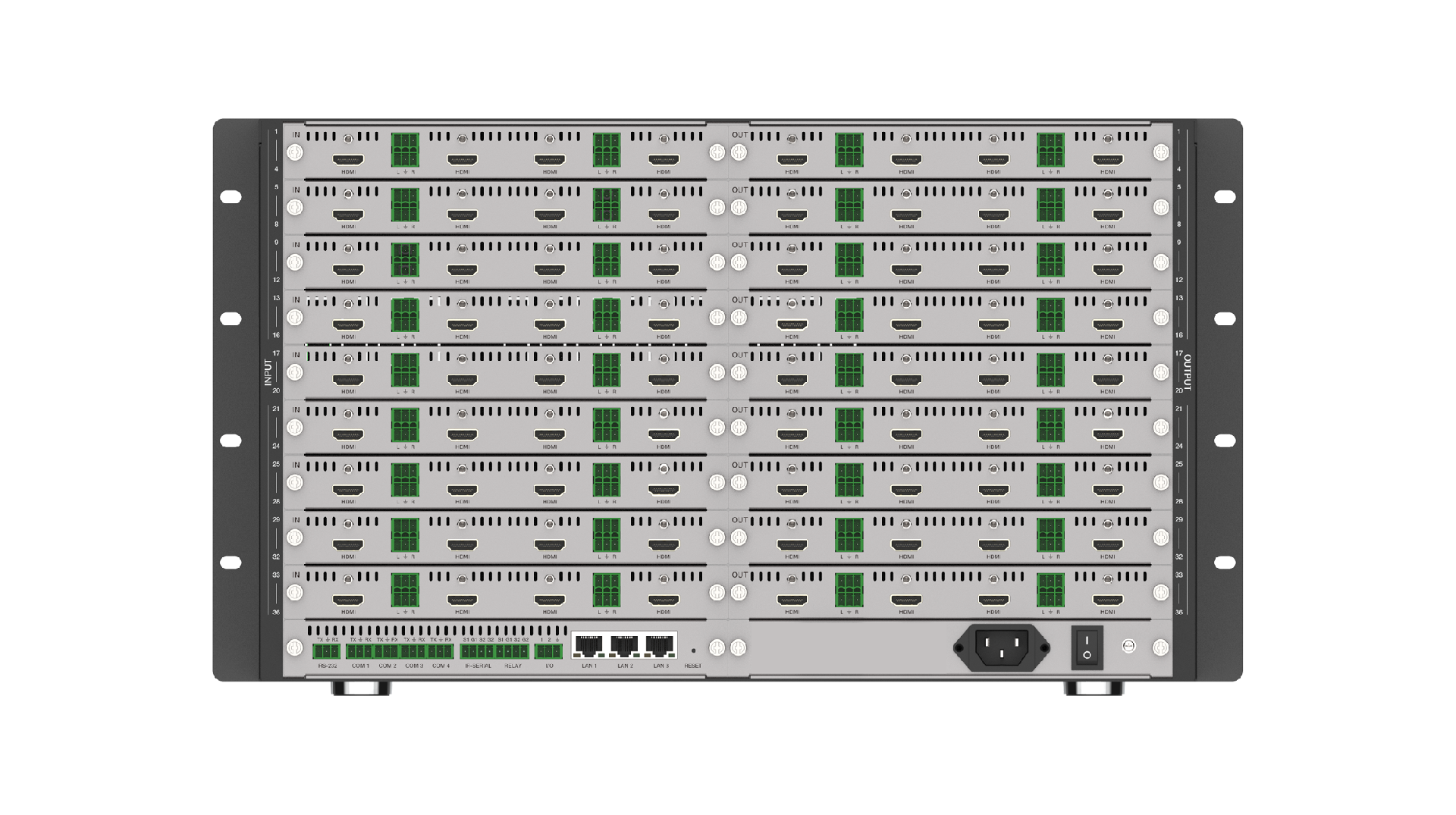

| Input Ports | 2x Input card (8x8 Matrix); 4 x Input card (16x16 Matrix); 9x Input card (36x36 Matrix) |
| Output Ports | 2x Output card (8x8 Matrix); 4 x Output card (16x16 Matrix); 9x Output card (36x36 Matrix) |
| Control Ports | 1x Master control card, including the following ports： 1x RS-232 [3-pin Phoenix Connector] 4x COM [3-pin Phoenix Connector] 1x IR-SERIAL [4-pin Phoenix Connector] 1x RELAY [4-pin Phoenix Connector] 1x I/O [3-pin Phoenix Connector] 1x RESET [Reset button for the central control system] 3x LAN [RJ45] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 36x36 Matrix: 483mm (W)x378mm (D)x266mm (H) |
| Weight | 36x36 Matrix: 15.4kg (No input/output cards are included |
| Power Supply | Input: AC100 - 240V 50/60Hz Output: DC 12V/17 |
| Power Consumption | 8x8 Matrix: 35W~90W (Match with different input/output cards) 16x16 Matrix: 70W~170W (Match with different input/output cards) 36x36 Matrix: 100W~350W (Match with different input/output cards) |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 36x36 Seamless Modular Matrix for?
36x36 Seamless Modular Matrix is a MEGRA MATRIX matrix switcher. It routes any selected input to any selected output so several sources can serve several displays at the same time.
What are the key facts and limits of MMPX-MX93636M?
MMPX-MX93636M is listed with: 36 in / 36 out; 4K; 15m class. Full connections are in the specification table on this page.
When should I choose a matrix instead of a switcher, splitter, or extender?
Choose a matrix when several sources must reach several displays independently — any input to any output. A switcher is several sources to one screen. A splitter copies the same picture to every screen. An extender is a transmitter/receiver pair for one distant display. A converter only changes format. AV over IP is for network endpoints, not a fixed-port rack frame.
What should I send for a correct quote on MMPX-MX93636M?
WhatsApp MEGRA with model MMPX-MX93636M, the client name, and the location. Add room type and I/O or run length if you already know them.
What does modular mean on this matrix?
MMPX-MX93636M is listed as a modular matrix. Card and chassis details are on this specification table — confirm the I/O cards you need on WhatsApp.
