Best for
Solution-level Novastar setups where several products work together for a defined LED use case.
Novastar XR Solution
When NovaStar and xR collide - Join our xR story
xR is a type of virtual production technology that integrates virtual reality and extended reality, simulating the effect of a real scene in a virtual 3D space. Compared with traditional green screen production, it can reduce complicated post-production work, and at the same time allow actors to interact with the virtual elements of the scene, helping achieve a more realistic and natural production effect. Owing to the advantages of self illumination and simulation of real light and shadow reflection, recent years have seen rapid growth in LED display applications in the virtual production sector.
xR Solution

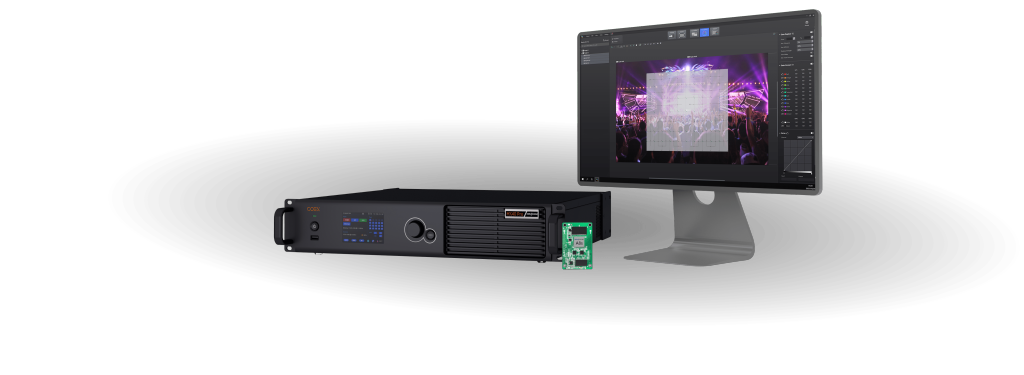

VMP+MX40 Pro + A10s Pro
-
NovaStar’s xR solution is specially designed for camera shooting scenarios, and can effectively solve problems with black field and scan lines. This solution features industry-leading image boosting technology, which helps users create shooting scenes more comparable to real environments. This solution is driven by NovaStar’s all-new LED control platform VMP, which integrates design, monitoring, and management, bringing users the ultimate control experience.
-

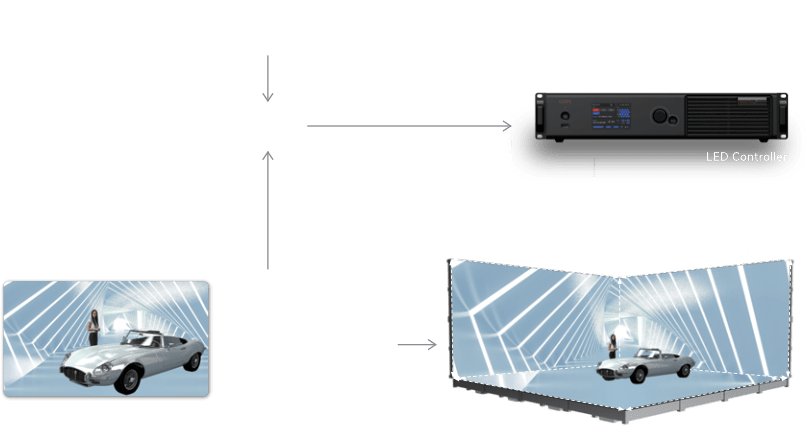

xR Workflow
Key Features
-
Frame MultiplexingSupports frame multiplexing allowing users to reframe multiple video feeds in the same time field. Utilizing the camera's genlock phase offset, it becomes possible to output multiple effects simultaneously within a single shooting scene, improving work efficiency and reducing cost.
-
Shutter FitSupports synchronization of LED display refresh rate and camera shutter parameters, allowing the LED display to automatically adapt to camera expo- sure time and frequency, alleviating scan lines.
-

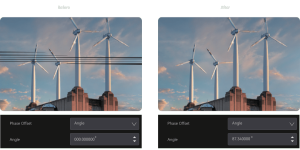

Phase OffsetAdjusting the output phase offset value allows the LED display and camera to perfectly match. This helps prevent black field and image tearing from being captured by the camera when shooting the LED display.
-

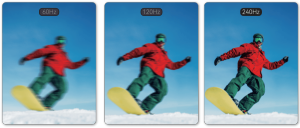

HFRSupports high frame rates up to 120Hz, 144Hz, or even 240Hz. This allows smooth representation of video featuring high-speed moving objects.
-
Color ReplacementSupports unrestricted color replacement, with minimal impact on other colors.
-
14CH Color CorrectionPrecise adjustment of hue, saturation, and brightness of primary, secondary and tertiary colors, with basic adjustment of black and white, ensuring perfect colors that retain their intended beauty.
-

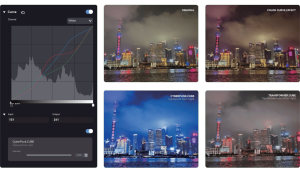

Color Curve + 3D LUTCurve adjustment and importing of 3D LUT files let you manage color in creative and artistic ways, just like a Hollywood colorist.
-

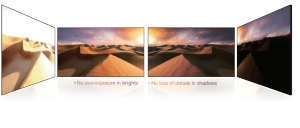

Contrast + Black levelAllows independent adjustment of highlights and shadows by contrast and black level, avoiding overexposure in bright content but delivering rich details in dark content.
-

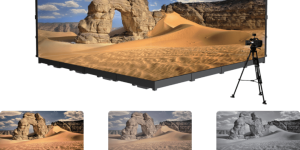

Scenario PresetsDifferent display requirements are necessary to meet the needs of different shooting scenarios. Presets allow users to save settings in advance, including brightness, color temperature, gamma, and more, all retrievable with a single button press.
-
Dual Image BoosterThe all-new MX series solution is equipped with Image Booster 2.0 and Dynamic Booster technologies, which can improve the performance of grayscale, color and contrast ratio, creating an immersive view to fulfill the requirements necessary for xR applications.

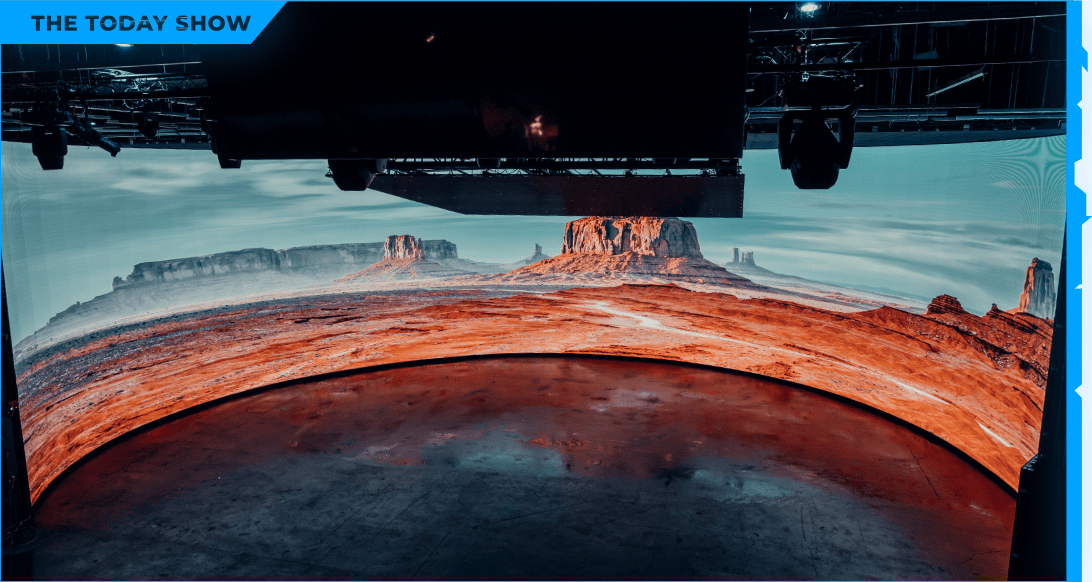

Case Studies
Click the button below to contact the company featured in this case study and view their showroom.
-
The visual data was processed from Unreal Engine to create hyper-realistic HDR visuals.
This video is shared courtesy of our industry partner Diamond View, USA
-
Promosa Management Inc.It is shared courtesy of our industry partner Promosa Management Inc. Products of this case: 2×MCTRL4K, 240×A8s. Screen: 30x8 panels (Gloshine MV2.9), 15m x4m with a 6 degree curve, 5040 x 1344 pixels.
-
Promosa Management Inc.It is shared courtesy of our industry partner Promosa Management Inc. Products of this case: 1×MCTRL4K, 1×CVT4K, 104×A8s. Screen: 13x8 panels (Gloshine MV2.9), 6.5m x4m with a 3 degree curve between panels, 2184 x 1344 pixels.
-

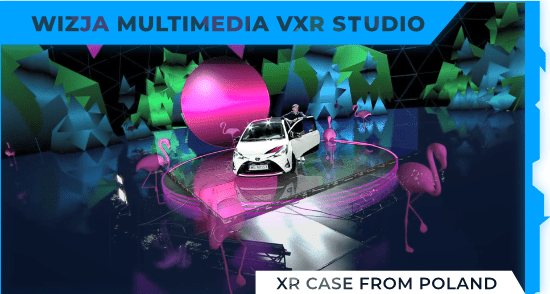

Wizja Multimedia VxR studioIt is shared courtesy of our industry partner Wizja Multimedia Poland.
Products of this case: 1×MCTRL4K, 1×CVT4K, 104×A8s. Screen: 13x8 panels (Gloshine MV2.6mm), 6.5m x4m with a 3 degree curve between panels, 2184 x 1344 pixels. -

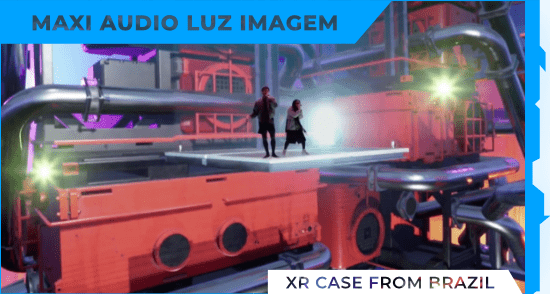

MAXI AUDIO LUZ IMAGEMIt is shared courtesy of our industry partner from Brazil.
Products of this case:
2×MCTRL4K,1 ×VX 4x4 disguise,1 ×Tracking mosys. 62MTS.
Screen: Absen 3.9mm Pl lite.
