Best for
Projects that need video processing, scaling, switching, or multi-input control for LED walls — control rooms, events, and larger commercial displays.
Entire series supports real 4K, 4096×2160@60Hz，HDMI 2.0 connector.
Available configurations: 4 ports / 6 ports / 10 ports / 20 ports.
· VX2000 Pro supports 12 x 2K, 6 x DL, or 3 x 4K layers
VX400 Pro, VX600 Pro, VX1000 Pro supports 6 x 2K, or 1 x 4K + 2 x 2K layers.
· Entire series supports 256 presets.

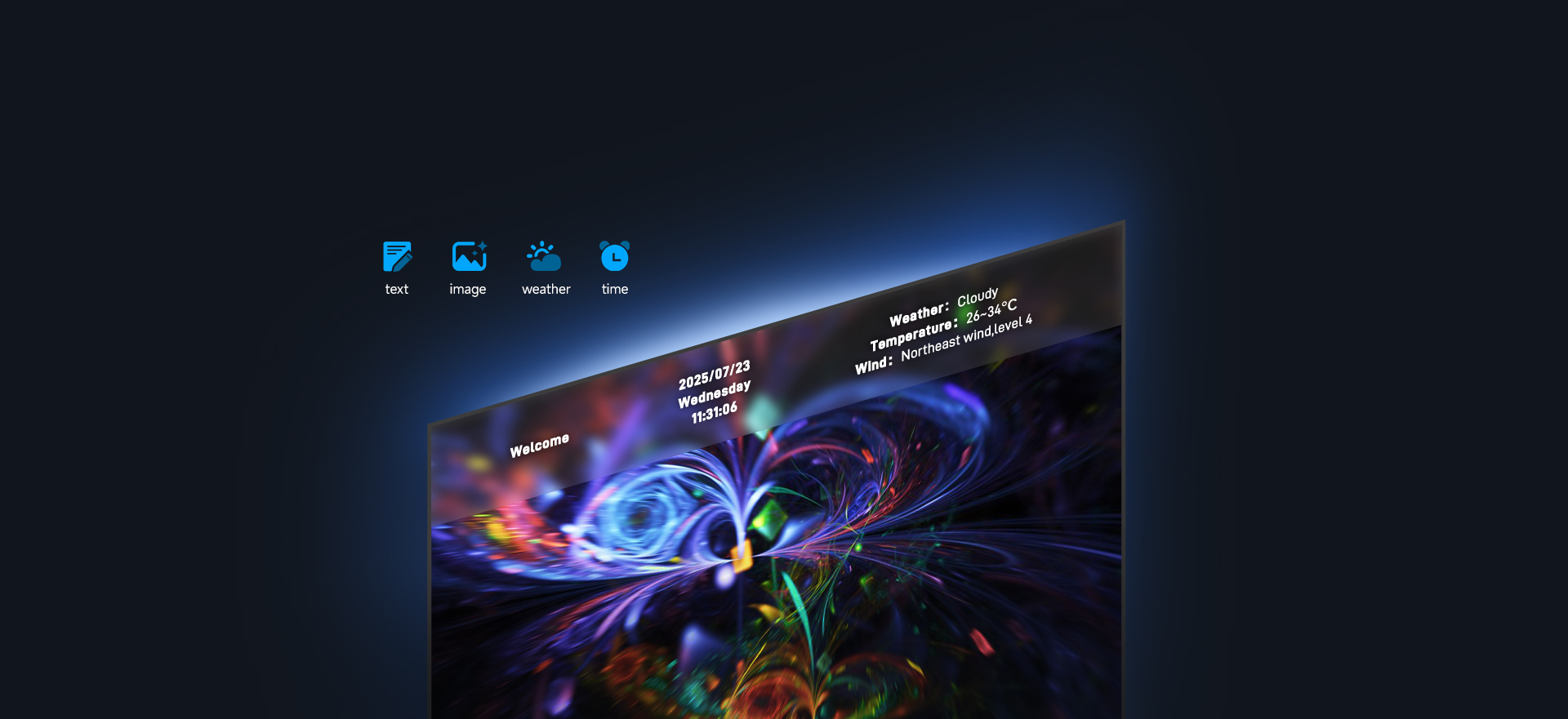

Now supports text, image, weather and time — with customizable settings to fit your needs.
Insert a USB drive for instant plug-and-play convenience and use a USB source as an input source,
allowing for convenient testing and video playback.
Without rectangle restriction, loading capacity is calculated based on the physical cabinet,
enhancing Ethernet port utilization and making configuration easier.
Compatible with macOS, Windows and Web;
One software controls all;
Visualized control interfaces. User-friendly experience

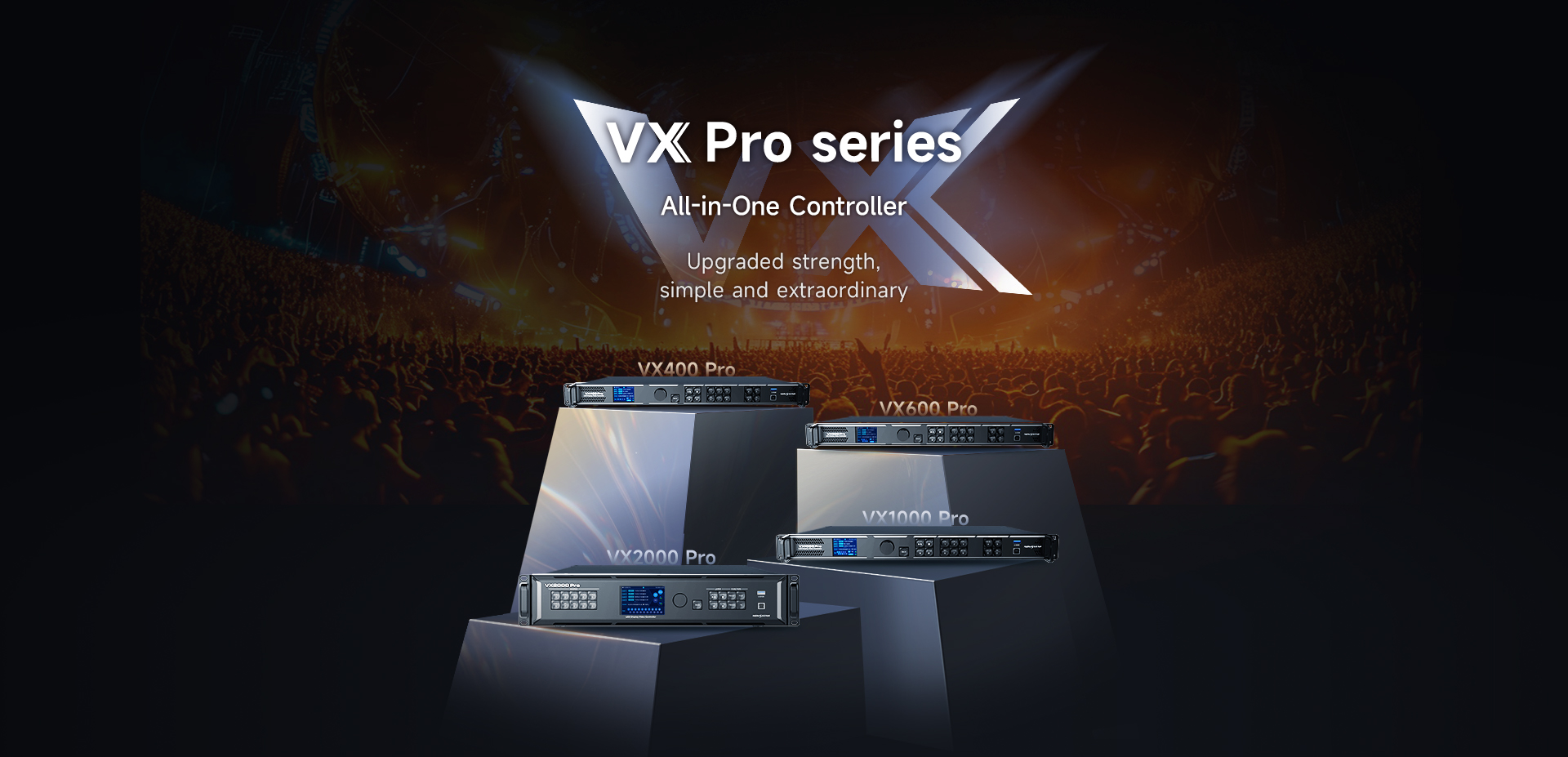

Device Model | VX400 Pro | VX600 Pro | VX1000 Pro | VX2000 Pro |

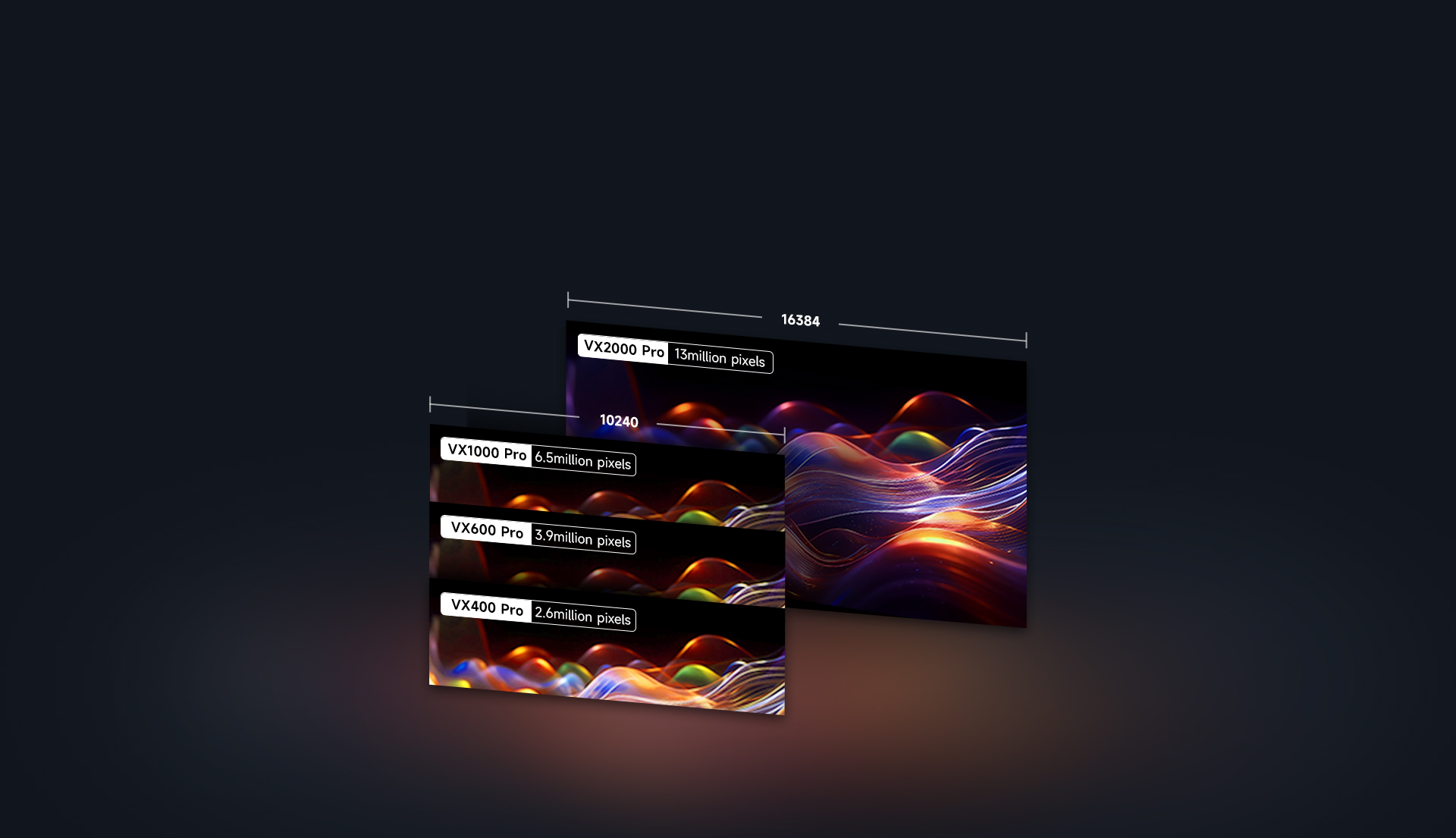

Loading Capacity | 2.6 million pixels | 3.9 million pixels | 6.5 million pixels | 13 million pixels |
Max Width (pixels) | 10240 | 10240 | 10240 | 16384 |
Max Height (pixels) | 8192 | 8192 | 8192 | 8192 |
Layers | 6 *2K×1K | 6 *2K×1K | 6 *2K×1K | 12 *2K×1K |
Input Connectors | 1× HDMI 2.0（IN&LOOP） | 1× HDMI 2.0（IN&LOOP） | 1× HDMI 2.0（IN&LOOP） | 1× 12G-SDI(IN&LOOP) |
Output Connectors | 4× Ethernet Ports | 6× Ethernet Ports | 10× Ethernet Ports | 20× Ethernet Ports |
Presets | 256 | 256 | 256 | 256 |
Control Connectors | 2× Ethernet Port | 2× Ethernet Port | 2× Ethernet Port | 2× Ethernet Port 1× USB |
