Novastar LED display

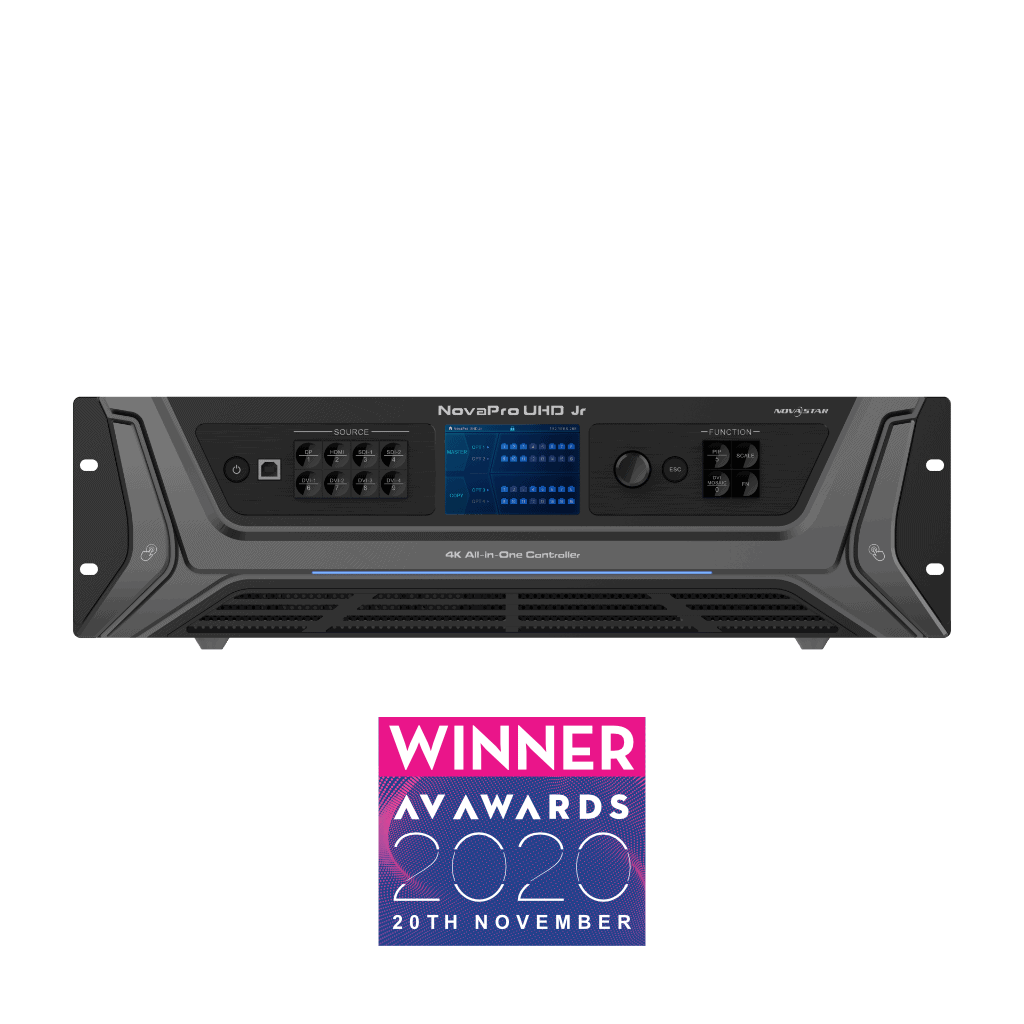

NovaPro UHD Jr
All-in-One series
HDMI / DP / DVI / 12G-SDI
10,400,000 pixels
3 Layers + 1 BKG
HDR10-Optima, Low Latency
Have a question? Find a Distributor

Description

The NovaPro UHD Jr is a NovaStar’s new all-in-one controller that features excellent video processing capabilities, sending card functions and LED screen configurations.

The NovaPro UHD Jr provides a variety of video input connectors, supporting 4K×2K@60Hz image processing and sending capabilities.

With the help of smart control software V-Can from Novastar, the NovaPro UHD Jr can enable richer image mosaic effects and faster and easier operations.

The NovaPro UHD Jr can send the processed video to the LED screen via Neutrik Ethernet ports and optical fiber ports. Thanks to its powerful video processing capabilities and sending functions, the NovaPro UHD Jr is well suited for stage control systems, conference sites, activities, exhibition sites and other high-end rental applications as well as fine-pitch LED displays.

Features

● A variety of inputs and outputs
 Provides 1 × DP 1.2, 4 × DVI, 1 × HDMI 2.0 with loop output and 2 × 12G-SDI with loop output.
● More output connectors, larger loading capacity
 Provides 16 × Neutrik Ethernet output and 4 × optical fiber output, with loading capacity up to 10,400,000 pixels.
 The maximum width is 16K and maximum height is 8K.
● DVI mosaic
 An input source can be made up of at most 4 DVI input sources.
● HDR output
● Greatly enhances display image quality, providing more clear and vivid image.
● Decimal frame rates
 The supported frame rates are 23.98, 29.97 and 59.94.
● Low-latency output
 Reduces the latency from sending card to receiving card by 2 frames when the device is used together with NovaStar Armor series receiving cards
 (A8/A8s/A9s/A10s Plus).
● Customized BKG settings
 Supports pure color and image BKGs.
● Personalized image scaling
 Supports 3 kinds of image scaling modes: full screen, pixel to pixel, custom.
● Capture function
 Captures input source image which can be used as a BKG image.
● Image mosaic
 Up to 4 NovaPro UHD Jr units can be connected to load a super-large screen when used with the video distributor.
● V-Can (smart control software from NovaStar) supported
● 10 presets
 At most 10 user presets can be created and saved as templates which can be used directly and conveniently.
● EDID management supported
 Supports custom EDID and standard EDID.
Input

Connector

Quantity

Description

DVI

4

Four DVIs are all single-link DVI connectors by default.
− 4x DVI inputs
− Each DVI: Input resolution up to 2048×1152@60Hz, downward compatible
− 4 DVI input sources constitute 1 input source (DVI MOSAIC).
− Max. width: 3840 pixels. Max. height: 3840 pixels
In dual-link mode.
− DVI 1 and DVI 3 are dual-link DVI connectors while DVI 2 and DVI 4 are unavailable.
− DVI 1/DVI 3: Input resolution up to 3840×1080@60Hz, downward compatible.
− 2 DVI input sources constitute 1 input source (DVI MOSAIC).
− Max. width: 3840 pixels. Max. height: 3840 pixels
Supports input resolution settings.
HDCP 1.4 compliant
Does not support interlaced signal inputs.

12G-SDI

2

Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G) and ST-292 (HD) standard video inputs.
Input resolution up to 4096×2160@60Hz, downward compatible
Supports interlaced signal inputs.
Does not support input resolution and bit depth settings.
Maximum resolution supported: Max. width: 8192 pixels. Max. height: 8192 pixels

DP 1.2

1

Input resolution up to 3840×2160@60Hz, downward compatible
HDCP 1.3 compliant
Supports input resolution settings.
Maximum resolution supported: Max. width: 8192 pixels. Max. height: 8192 pixels
Does not support interlaced signal inputs.

HDMI 2.0

1

Input resolution up to 3840×2160 @60Hz, downward compatible
HDCP 2.2 compliant
Supports input resolution settings.
Maximum resolution supported: Max. width: 8192 pixels. Max. height: 8192 pixels
Does not support interlaced signal inputs.
Output

Connector

Quantity

Description

Ethernet port

16

16x Neutrik Gigabit Ethernet output connectors, allowing for a loading capacity of up to 10,400,000 pixels.
Maximum loading capacity: Max. width: 16384 pixels, max. height: 8192 pixels
Maximum loading capacity of a single Ethernet port:
− 8-bit input source: 650,000 pixels.
− 10-bit/12-bit input source: 320,000 pixels.

OPT 1–4

4

10G optical connectors
Copy and hot backup modes are available when four OPT ports are all used for output.
− OPT 1 transmits data of Ethernet ports 1–8.
− OPT 2 transmits data of Ethernet ports 9–16.
− OPT 3 serves as the copy/hot backup for OPT 1.
− OPT 4 serves as the copy/hot backup for OPT 2.

HDMI 2.0 LOOP

1

HDMI loop output
 Only 1 level of device cascading supported
HDCP 2.2 compliant
EDID management supported

12G-SDI LOOP

2

SDI loop output

MONITOR

1

An HDMI connector dedicated for output monitoring
Resolution up to 1920×1080@60Hz
Control

Connector

Quantity

Description

ETHERNET

1

Connect to the PC for communication, or connect to the Web for device control.

USB (Type-B)

1

Connect to the PC for device control.
Used as the input connector to connect a NovaPro UHD Jr unit for image mosaic

USB (Type-A)

1

Used as the output connector to connect a NovaPro UHD Jr unit for image mosaic

GENLOCK IN-LOOP

1

UConnect to a synchronization signal to synchronize all the connected NovaPro UHD Jr units.

RS232

1

Connect to the central control device.

Video Controller

NovaLCT

Software

SmartLCT

MEGRA guidance

NovaPro UHD Jr for LED display projects in Malaysia

Short buyer notes from MEGRA (MTV Digital Technology Sdn Bhd, Port Klang). Specs above stay as published. Use this section only to decide fit and next step.

Best for

Projects that need video processing, scaling, switching, or multi-input control for LED walls — control rooms, events, and larger commercial displays.

When to use

Choose NovaPro UHD Jr when the job is more than simple send/play: inputs, layers, or higher-end processing sit in the processor class.

What it connects to

Video sources on the input side and Novastar sending / receiving path on the LED side. System design should follow the I/O list in the specs above.

Need help choosing? Tell MEGRA your screen size, indoor/outdoor, and content type. We help match the right Novastar controller or player.
