Novastar LED display

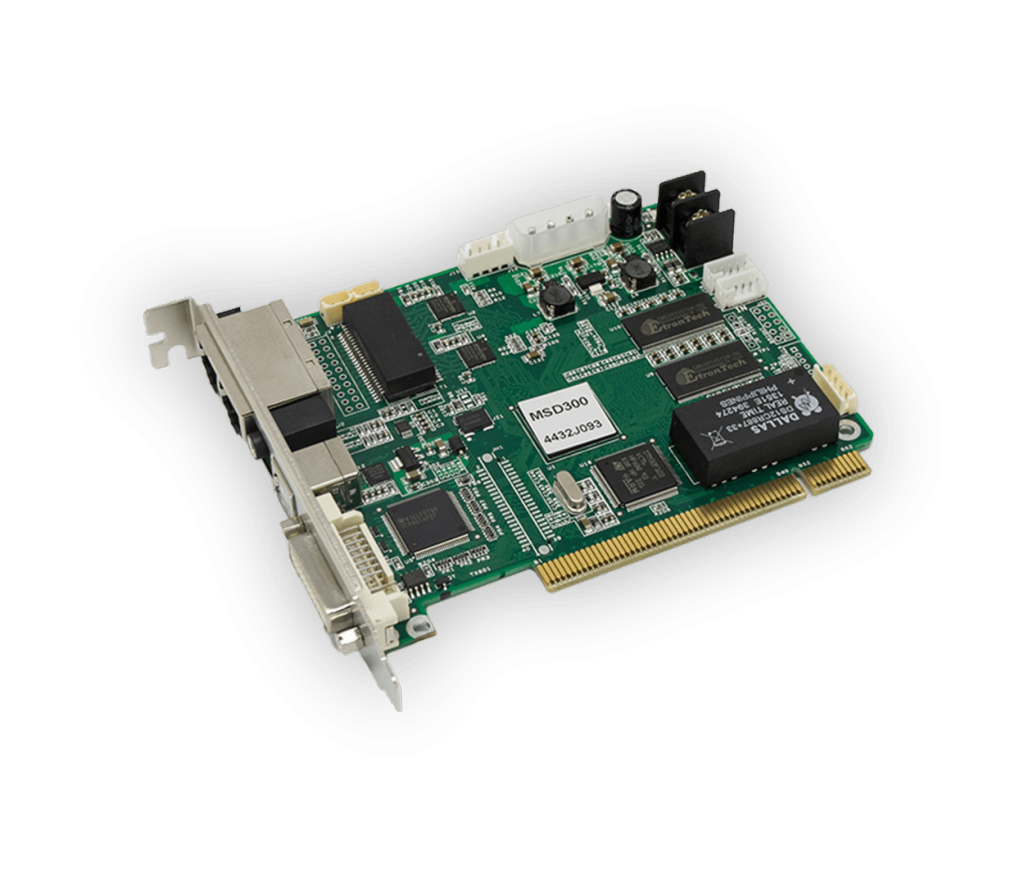

MSD300
Sending Card
1280×1024 Resolution
DVI
Have a question? Find a Distributor

Description

● DVI video input
● Audio transmission
● Dual-Ethernet output, with dual-Ethernet cable hot backup and multiple controller hot backup.
● USB port control, for cascading and control of multiple units.

1.3 million pixel loading capacity, with resolutions of 1280×1024@60Hz, 1024×1200@60Hz, 1600×848@60Hz, 1970×712@69Hz, 2048×668@60Hz.

CE /  RoHS / EAC / FCC / IC

Features

● 1 × DVI video input and 1 × audio input
● 2 × Gigabit Ethernet output
● 1 × light sensor connector
● Supports the new generation of pixel level calibration technology from NovaStar to provide a fast and efficient calibration process.
● Supports a variety of video formats.
Indicator

Red

Device operating indicator. Working status:
● On: The power supply is normal.
● Off: The power is not supplied or the power supply is abnormal.

Green

Device status indicator. Working status:
● Slow flashing: Video input unavailable
● Normal flashing: Video input available
● Fast flashing: The screen is displaying the startup image.
● Breathing: The Ethernet port redundancy has taken effect.
Input

DVI×1

● Single-link DVI input connector
● Supported maximum resolution: 1920×1200@60Hz, downward compatible
● Resolution customizable
○ Maximum width: 3840 pixels
○ Maximum height: 1920 pixels

AUDIO

Audio input connector
Output

RJ45×2

● 2 Gigabit Ethernet ports
● Maximum loading capacity of a single port: 650,000 pixels
● Supports redundancy between Ethernet ports.
Control

USB (Type-B)

Connects to the PC.

UART IN/OUT

Input/Output connector for cascading devices

Function Connector

LIGHT SENSOR

Connects to a light sensor to monitor ambient brightness, allowing for automatic brightness adjustment of LED display.

Power Supply

DC 3.3V~5.5V

DC power connector

Controller

MEGRA guidance

MSD300 for LED display projects in Malaysia

Short buyer notes from MEGRA (MTV Digital Technology Sdn Bhd, Port Klang). Specs above stay as published. Use this section only to decide fit and next step.

Best for

LED display projects that need a dedicated sending / controller unit to drive receiving cards — fixed installs, stage, and commercial screens.

When to use

Choose MSD300 when your system design calls for a classic Novastar sending controller, paired with matching receiving cards — not a standalone media-only player.

What it connects to

Novastar receiving cards over Ethernet, and the upstream source / computer side of your control setup. Exact ports follow the product specs above.

Need help choosing? Tell MEGRA your screen size, indoor/outdoor, and content type. We help match the right Novastar controller or player.
