Best for
LED display projects that need a dedicated sending / controller unit to drive receiving cards — fixed installs, stage, and commercial screens.
Description

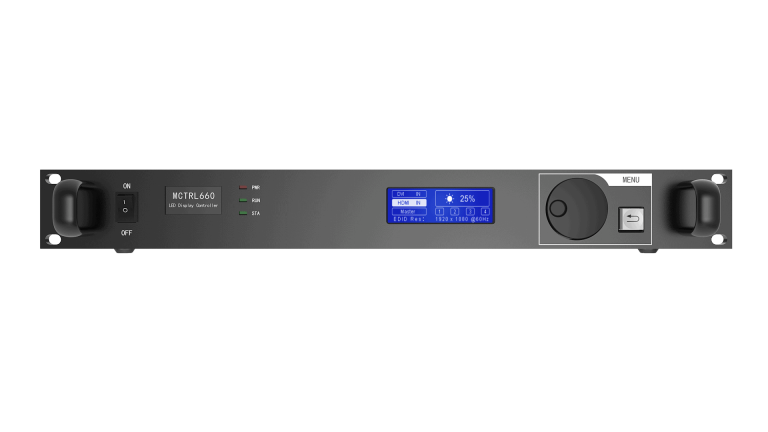

MCTRL660 is a controller developed by NovaStar with a single-unit loading capacity of 1920×1200@60Hz. MCTRL600 utilizes UART to cascade and control multiple units. Suitable for a variety of applications, especially rental and fixed installations such as stage broadcasts, monitoring centers, sports arenas, and more.
True hot backup, No flickering, no blackout
One-button upload of settings and parameters
● 12bit/10bit HDMI input, DVI input
● HDMI.DVI loop output for cascading or monitoring
● HDCP Blue-ray directly input
● 8bit video source loading capacity of 1920×1200@60Hz.
● 12bit video source loading capacity of 1440×900@60Hz
Support for custom resolutions: 3840 pixels of H resolution, 3840 pixels of V resolution
Supports cascading for control of multiple units
Support for multiple signal formats: RGB, YCrCb4:2:2, YCrCb4:4:4
Certifications, CE, RoHS, FCC, UL, EAC
Features
● 1 × DVI input
● 1 × HDMI input
● 4 × Gigabit Ethernet outputs
● Supports the new generation of NovaStar calibration technology, which is fast and efficient.
● Supports resolutions up to 1920×1200@60Hz and downward compatibility.
● Multiple controllers can be cascaded.
● Supports 18-bit grayscale processing and display.
● Manual screen brightness adjustment, which is fast and convenient.
● Quick screen configuration without using a computer.
● Adopts an innovative architecture to implement smart screen configuration, allowing a screen to be configured within 30 seconds and greatly shortening the stage preparation time.
● Adopts NovaStar G4 engine to realize a perfect display image with no flickering or scanning lines, as well as fine quality and good sense of depth.
● Supports a variety of video formats, as described in Figure 2-1.
Connector | Connector Name | Description |
Input | DVI IN | ● Single-link DVI connector |
AUDIO | Audio input connector | |
HDMI IN | ● HDMI 1.3 compliant | |
Output | RJ45 × 4 | ● 4 Gigabit Ethernet outputs |
Control | TO PC | Type-B USB port for connecting to PC |
UART IN | Input port for cascading devices | |
UART OUT | Output port for cascading devices. Up to 20 controllers can be cascaded. | |
Power | AC 100V~240V-50/60Hz | |
