Outstanding Performance

Unlocking New Horizons for Media

2.6 million Loading Capacity, the All-new Industrial Controller

Integrated Design: Industrial PC + Sending Card

Reduced system wiring for simpler setup and enhanced reliability.

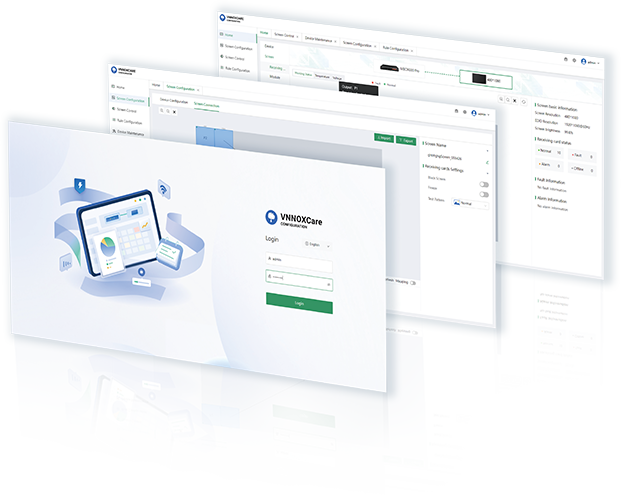

Intuitive Web Interface Software

Free from System Constraints

Supports Windows and Linux system

Supports Web-based screen configuration and maintenance
- Windows
- Linux

Rich Peripherals

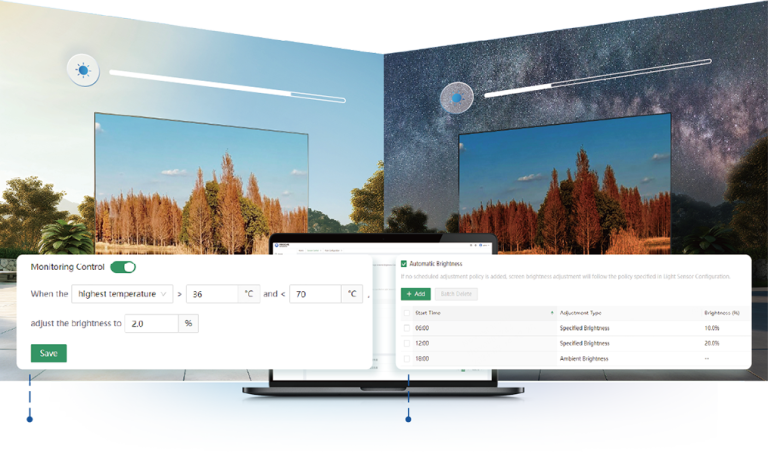

Intelligently senses ambient light and receiving card temperature to automatically adjust LED display brightness.

【Temperature Monitoring】Regulation Strategy

Automatic protection to prevent the display temperature from getting too high
【Specific Brightness】, 【Ambient Brightness】 Regulation Strategy

Simple, flexible setup, suitable for actual environment

SNMP System Monitoring

Supports SNMP V2, V3, reducing management costs and improving management efficiency

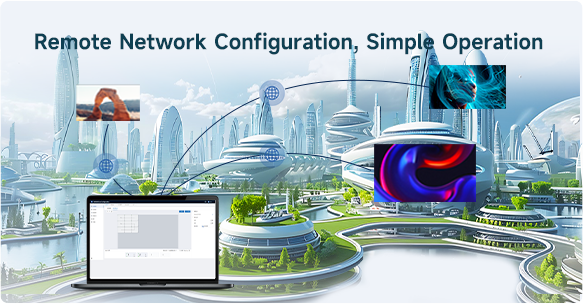

Remote Monitoring,

Precise Location

Real-time display status acquisition over LAN via web interface,visualized operations and maintenance, precise error location

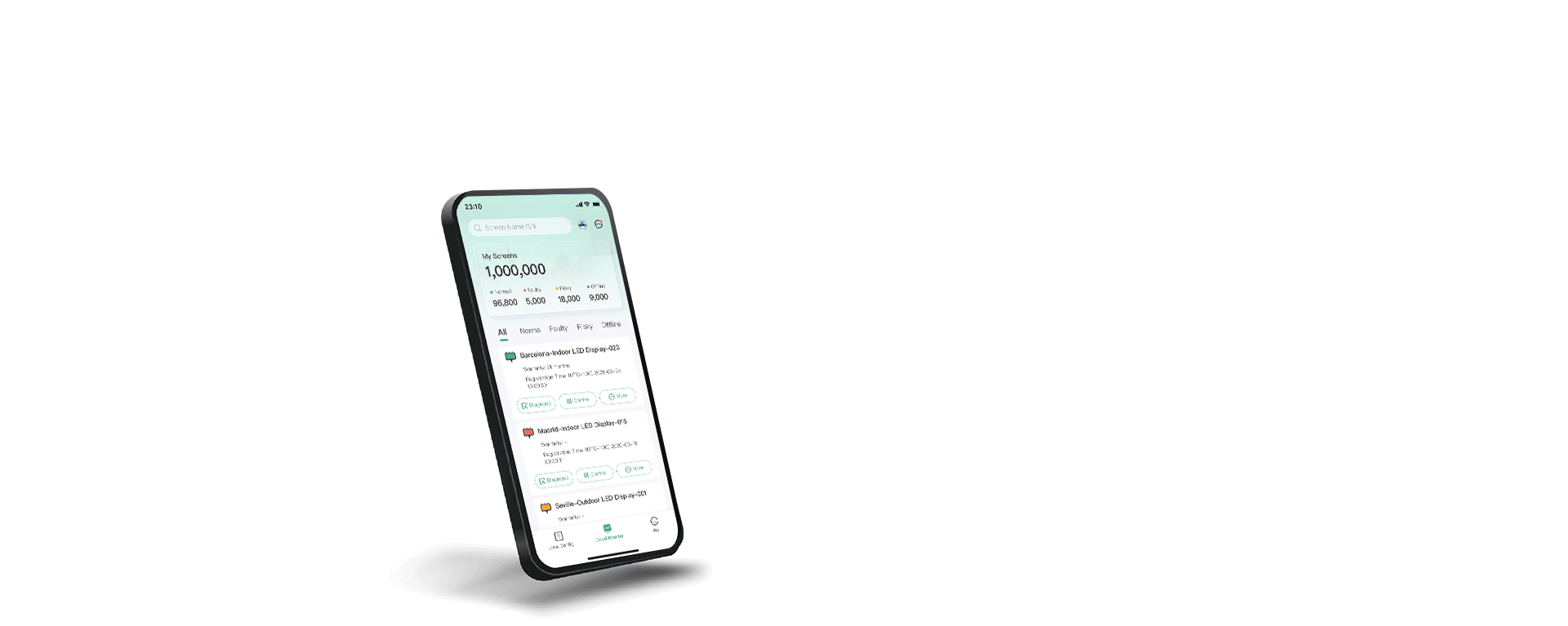

Cloud Service,

Intelligent Control

Real-time display status acquisition over LAN via web interface,visualized operations and maintenance, precise error location

More Features

Applications

Size	319.0mm×135.9mm×45.5mm
Input Voltage	DC 12V 7A
Stand-by Power Consumption	≈1.6w
Loading Capacity	2.6 Million
Maximum Width & Height	`Maximum Width: 4096 Maximum Height: 1920`
OS	`Windows：Windows: Windows 10&11 loT Enterprise Linux：ubuntu22.04`
WiFi	WiFi(Station) , WiFi 5, 2.4G/5G
CPU	Intel® Processor N97
Storage	4G+128G、8G+256G
Input Ports	`1 × HDMI 1.3 2 × USB 2.0 2 × USB 3.0`
Output Ports	`4 × RJ45 1 × HDMI 1.3 1 × 3.5mm Audio`
Control Ports	`2 × Gigabit Ethernet Port 1 × RS232 2 × Sensor Port`

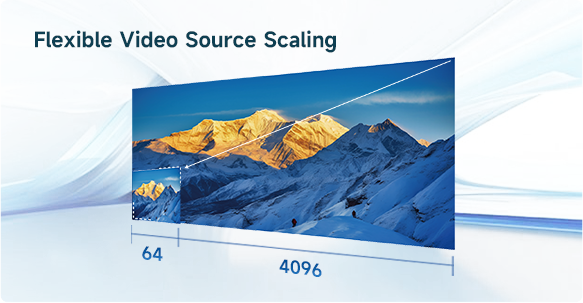

Free Scaling	Support
SNMP	Support
Remote Control	Support

Novastar MBOX600 Pro

MBOX600 Pro
