Best for
Projects that need video processing, scaling, switching, or multi-input control for LED walls — control rooms, events, and larger commercial displays.
Designed for ultra-large or ultra-wide screens, irregular screens, and immersive screens.
Easily adapts to stage performances, conferences, exhibitions, cultural tourism, etc.

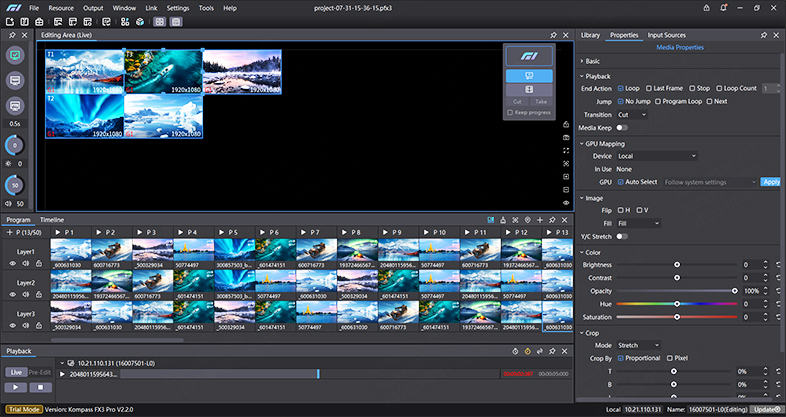

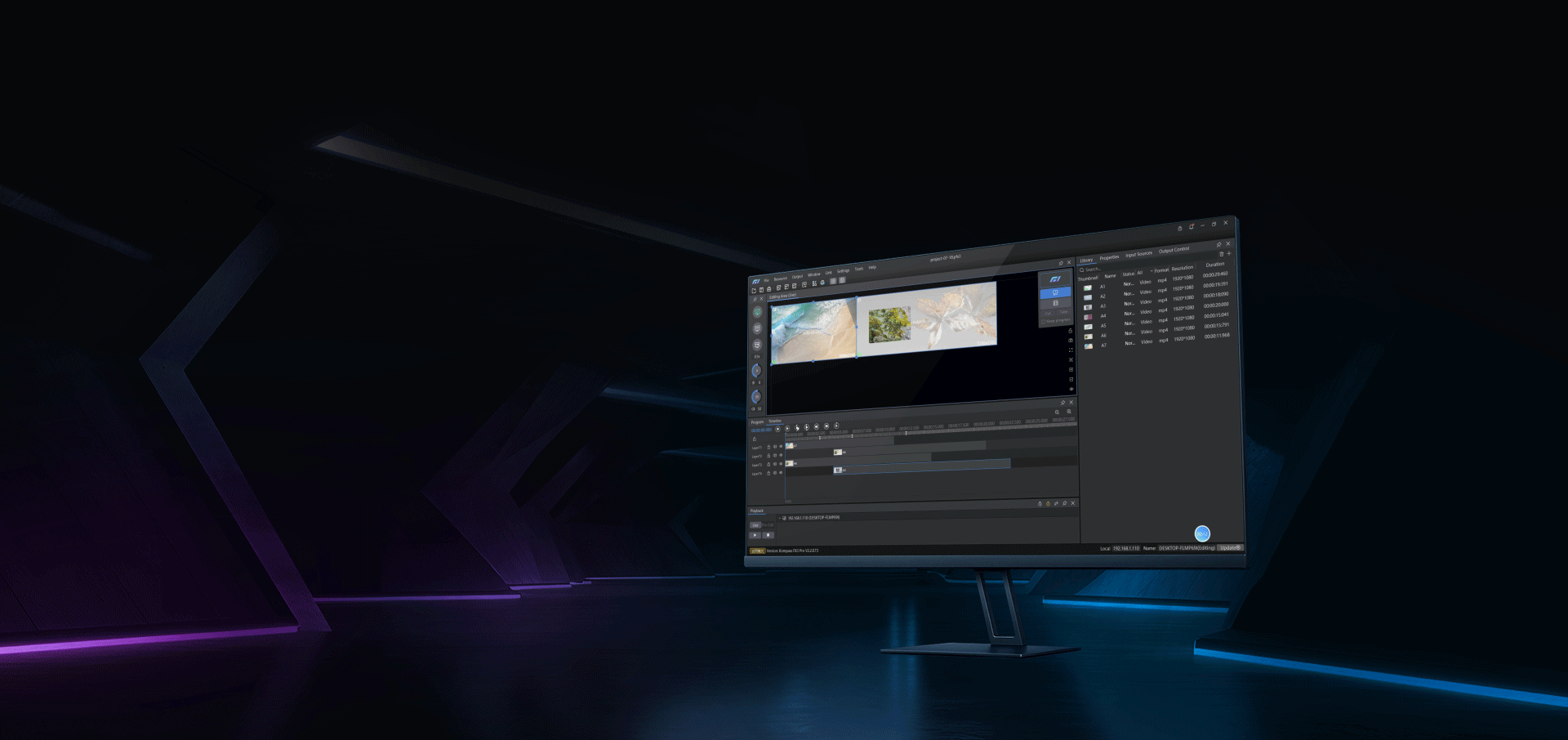

Fully Visualized Stage Editing
What You See Is What You Get
Visual stage editing with real-time preview
Visualized program and timeline management for quick access

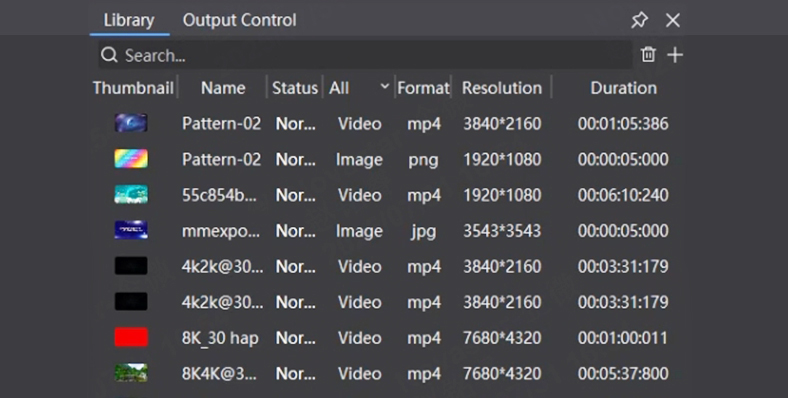

Visualized materials & input sources for intuitive operation
Visualized playback progress with drag-and-drop precision
Program / Timeline Management Dual Modes, Double Efficiency
Mode 1: Program Management
Designed for standard media playback, this mode simplifies multi-screen editing with unlimited layers and programs, supporting features like cross-program continuation and media retention.
Mode 2: Timeline Management
Enables refined media playback control with frame-level precision, supporting playback commands and cue tags for accurate show execution.
Synchronized Playback after Cascading, Ultra-High Loading Capacity
Powered by self-developed FSD frame synchronization technology, it is easy to realize the frame-level synchronized playback between cascaded devices and the splicing display of 32K and 64K super-large LED screen, avoiding image tearing and realizing ultra-clear and smooth display.

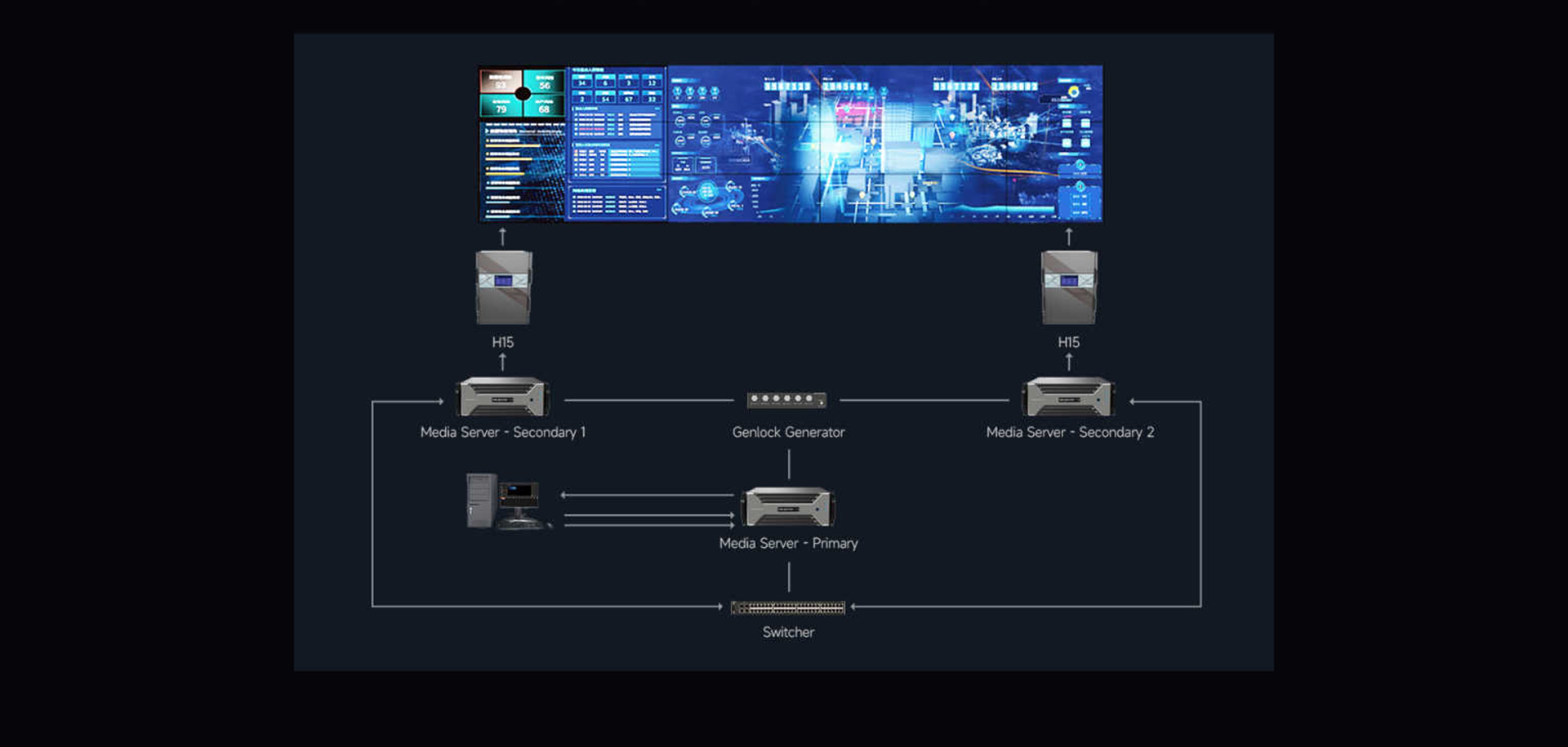

Primary-Backup Synchronization
for Reliable and Stable Operation
Full-automatic data synchronization between
primary and backup units.
primary and backup units.
The backup device will switch seamlessly
when the host machine is abnormal.
Full-link primary and backup solution.
The 7×24-hour stable operation perfectly realizes the secure site playback.
Powerfully, worry-free playback performance across diverse scenarios.
Creative Playback for
Irregular Screens
Easily achieve ultra-wide, rotated, or
spherical creative displays with features
like output splitting, irregular mapping,
and layer mapping.

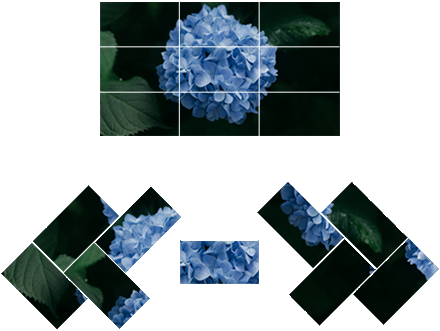

Output Splitting & Recombination
Maximize GPU output for flexible and creative screen arrangements

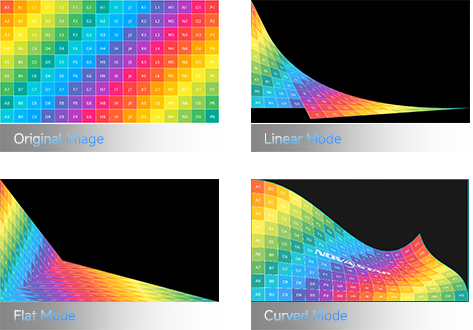

Irregular Mapping
Multiple display modes to meet the display requirements of various irregular shaped screens.
Layer Mapping
Synchronized playback across multiple screens
Independent content layout per program, without interference

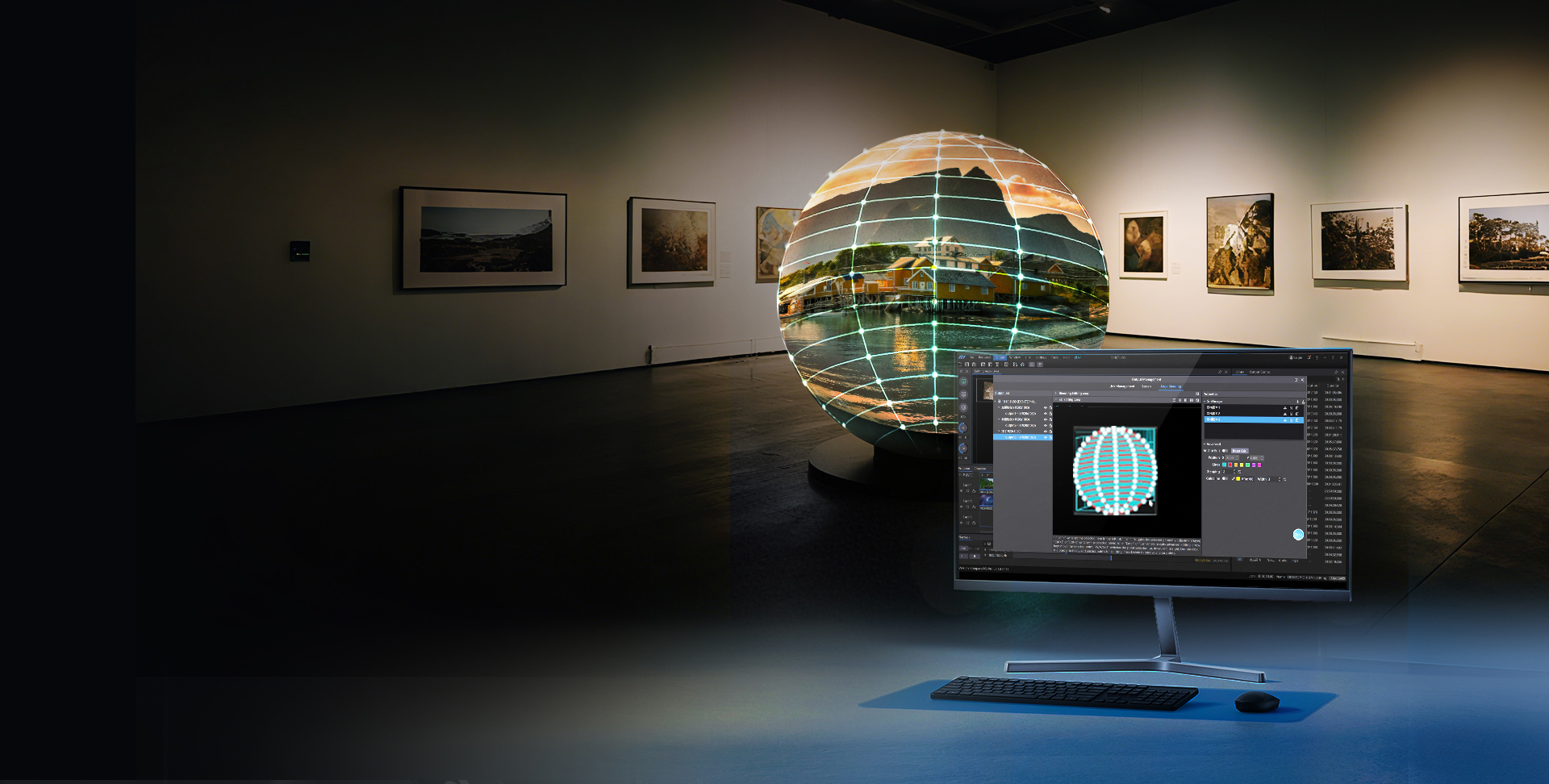

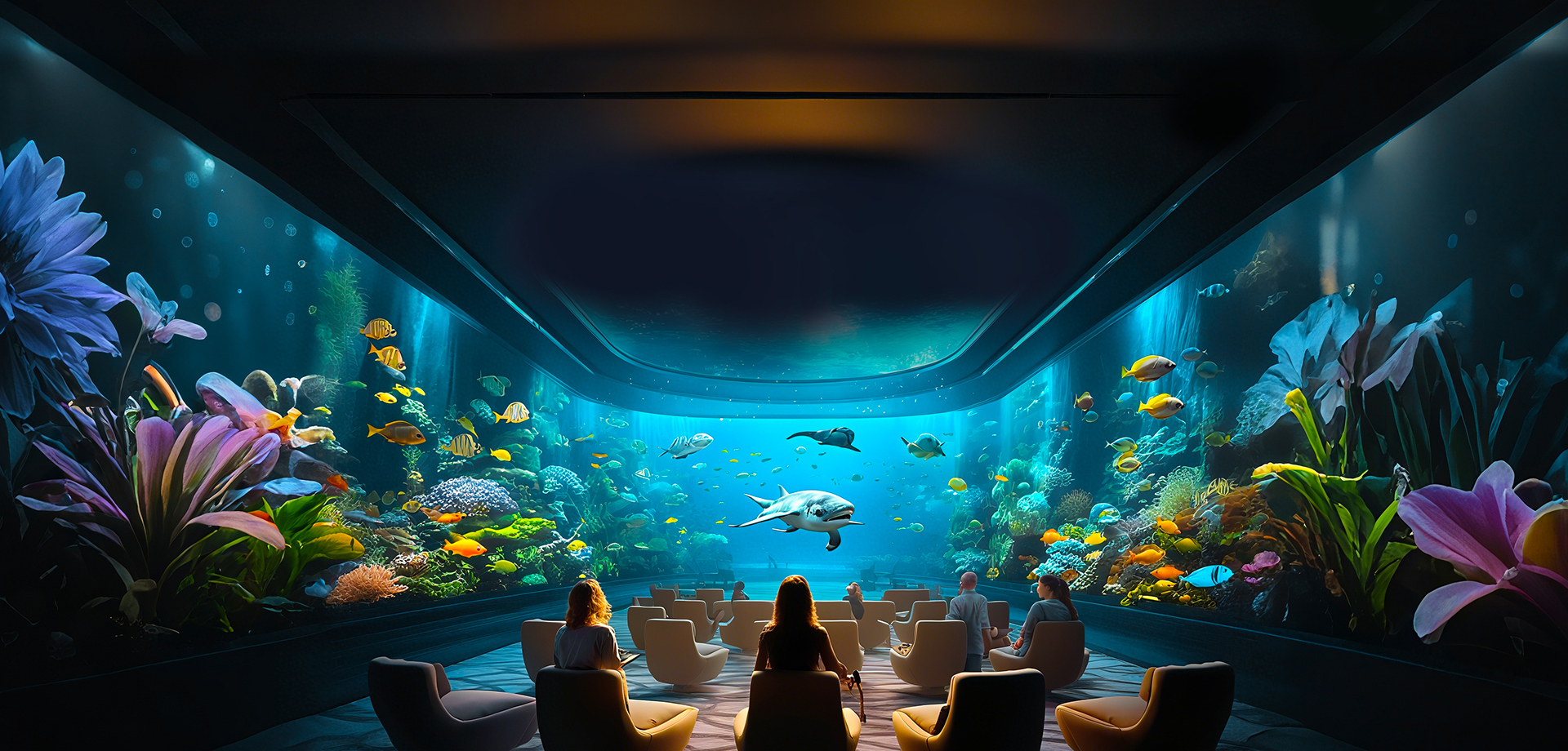

Projection 3D Mapping
for Immersive Visual Effect
The immersive effect of the best viewing
angle can be quickly achieved through the
3D Mapping function.
Efficient solution to the problem of
deformation of immersion projection
images such as spherical screen.
Multiple anchor points can be dragged
together after welding and merging, so
that the surface adjustment of spherical
mesh can be realized quickly and the perfect
immersive projection effect can be created.

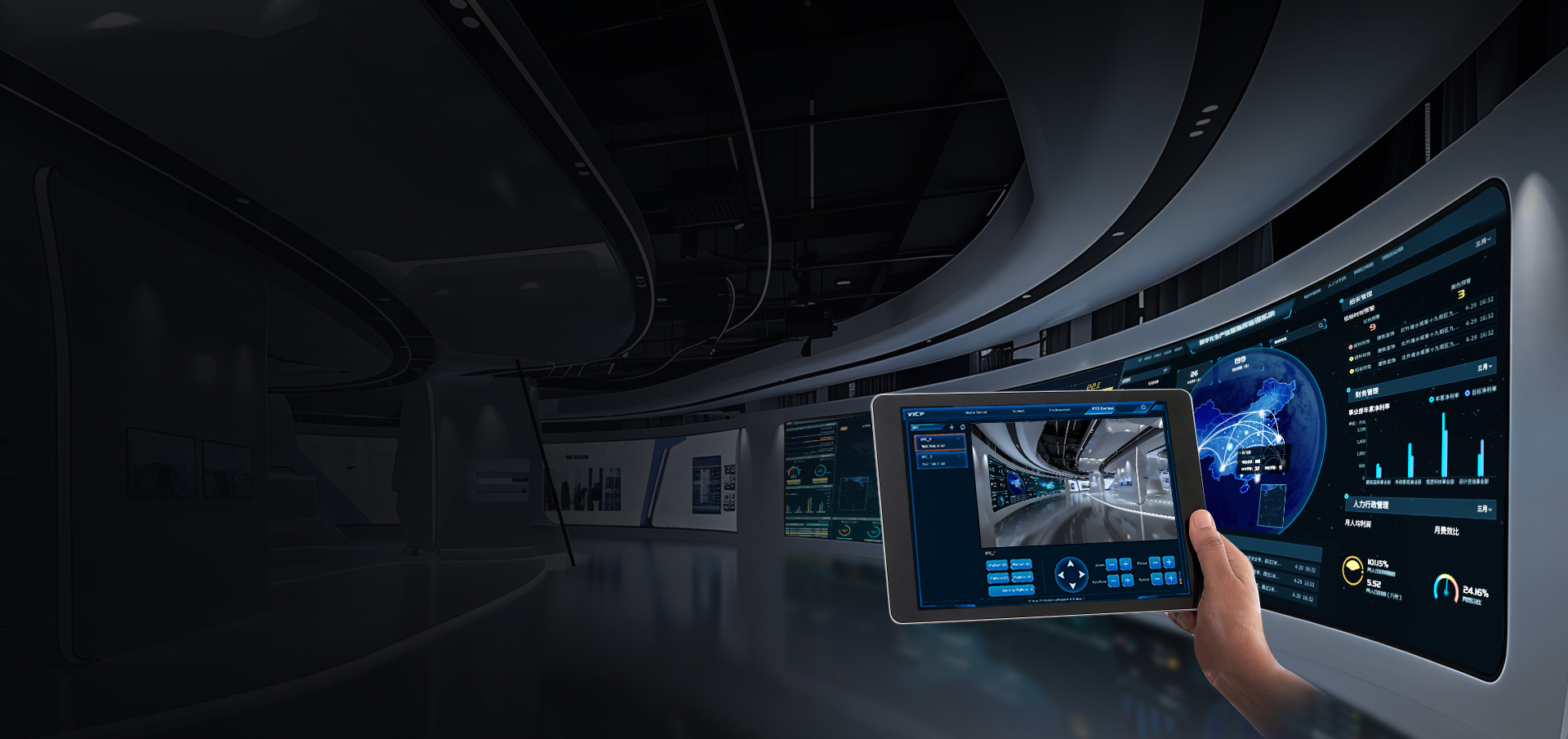

Remote Playback via Visualized
App VICP Inituitive Full-screen
Control at Your Fingertips
Remote program editing and switching
playback on APP.
Control freely at will, and the operation
is fully visualized.
Convenient and efficient, controlling the
whole situation between fingers.

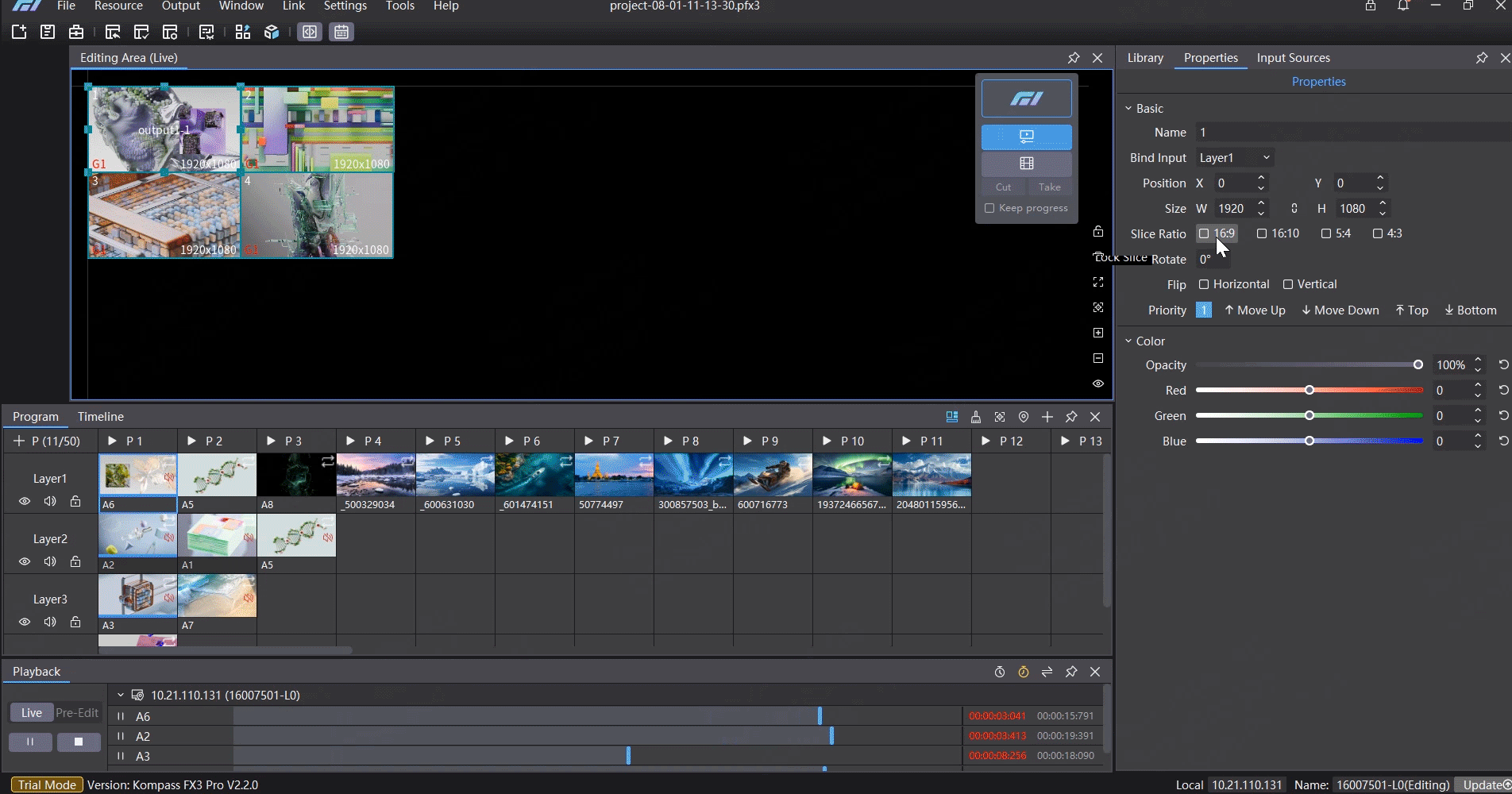

Separated Editing and Playback
Secure and Reliable
Separated interface design for program editing
and playback.
The screen display remains unaffected even if
the editing interface is abnormal.
After pre-editing and previewing, the screen can
be switched seamlessly with one click, which is
secure and controllable.

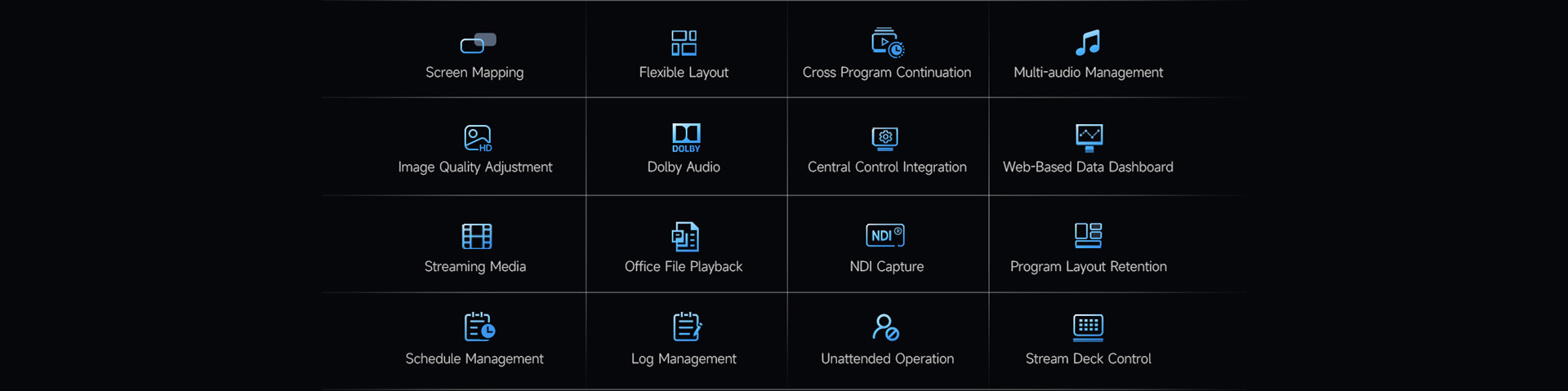

More Advantages
Software | Kompass FX3 Pro |
Decoding Method | Software decoding + hardware decoding adaptation |
Layers | Default number of extended screens, expandable |
Programs | No limit |
3D Mapping | / |
Screen Management | / |
Trim | Yes |
Program Insert | Yes |
Outputs | No limit |
Pre-Edit | Yes |
Output Partitioning | Yes |
Media Types | Video, audio, images, PowerPoint, NDI, streaming media, media collections, capture cards |
Image Rotation | Yes |
Event Controller Control | Yes |
Device Link | Yes |
Frame Sync Mosaic | Yes |
Device Backup | Yes |
Color Adjustment | Yes |
Media Effects | Crop, border, keying |
Progress Management | Yes |
Volume Control | Media volume, layer mute, program volume |
VICP | Yes |
Central Control Processor | Yes |
Multi-Channel Output | Yes |
Auto Program Jump | Yes |
Unattended | Yes |
Scheduled Playbacks and Logs | Yes |
Edge Blending | Yes |
Timeline | Yes |
Custom Operation Window | Yes |
Polygon Slices | Yes |
Activation Method | Registration code / authorization dongle |
Timecode | / |
Output Control | Yes |
Shortcut Control | Yes |
AI Assistant | / |
Cloud Media | / |
