Best for
Projects that need video processing, scaling, switching, or multi-input control for LED walls — control rooms, events, and larger commercial displays.
The ET series supports up to 16 channels of 4K2K@60Hz frame-synchronized output,
enabling a single device to achieve 16K ultra-large screen or multiple 4K screens for pixel-by-pixel display.
The entire series covers bandwidth from 2K to 16K, perfectly adapting to various application scenarios.
Integrating powerful features such as
professional playback software, playback control computers, protocol command, and conversion devices,simplifying complexity.
It effectively addresses issues like interface compatibility and control complexity, making it easy to manage display playback control.
The ET series supports GPU hardware decoding and accelerated rendering, effectively reducing CPU usage.
It supports up to 16 channels of 4K2K@60fps decoding output, ensuring smooth high-definition video playback without lag or frame loss.

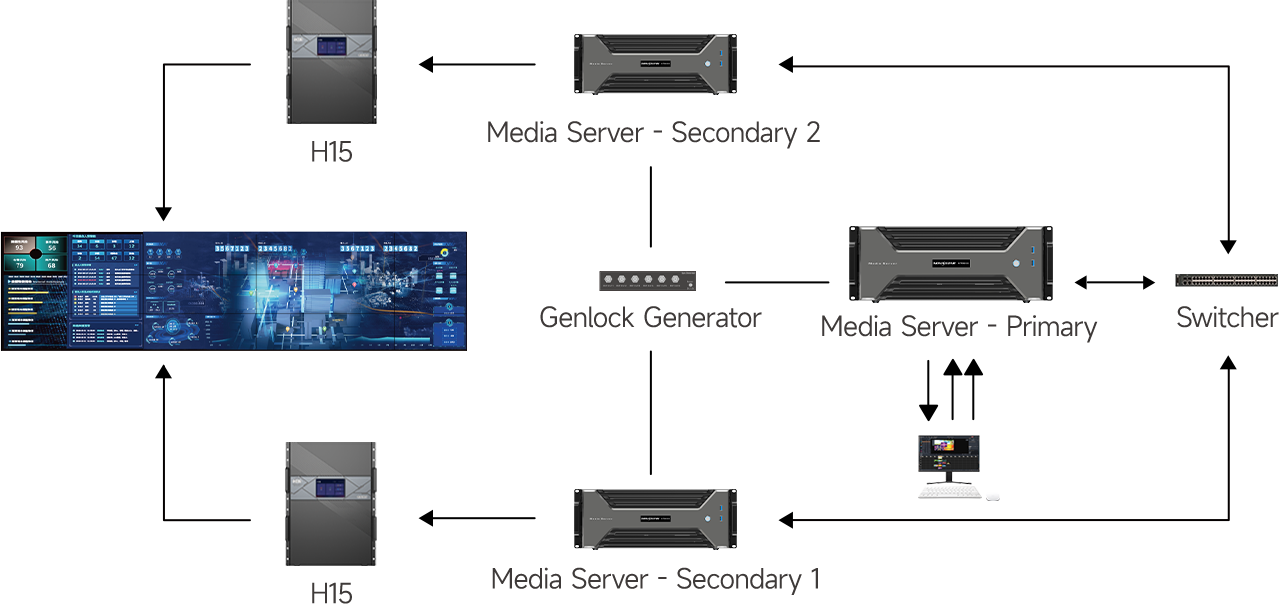

With exclusive FSD frame synchronization technology, multiple servers support cascading splicing with frame-synchronized display output.
Main-slave data synchronization ensures seamless control, enabling limitless expansion of display loads.
Multiple devices and screens can be centrally managed, offering a simple and efficient solution.
Supports HDR high dynamic range display, ensuring that the screen delivers delicate and realistic visuals even in high-brightness and low-gray areas.
It reveals more image details, enhances color expression, and restores every stunning pixel.
A customized original digital asset platform + 3D spatial positioning + ultra-clear smooth playback control,
crafting immersive creative solutions for enterprise showrooms, live studios, and other scenarios,
unlocking the imagination behind the visuals.
PAD enables visual program management through Visual Intelligent Control Platform (VICP),
the server supports Protocol Command and cloud-based options.
This allows for efficient management of the entire scene anytime and anywhere, greatly enhancing convenience of playback and control.

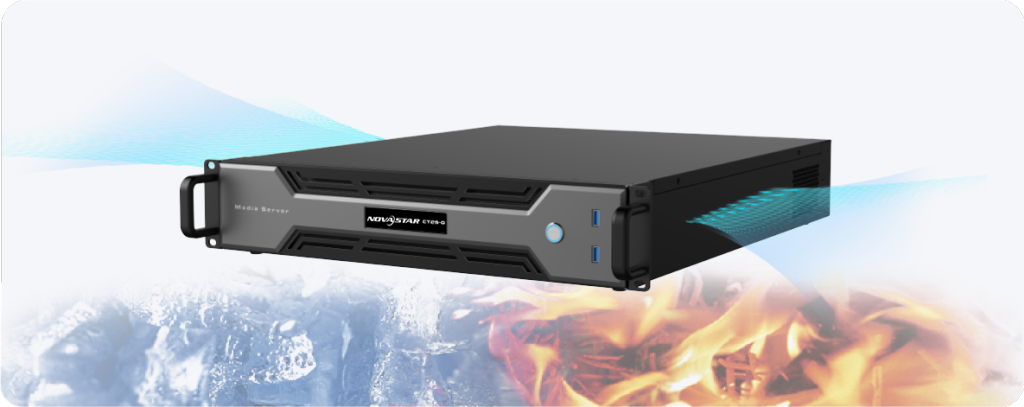

With a professional cooling design and customized CPU cooling, the device remains stable even when the ambient temperature reaches up to 60°C.
It easily passes 720 hours of stress testing, ensuring long-term, stable operation without crashes.

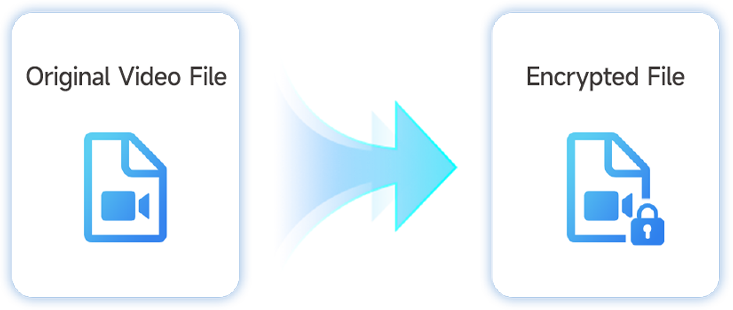

It features unique video encryption technology,
meanwhile, supports file exclusivity, password verification, and time-based authorization,
establishing a robust digital asset protection system to safeguard information security.
Exclusive Use | Password Verification | Expiration Date
EDID Lock
Multi-Screen Multi-Iayers
Edit and Playback Separation
Peripheral Control
Timeline Editing
Projection Blending
Dolby Atmos Sound
Output Split and Reorganization
Product | ET1S-G | ET2S-G | ET4S-G(P2) | ET4S-G(A4) | ET16S-G(2A4) | ET16S-G(3A4) |
Chassis | 1U | 2U | 4U | 4U | 4U | |
RAM | 16G (DDR4) | 32G (DDR5) | 64G (DDR4) | 128G (DDR4) | ||
CPU | 5th Gen AMD Ryzen Processor | 12th Gen Intel Core Processor (i5-12400) | 12th Gen Intel Core Processor (i7-12700) | 1x Intel Xeon Gold Processor | 2x Intel Xeon Gold Processors | |
Storage | 250GB M.2 high-speed SSD | 500GB M.2 high-speed SSD | 250GB M.2 high-speed SSD (system disk) | 1TB M.2 high-speed SSD | 1TB M.2 high-speed SSD (system disk) | |
Graphics Card | AMD5600HB (GPU) | HPGT400 | MPG2000/MPG2200 | HPG4000/HPGA4000 | 2x HPGA4000+MPGT400+Sync card | 3x HPGA4000+MPGT400+Sync card |
Loading Capacity | 1x 4096*2160@60Hz | 2x 4096*2160@60Hz | 4x 5120*2880@60Hz | 8x 5120*2880@60Hz | 12x 5120*2880@60Hz | |
Decoding Capability | 1x 4K2K@60fps or 4x 2K1K@60fps | 1x 8K2K@60fps or 2x 4K2K@60fps | 1x 8K4K@30fps or 3x 4K2K@60fps | 1x 8K4K@60fps or 4x 4K2K@60fps | 2x 8K4K@60fps or 8x 4K2K@60fps | 3x 8K4K@60fps or 12x 4K2K@60fps |
Programs | Unlimited | |||||
Layers | 4 mixing layers, 1 audio layer, limit: 20 | 8 mixing layers, 1 audio layer, limit: 40 | 12 mixing layers, 1 audio layer, expandable, limit: 60 | 12 mixing layers (2 graphics cards for 24 layers, 3 graphics cards for 36 layers, 4 graphics cards for 48 layers), 1 audio layer, expandable, limit: 60 | ||
EDID Lock | √ | √ | √ | √ | √ | √ |
Device Link | √ | √ | √ | √ | √ | √ |
Frame Sync Mosaic | / | / | √ (with sync card) | √ (with sync card) | √ | √ |
Device Backup | / | / | √ (with sync card) | √ (with sync card) | √ | √ |
IPAD Control | √ | √ | √ | √ | √ | √ |
Protocol Control | √ | √ | √ | √ | √ | √ |
OS | Windows 10 Enterprise LTSC | |||||
MEGRA guidance
Short buyer notes from MEGRA (MTV Digital Technology Sdn Bhd, Port Klang). Specs above stay as published. Use this section only to decide fit and next step.
Projects that need video processing, scaling, switching, or multi-input control for LED walls — control rooms, events, and larger commercial displays.
Choose ET1S-G when the job is more than simple send/play: inputs, layers, or higher-end processing sit in the processor class (capacity reference: 1x 4096*2160@60Hz).
Video sources on the input side and Novastar sending / receiving path on the LED side. System design should follow the I/O list in the specs above.
