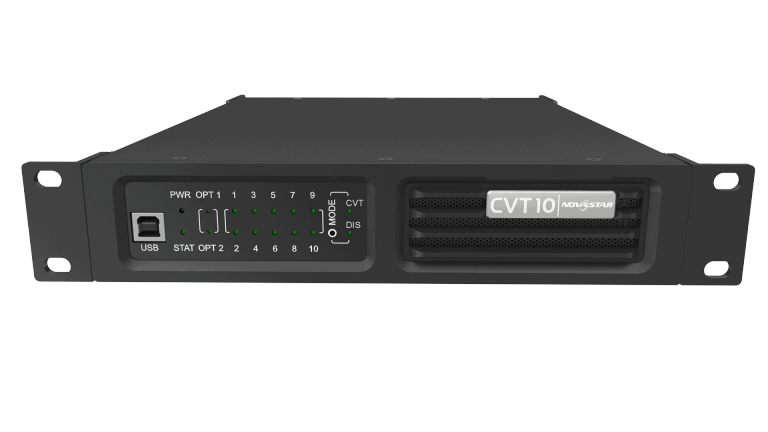

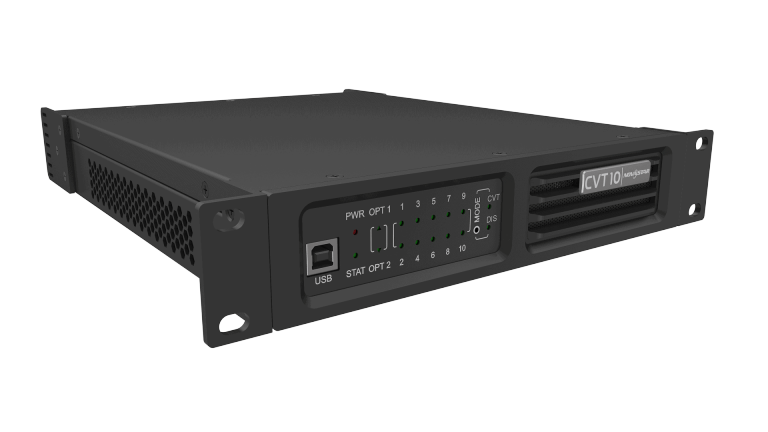

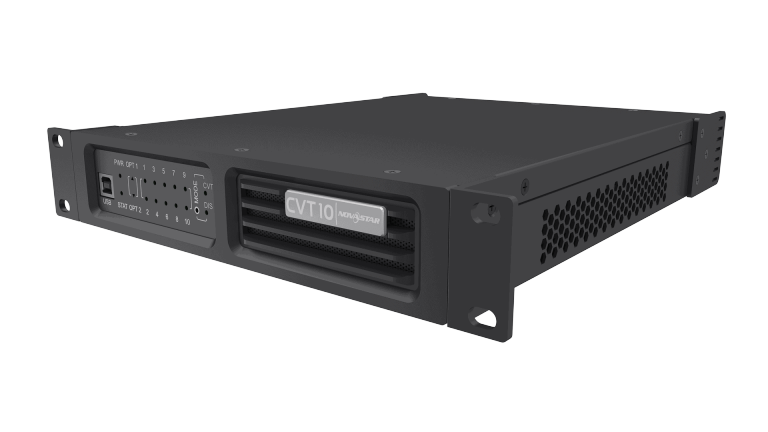

The CVT10 fiber converter offers a cost-effective way to convert optical signals to electrical signals, or electrical signals to optical signals, for connecting the sending card to the LED display. Delivering a full-duplex, efficient and stable data transmission that is not easily interfered with, this converter is ideal for long-distance transmission. The CVT10 hardware design focuses on the practicality and convenience of the on-site installation. It can be mounted horizontally, in a suspended way, or rack mounted, which is easy, secure and reliable. For rack mounting, two CVT10 devices, or one CVT10 device and a connecting piece can be combined into one assembly that is 1U in width.

Have a question? Find a Distributor

● Models include the CVT10-S (single-mode) and the CVT10-M (multi-mode).

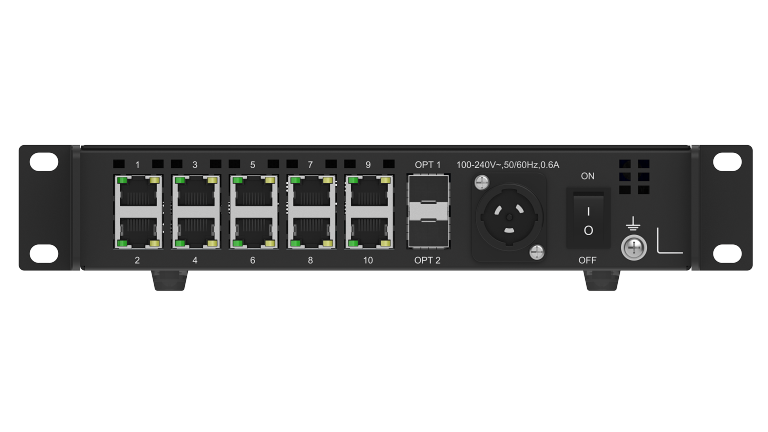

● 2x optical ports with hot-swappable optical modules installed at the factory, bandwidth of each up to 10 Gbit/s
● 10x Gigabit Ethernet ports, bandwidth of each up to 1 Gbit/s
 −Fiber in and Ethernet out

 The first 8 Ethernet ports are available when connected to the 10G (8b/10b encoding)
 optical ports of front-end devices.

 The 10 Ethernet ports are available when connected to the 10.3125G (64b/66b
 encoding) optical ports of front-end devices.

 −Ethernet in and fiber out

 All the 10 Ethernet ports are available.

● 1x type-B USB control port

Electrical Specifications	Power supply	100-240V~, 50/60Hz, 0.7A
Electrical Specifications	Rated power consumption	22W
Operating Environment	Temperature	–20ºC to +60ºC
Operating Environment	Humidity	10% RH to 80% RH, non-condensing
Storage Environment	Temperature	–20°C to +70°C
Storage Environment	Humidity	10% RH to 95% RH, non-condensing
Physical Specifications	Dimensions	254.3 mm × 50.1 mm × 290.0 mm
	Net weight	`2.1kg Note: It is the weight of a single product only.`
	Gross weight	`3.1kg Note: It is the total weight of the product, accessories, printed materials and packing materials packed according to the packing specifications.`
Packing Information	Packing box	362.0 mm × 141.0 mm × 331.0 mm, kraft paper box
	Outer box	387.0 mm × 173.0 mm × 359.0 mm, kraft paper box
	Packing list	`l 1x CVT10 l 1x Power cord, 1x USB cable, 1x Ethernet cable l 1x Supporting bracket A (with nuts), 1x Supporting bracket B (without nuts) l 1x Connecting piece l 12x M3*8 screws l 1x Assembling diagram l 1x Certificate of Approval`
Certifications	RoHS, FCC, CE, IC
