Best for
LED control runs that need fibre conversion / extension between controller and receiving side over longer distance.

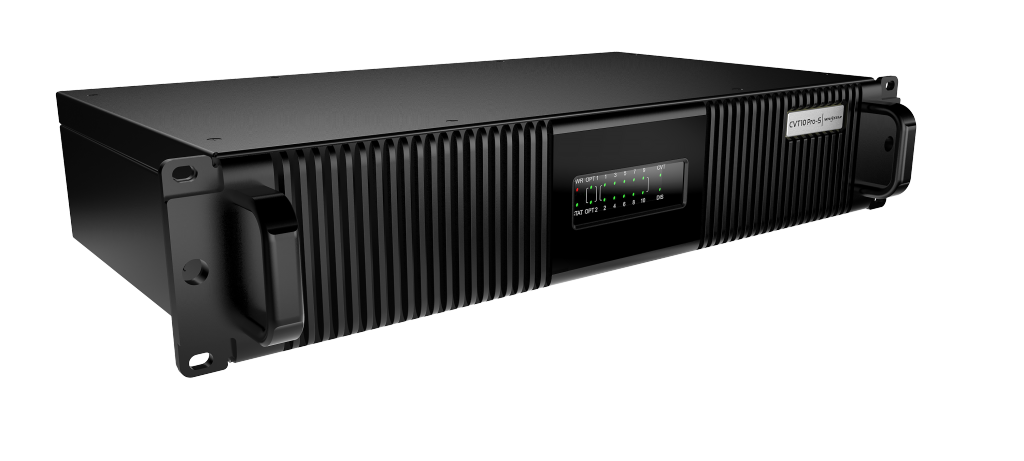

Novastar Fiber Converter CVT10 Pro
All New Fiber Converter
CVT10 Pro
More Reliable, More Powerful

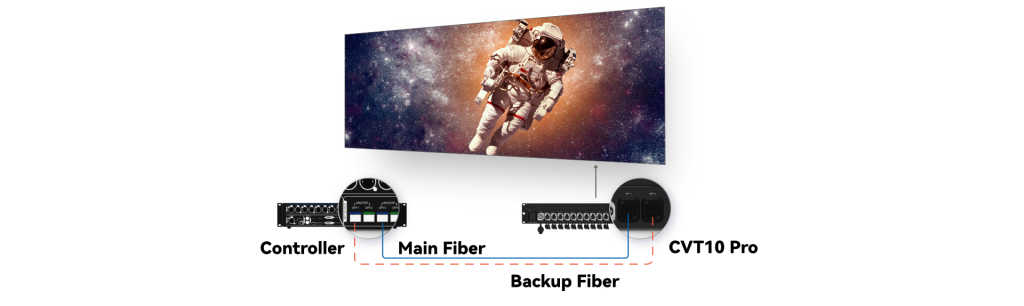

The all new CVT10 Pro meets the needs of various long-distance transmission scenarios
and works with all other NovaStar processors.

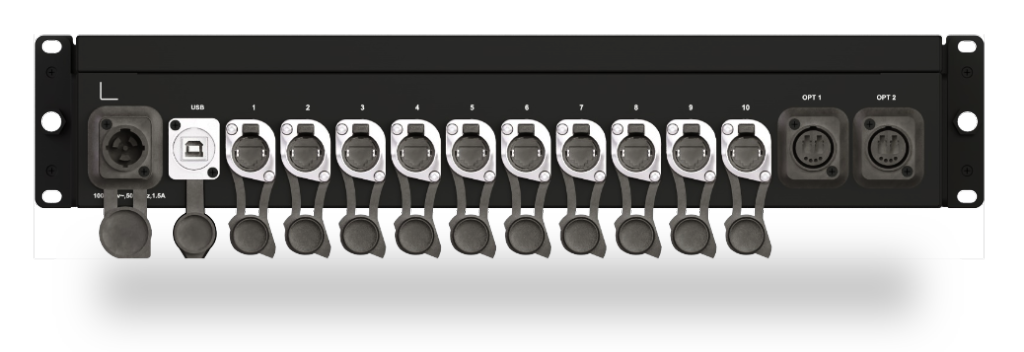

Neutrik Interface, Reliable Connection
CVT10-Pro supports 10x Gigabit Ethernet ports and 1x type-B USB control port,
2 types of power connectors and PowerCON socket.
Two Interface Available
2x pre-installed hot-swappable optical modules,
bandwidth of each up to 10 Gbit/s to secure the transmission.
-
-

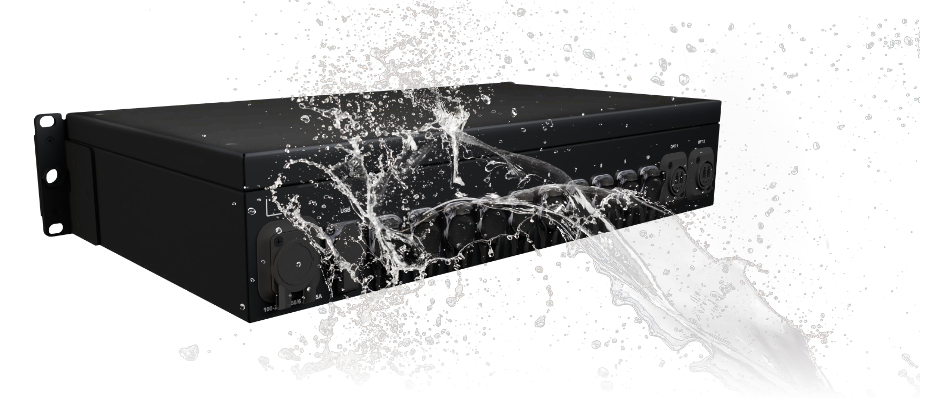

A IP65 Waterproof,
Dust Proof and
Durable DesignPrecise IP65 water and dust proof design,
adept in working at harsh outdoor environment.
Notes:
[1]Supports the first 8 Ethernet ports when connected to the 10G (8B/10B encoding) optical interface of front-end devices.
Supports 10x Ethernet ports when connected to the 10.3125G (64B/66B encoding) optical interface of front-end devices.
[2]Fully waterproof and dust proof level in line with IP65 while power, USB, network port protective cover closed and fiber optic port connected.
CVT10 | CVT10 Pro | CVT4K | |
I/O | .2xOPT(Single/Multi mode) | .2xOPT(Single/Multi mode) | .4xOPT(Single/Multi mode) |
Ports | 10xRJ45 | 10xNeutrik | 16xNeutrik |
Ac Input | 100-240V~, 50/60Hz, 0.6A | 100-240V~, 50/60Hz, 1.5A | 100-240V~, 50/60Hz |
Power Socket | 1xT-Shape Socket | 1xPovvercon | 1x3pin Power Socket |
Power Consumption | 22W | 22W | 10W |
Working Temp | -4'F~+158°F | -4'F~+158°F | -4'F~+158°F |
Working Humidity | 10%RH~95%RH, | 10%RH~95%RH | 10%RH~95%RH, |
Size | 1U/(254.3x50.5x290.0mm) | 2U/(482.6x881x280.0mm) | 2U/(482.6x881x280.0mm) |
Weight | 2.1kg | 5.9kg | 4.6kg |
Water Resistance | / | IP65 | / |
Installation | .Installed in rack (2 units assembled) | .Installedin rack | .Installed in rack |
Compliance | RoHS/FCC/CE/IC/RCM | RoHS/FCC/CE/CBIC/RCM/KC/UL | RoHS/UL&CUL/FCC/CE/EAC/CB/IC/RCM |
