Redefining the Industry
with COEX 5G Solution

COEX VOICES

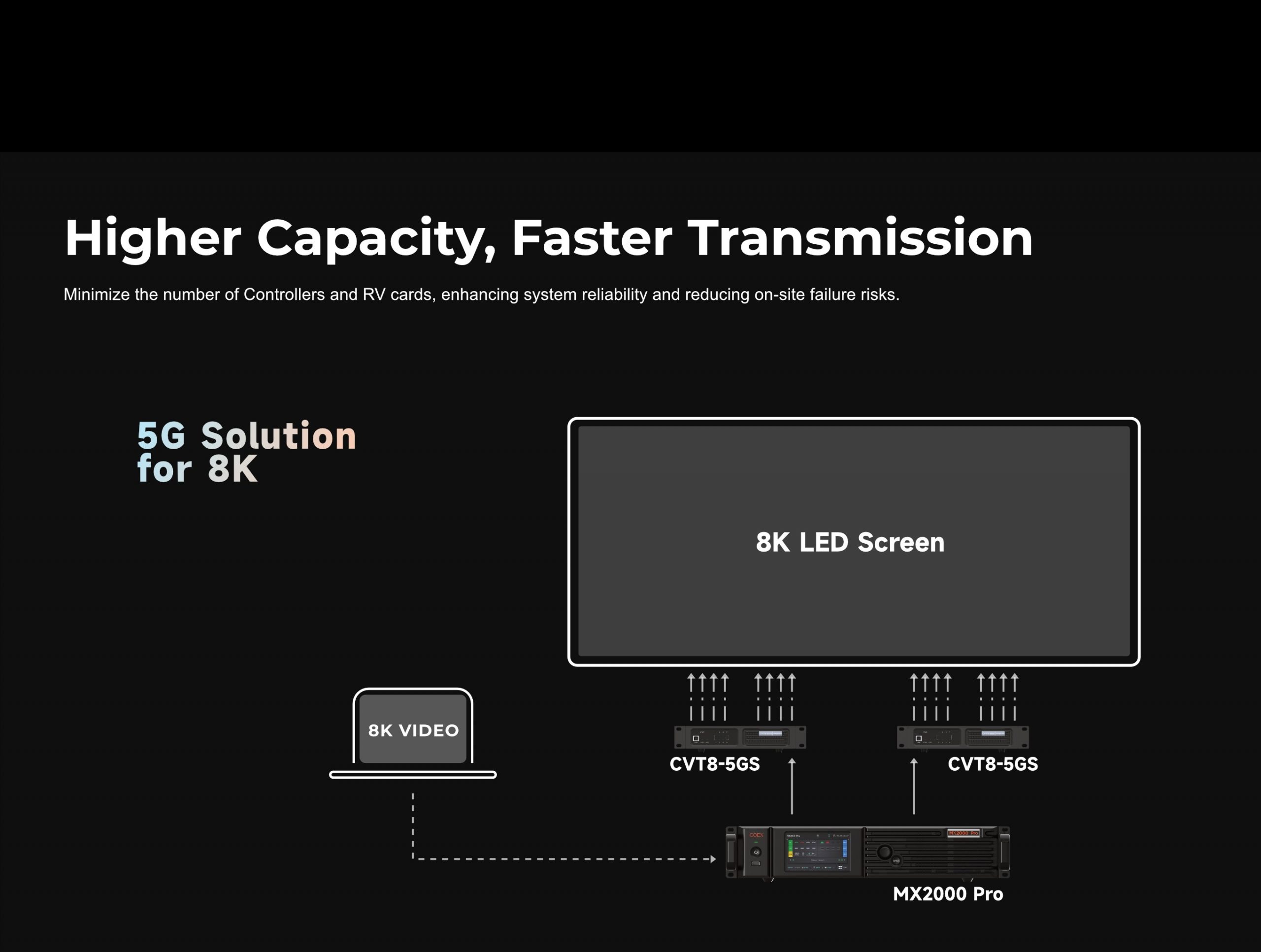

Abundant Processor Options

Multiple processors are available for different project sizes, from 4K to 8K and 16K.

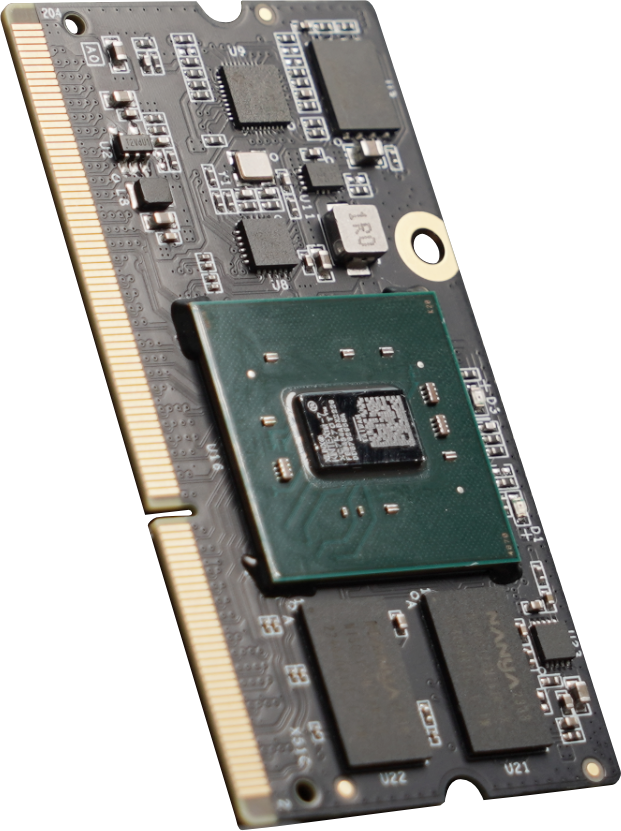

Premium 5G RV Card
XA50 Pro

Ultra-high Loading Capacity

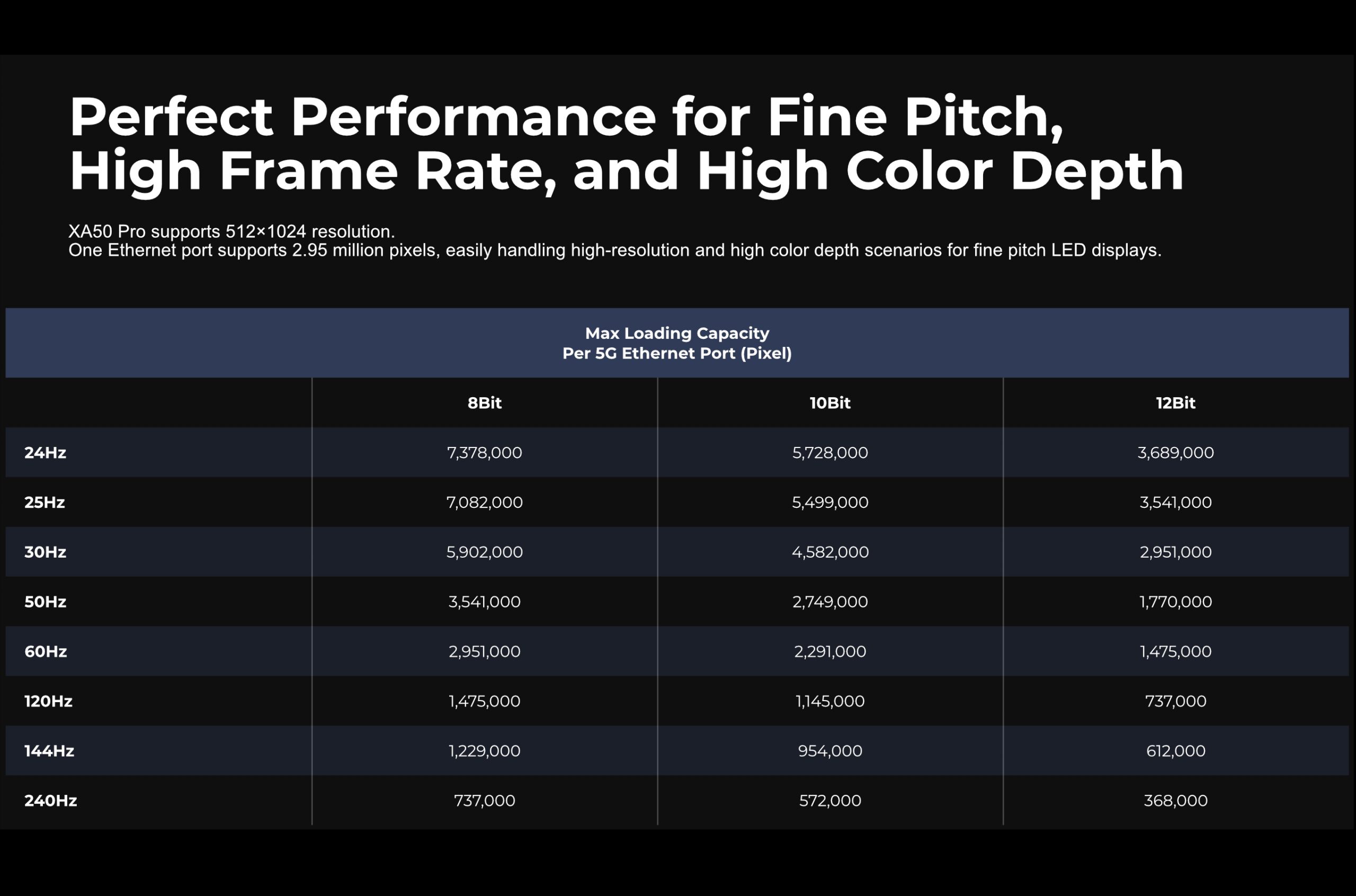

A single receiving card drives 512×1024 pixels, enabling single-card cabinet configuration down to P0.6.
It's also a perfect fit for high bit depth (10/12 bit) and high frame rate applications up to 240Hz

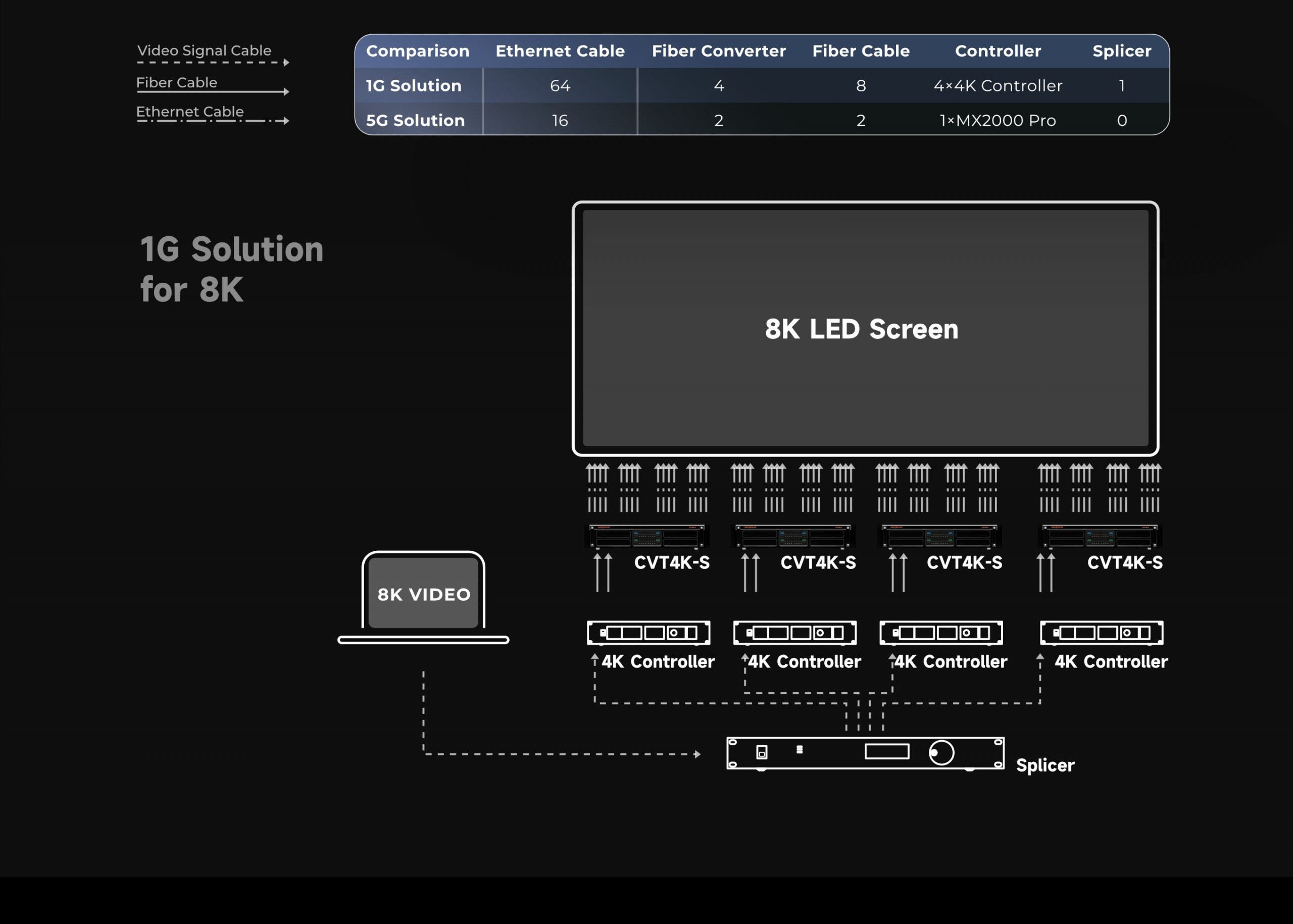

Flexible Signal Transmission Methods

The XA50 Pro supports a versatile signal transmission design, including the 5G Ethernet port, 5G Type-C interface, and 10G optical port.
Empower your creativity with flexible, customized cabinet designs.

Guaranteed Heat Dissipation Performance

The XA50 Pro features a comprehensive heat dissipation design guide, enabling simplified thermal management for LED cabinets while improving heat diffusion efficiency and reducing operating temperatures.

End-to-End 5G Project Assurance

NovaStar ensures high-quality 5G solutions with end-to-end expertise, covering cabinet design help, screen testing, and on-site project escort.

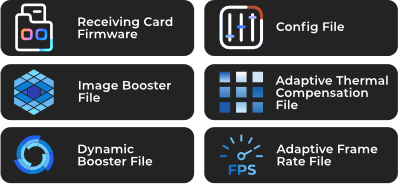

NCP All-in-one Package

All related files are packed into one for easier management and maintenance.

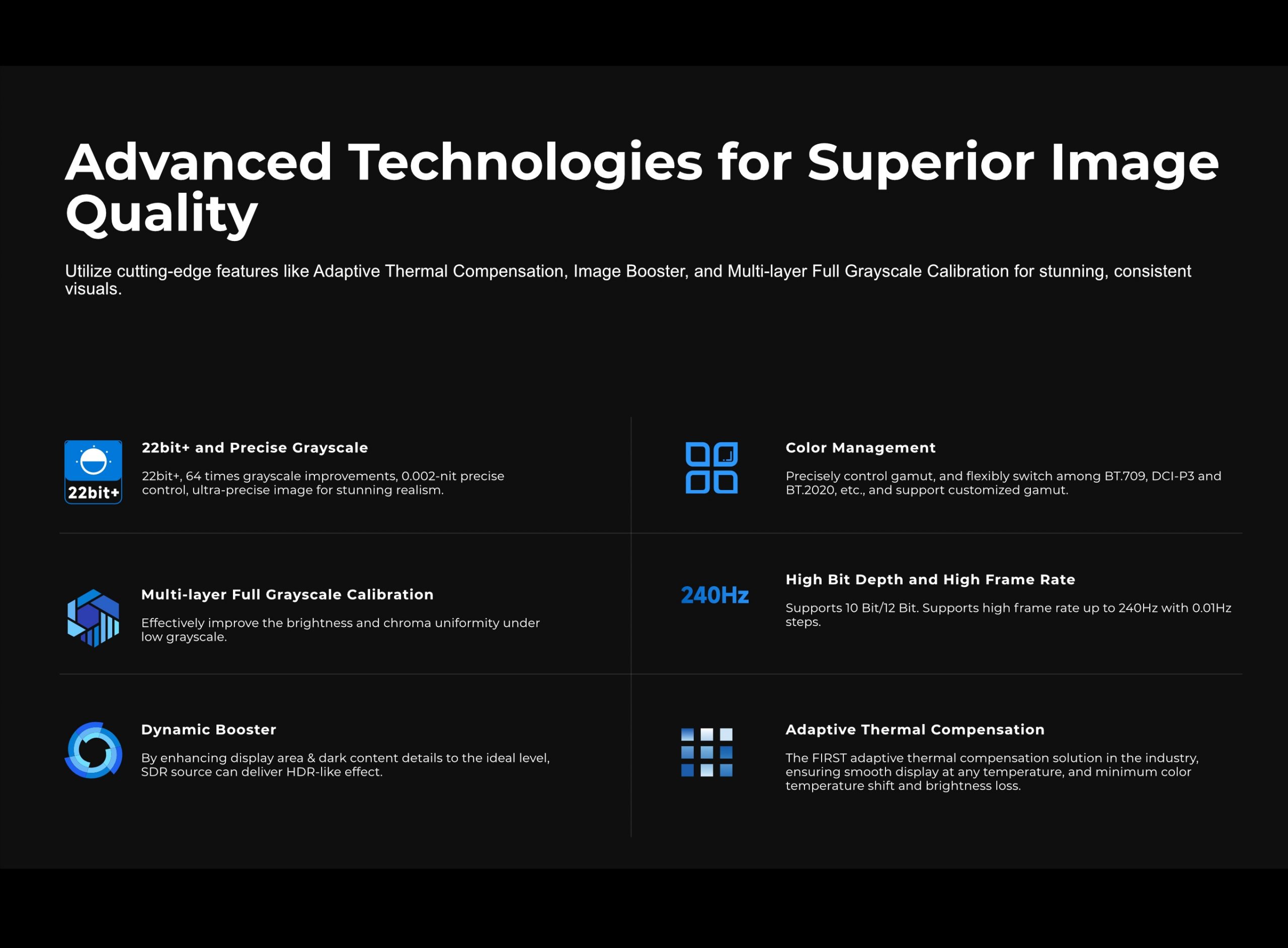

Core Technologies

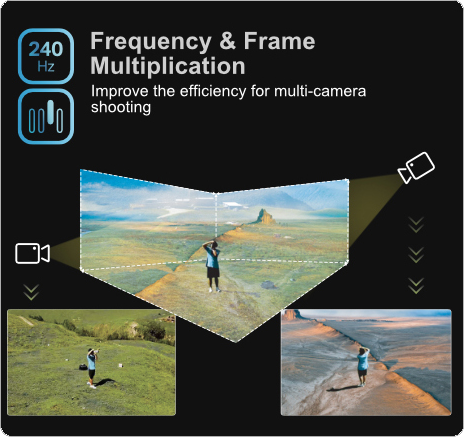

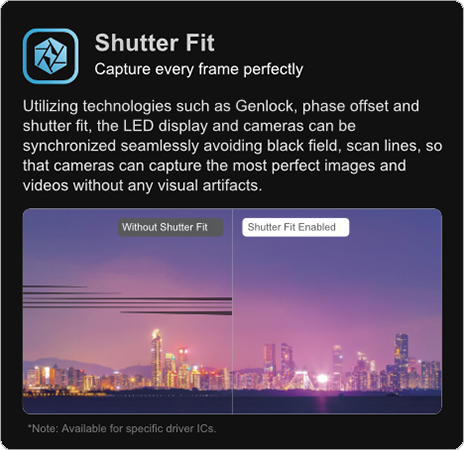

Enhance Display Performance

Key Featuers

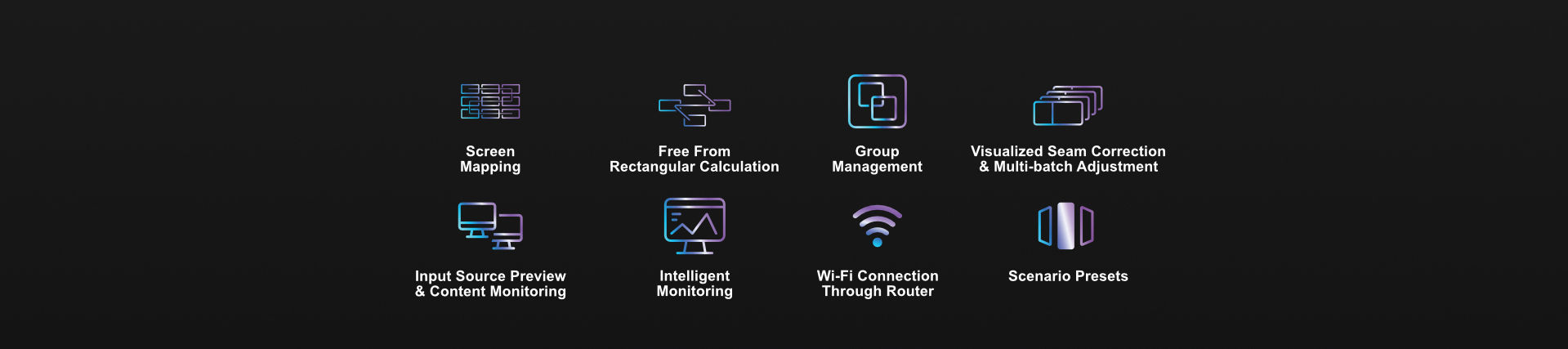

Key Features with VMP

From COEX basics to expert know-how, click ‘COEX WIKI’ to dive in!

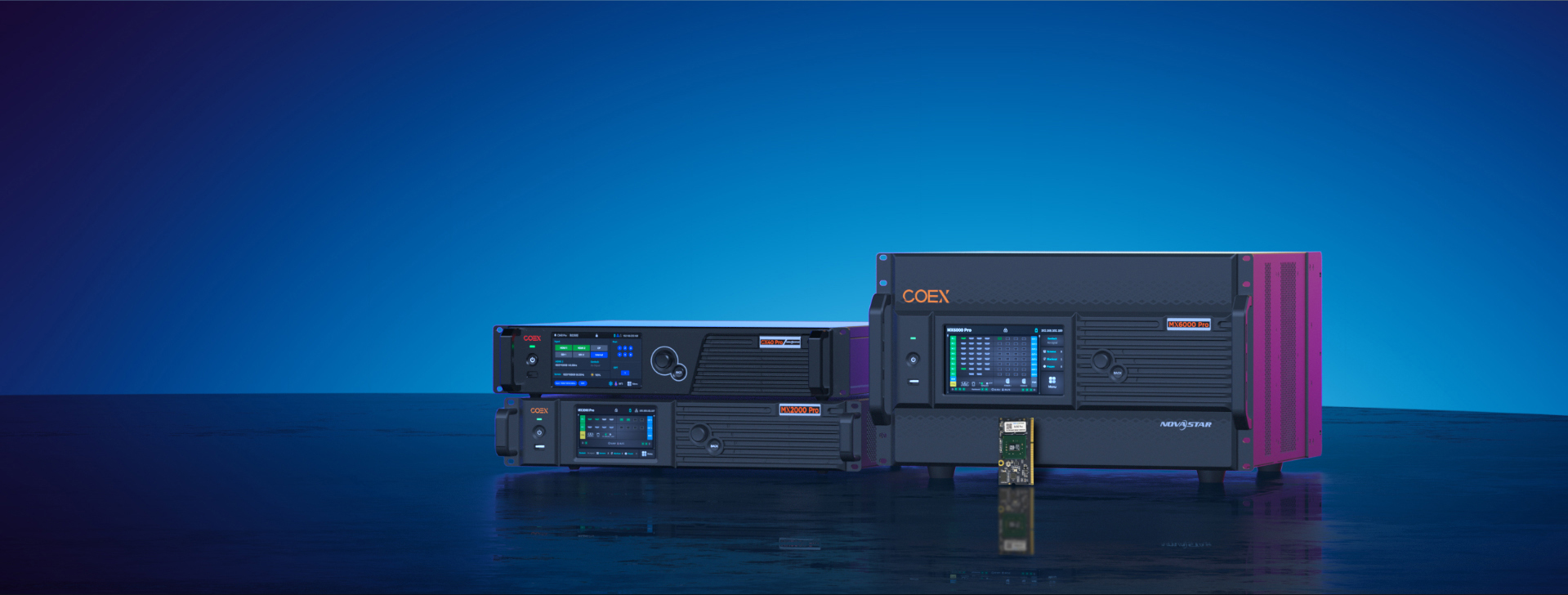

5G Controllers
Product Model	MX6000 Pro	MX2000 Pro	CX40 Pro
Rack Unit	6U	2U	2U
Max. Input /Output Cards	8	2	/
Max. Loading Capacity	141 Million	35.38 Million	9 Million
Input Options	`MX_4×HDMI 2.0 input card MX_4×DP 1.2 input card MX_4×12G-SDI input card MX_2×HDMI 2.1 input card MX_2×DP 1.4 input card MX_1×DP 1.4+HDMI 2.1 input card MX_1×DP 1.4(8K@60Hz) input card MX_1×SMPTE ST 2110(25G) input card MX_2×SMPTE ST 2110(25G) input card MX_1×ST 2110 (100G) (8K@60Hz) input card`		`2×HDMI 2.0 1×DP1.2 2×12G-SDI`
5G Output Options	MX_1×40G QSFP+ output card		`6×5Gbps Neutrik 1×40Gbps QSFP+`
Control Interface	1G Ethernet
Control Protocol	TCP/IP, SNMP
Layers	Up to 32×4K layers	Up to 8×4K layers	Up to 3×4K layers
	Note: 4×4K layers per output card
Genlock	Tri-level, Bi-level / Blackburst
Input Bit Depth	8bit / 10bit / 12bit

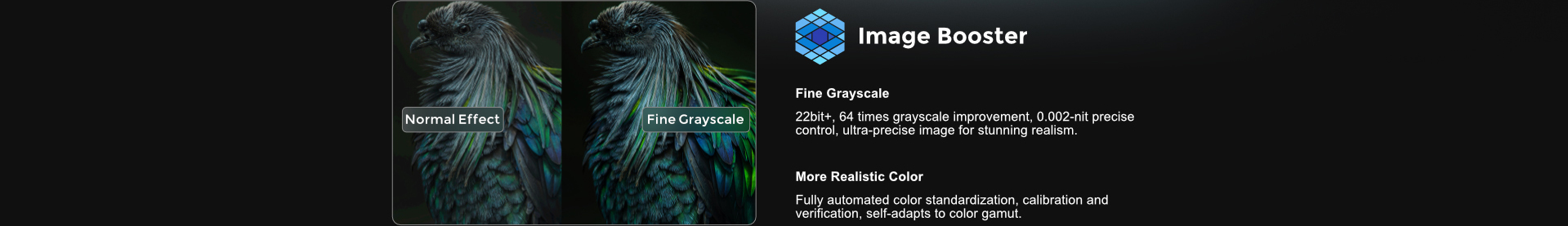

Image Booster	✓

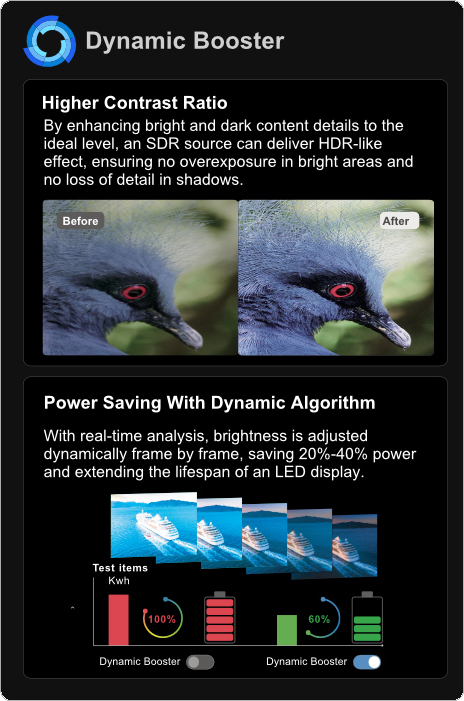

Dynamic Booster	×	×	√
Adaptive Thermal Compensation	✓
Multi-layer Full Grayscale Calibration	√

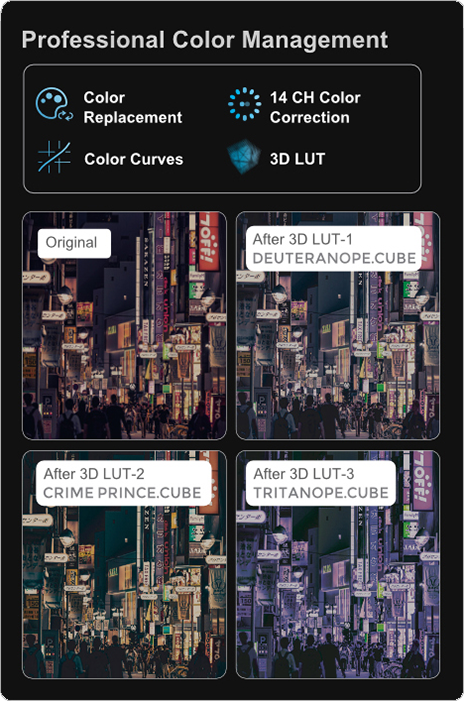

Color Management	Color Replacement, 14CH Color Correction, Color Curve, 3D LUT
No Rectangle Limitation	✓
HDR	HDR10 / HLG

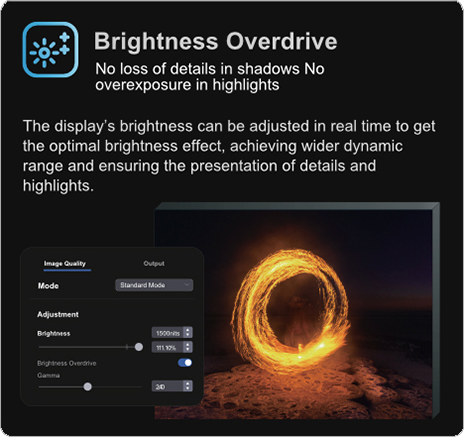

Brightness Overdrive	✓
Low Latency(<1ms)	✓

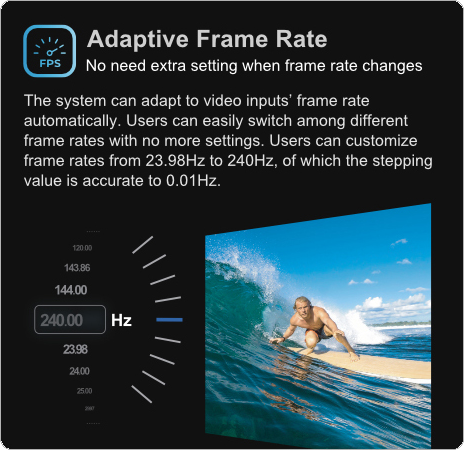

Adaptive Frame Rate	23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60 / 72 / 75 / 100 / 119.88 / 120 / 143.86 / 144 / 240Hz (*Exclusively supported by the custom firmwares of A10s Pro and IC.)
Multi Mode	✓
3D	✓

5G Receiving Card
Model	XA50 Pro
Bandwidth	5G
Connector	DDR3
Loading Capacity	512×1024
Image Booster 2.0	✓
Dynamic Booster	✓
Adaptive Thermal Compensation	✓
Multi-layer Full Grayscale Calibration	✓
Adaptive Frame Rate	✓
HDR (HDR10/HLG)	✓
Mapping	✓
`Monitoring (Temp. / Volt. / Bit Error)`	✓
RGB Parallel Data Group	40
Serial Data Groups	64 / 128

COEX

Name: Novastar COEX 5G Solution
Brand: Novastar
