Best for
LED cabinets and modules that need a Novastar receiving card matched to the sending / controller side of the system.

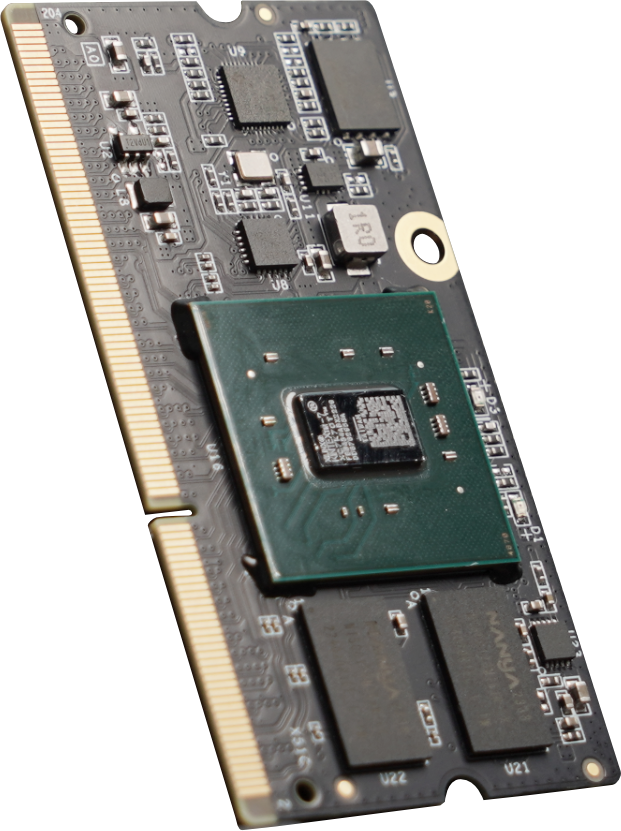

Premium 5G RV Card
XA50 Pro
XA50 Pro
-
-
Ultra-high Loading Capacity
A single receiving card drives 512×1024 pixels, enabling single-card cabinet configuration down to P0.6.
It's also a perfect fit for high bit depth (10/12 bit) and high frame rate applications up to 240HzFlexible Signal Transmission MethodsThe XA50 Pro supports a versatile signal transmission design, including the 5G Ethernet port, 5G Type-C interface, and 10G optical port.
Empower your creativity with flexible, customized cabinet designs.Guaranteed Heat Dissipation PerformanceThe XA50 Pro features a comprehensive heat dissipation design guide, enabling simplified thermal management for LED cabinets while improving heat diffusion efficiency and reducing operating temperatures.
End-to-End 5G Project AssuranceNovaStar ensures high-quality 5G solutions with end-to-end expertise, covering cabinet design help, screen testing, and on-site project escort.
NCP All-in-one PackageAll related files are packed into one for easier management and maintenance.
5G Receiving Card | |
Model | XA50 Pro |
Bandwidth | 5G |
Connector | DDR3 |
Loading Capacity | 512×1024 |
Image Booster 2.0 | ✓ |

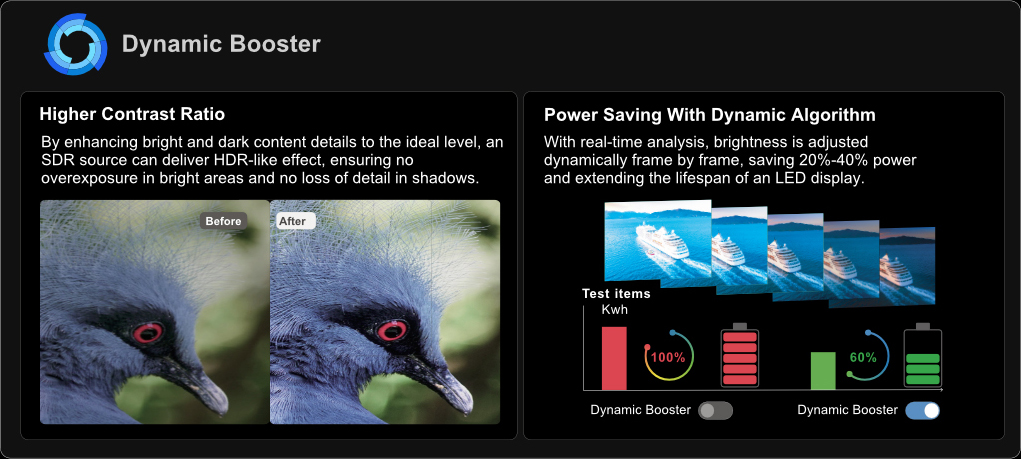

Dynamic Booster | ✓ |
Adaptive Thermal Compensation | ✓ |

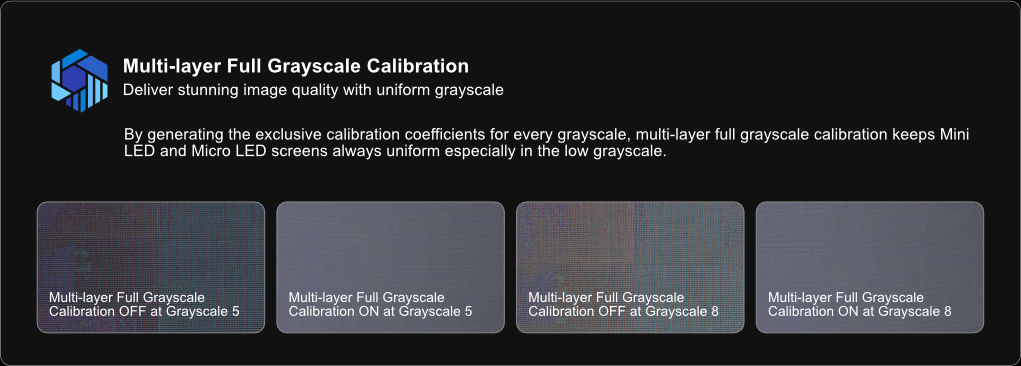

Multi-layer Full Grayscale Calibration | ✓ |

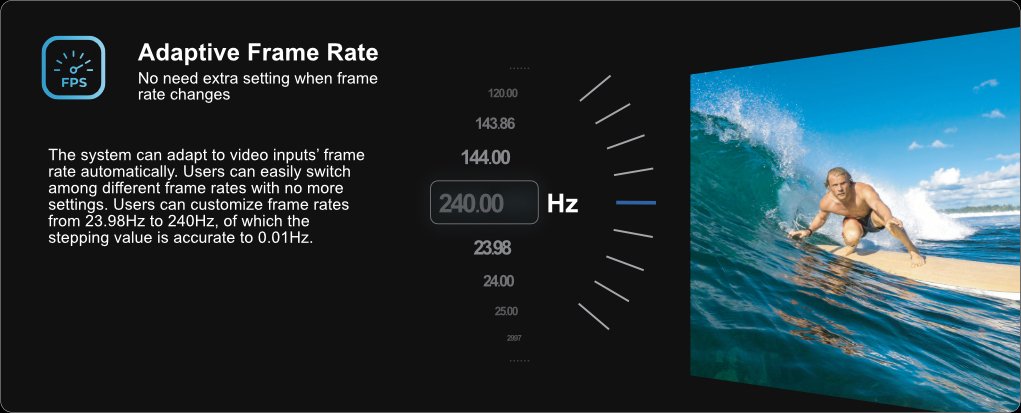

Adaptive Frame Rate | ✓ |
HDR (HDR10/HLG) | ✓ |
Mapping | ✓ |
Monitoring | ✓ |
RGB Parallel Data Group | ✓ |
Serial Data Groups | ✓ |
